AE91-AHHNU (1987)
Toyota Corolla
(8705- )4D,5D,V,WG

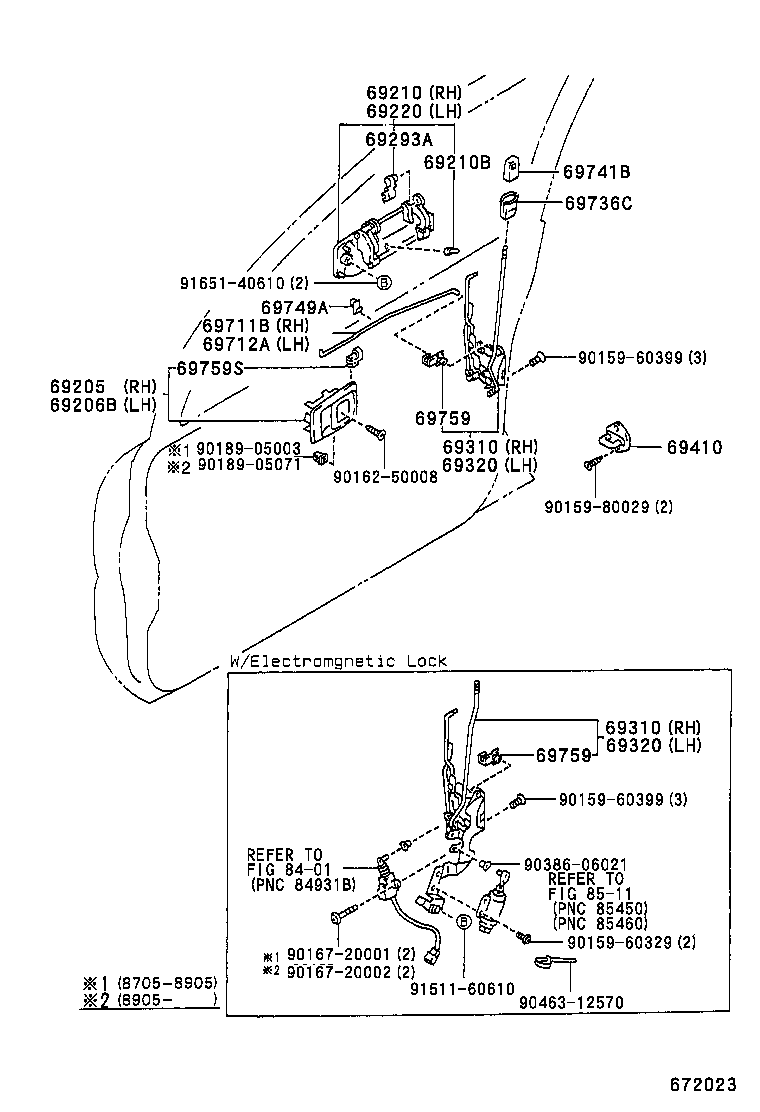

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69206-1004005 |
CE97,EE97,98;CE96,EE96..(DX,GL)..05S;AE91,95,CE90,EE90..(4D,5D)..(FXL,TX,XE) DARK BEIGE,TRIM4# |
1 | ||
| 69206-1004013 |
CE96,EE96..05S;AE91,95,CE90,95,97,EE90,97,98..(4D,5D,V,WG)..(DX,FXL,GL,L,LT,TX,XE) GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69205-1004005 |
CE97,EE97,98;CE96,EE96..(DX,GL)..05S;AE91,95,CE90,EE90..(4D,5D)..(FXL,TX,XE) DARK BEIGE,TRIM4# |
2 | ||
| 69205-1004013 |
CE96,EE96..05S;AE91,95,CE90,97,EE90,97,98..(4D,5D,V,WG)..(DX,FXL,GL,TX,XE) GRAY,TRIM1# |
2 | ||
| 69205-1004005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..(4D,5D)..(FXL,TX,XE) DARK BEIGE,TRIM4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12110 |
AE9#,CE9#,EE9#..DX,FXD,FXG,FXGT,FXL,FXZI,GL,STD,TX,XE |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-12110 |
AE9#,CE9#,EE9#..DX,FXD,FXG,FXGT,FXL,FXZI,GL,STD,TX,XE |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
AE9#,CE9#,EE9# 右側 |
1 | ||
| 69293-12040 |
AE9#,CE9#,EE9# 左側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12220 |
AE91..5D..EFI;AE91..(4D,5D,WG)..CBR;AE92,95,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12220 |
AE91..5D..EFI;AE91..(4D,5D,WG)..CBR;AE92,95,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12240 |
AE91..5D..EFI;AE91..(4D,5D,WG)..CBR;AE92,95,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12240 |
AE91..5D..EFI;AE91..(4D,5D,WG)..CBR;AE92,95,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE9#,CE9#,EE9# |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-12100 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-12110 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-12030 |
AE9#,CE90,97,EE90,97..(4D,5D,WG)..(FXG,FXL,FXZI,G,GL,GT,SE,TX,XE) |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-90K0003 |
AE9#,CE9#,EE9#..4D,5D,V,WG SHADOW GRAY,TRIM1# |
2 | ||
| 69741-90K0005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE) DARK BEIGE,TRIM4# |
2 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20010 |
AE9#,CE9#,EE9# |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE9#,CE90,97,EE90,97..4D,5D,WG LH,YELLOW |
1 | ||
| 69759-20050 |
AE9#,CE90,97,EE90,97..4D,5D,WG RH,BROWN |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE9#,CE90,97,EE90,97..4D,5D,WG LH,YELLOW |
1 | ||
| 69759-20050 |
AE9#,CE90,97,EE90,97..4D,5D,WG RH,BROWN |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-20060 |
CE96,EE96..05S;AE9#,CE90,97,EE90,97,98..4D,5D,V,WG 右側 |
2 | ||
| 69759-20070 |
AE9#,CE9#,EE9#..4D,5D,V,WG 左側 |
2 | ||
| Common parts | ||||
| 90159-60329 | ||||
| 90159-60399 | ||||
| 90159-80029 | ||||
| 90162-50008 | ||||
| 90167-20001 | ||||
| 90167-20002 | ||||
| 90189-05003 | ||||
| 90189-05071 | ||||
| 90386-06021 | ||||
| 90463-12570 | ||||
| 91511-60610 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8511 | ||||
