AE91-AHHNU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705-8908)4AF,5AF

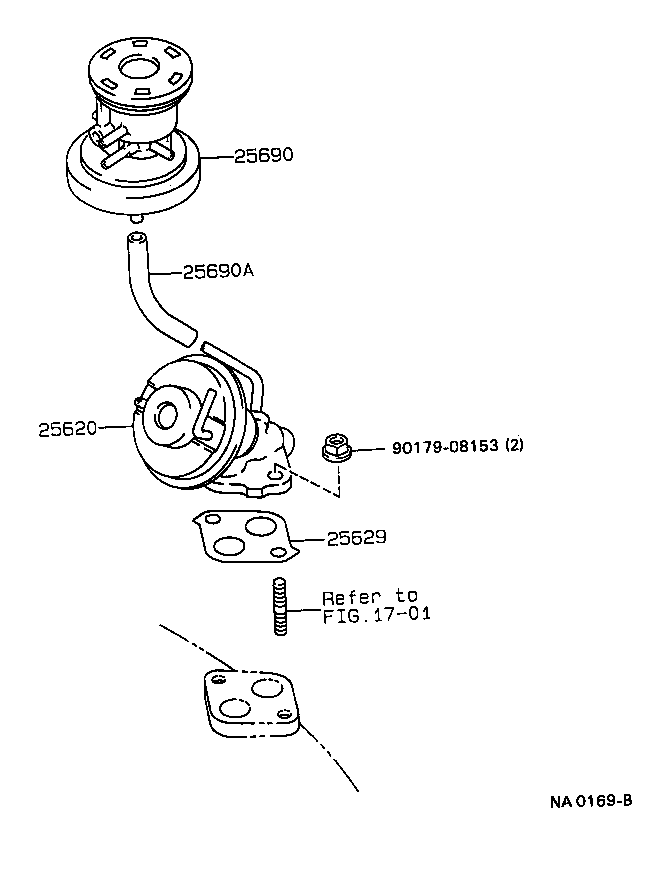

Click highlighted areas on diagram

diagram 1701 25620 25629 25690 25690A 9017908153
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-15320

4AF,5AF..AE91,95

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-15020

4AF,5AF..AE91,95

 1
25627-16020

4AF,5AF..AE91,95

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-15200

5AF..AE91

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11017

4AF,5AF..AE91,95

 1
Common parts
90179-08153
Linked diagrams
1701
