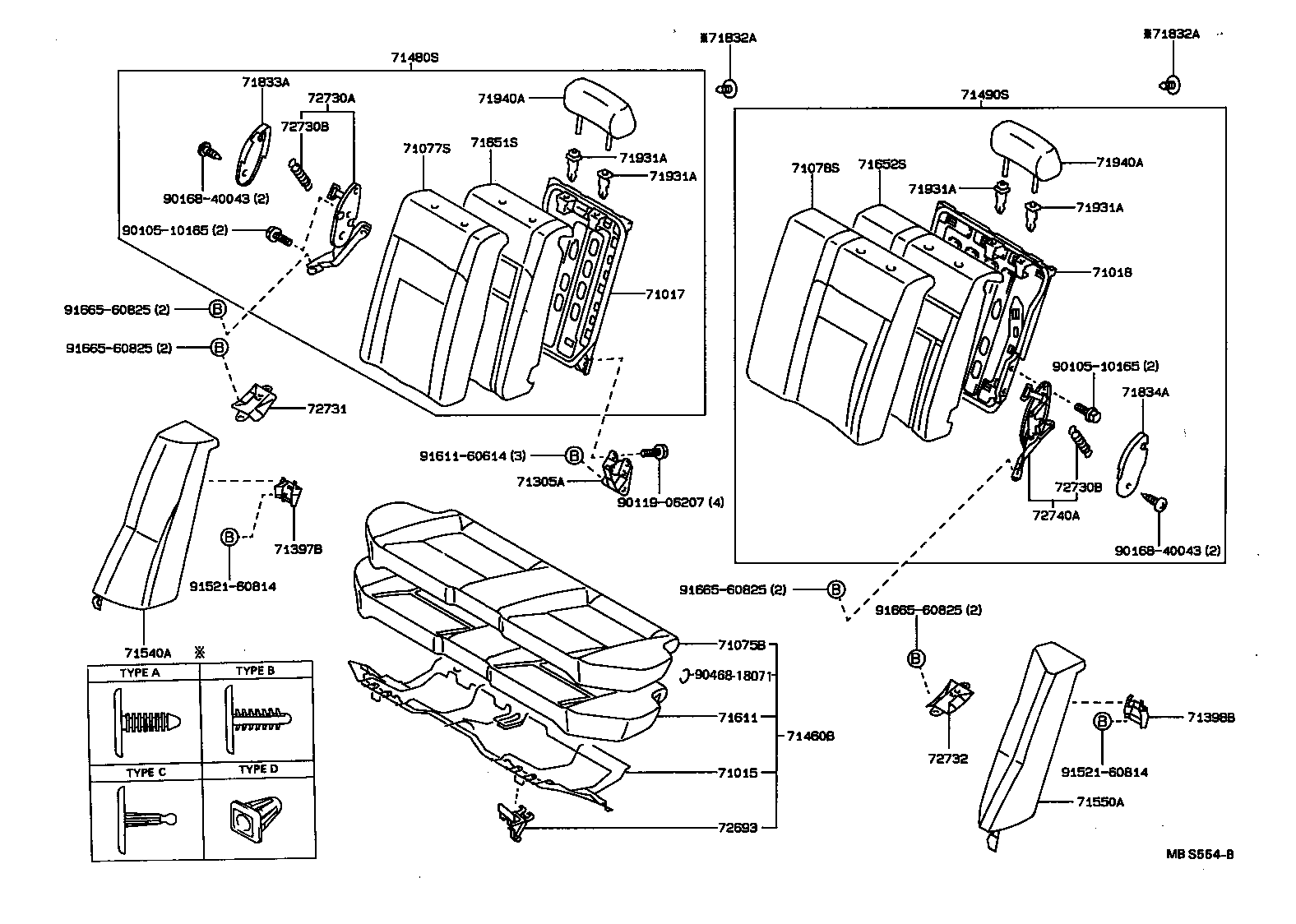

AE91-AGPGU (1987)
Toyota Corolla
(8705- )FXG,FXGT,FXZI,FXZS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12300 |
AE91,92,EE90..3D,5D |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12270 |
AE91,92,EE90..FXD,FXGTV,FXL,FXV,FXVS,G,LT |
1 | ||
| 71017-12280 |
AE91,92..FXG,FXGT,FXZI,FXZS |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12060 |
AE91,92,EE90..FXD,FXGTV,FXL,FXV,FXVS,G,LT |
1 | ||
| 71018-12070 |
AE91,92..FXG,FXGT,FXZI,FXZS |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1E09003 |
AE91..FXG,FXZI SHADOW GRAY,TRIM1# |
1 | ||
| 71075-1E09005 |
AE91..FXG,FXZI DARK BEIGE,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1H65003 |
AE91..FXG,FXZI SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1H65005 |
AE91..FXG,FXZI DARK BEIGE,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1A36003 |
AE91..FXG,FXZI SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1A36005 |
AE91..FXG,FXZI DARK BEIGE,TRIM4# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12060 |
AE91,92,EE90..FXD,FXL,G,GT |
1 | ||
| 71305-12060 |
AE91,EE90..FXD,FXL,G |
1 | ||
| 71305-12070 |
AE91,92..FXG,FXGT,FXZI,FXZS |
1 | ||
| 71397B - HOLDER, REAR SEAT BACK, RH | ||||
| 71397-12020 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 71397-12020 |
AE91,92..FXG,FXGT,FXZI,GT |
1 | ||
| 71398B - HOLDER, REAR SEAT BACK, LH | ||||
| 71398-12020 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 71398-12020 |
AE91,92..FXG,FXGT,FXZI,GT |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1E12003 |
AE91..FXG,FXZI ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E12005 |
AE91..FXG,FXZI ***,DARK BEIGE,TRIM4# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1H75003 |
AE91..FXG,FXZI ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1H75005 |
AE91..FXG,FXZI ***,DARK BEIGE,TRIM4# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1A43003 |
AE91..FXG,FXZI ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-1A43005 |
AE91..FXG,FXZI ***,DARK BEIGE,TRIM4# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-1208005 |
AE91..3D..(FXG,FXZI) DARK BEIGE,TRIM4# |
1 | ||
| 71540-1208003 |
AE91..3D..(FXG,FXZI) SHADW GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-1208005 |
AE91..3D..(FXG,FXZI) DARK BEIGE,TRIM4# |
1 | ||
| 71550-1208003 |
AE91..3D..(FXG,FXZI) SHADOW GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12560 |
AE91,92,EE90..3D,5D |
1 | ||
| 71611-12540 |
AE91..G |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12610 |
AE91,92,EE90..FXD,FXGTV,FXL,FXV,FXVS,G,LT |
1 | ||
| 71651-12620 |
AE91,92..FXG,FXGT,FXZI,FXZS |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12420 |
AE91,92,EE90..FXD,FXGTV,FXL,FXV,FXVS,G,LT |
1 | ||
| 71652-12430 |
AE91,92..FXG,FXGT,FXZI,FXZS |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0704903 |
AE91,EE90..FXD,FXL,G GRAY,TRIM1#,ﾀｲﾌﾟ B |
8 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0704903 |
AE91,EE90..FXD,FXL,G GRAY,TRIM1#,ﾀｲﾌﾟ B |
8 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-1203003 |
AE91,92..FXG,FXGT,FXZI,FXZS SHADOW GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-1203003 |
AE91,92..FXG,FXGT,FXZI,FXZS SHADOW GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1001010 |
AE91..FXG,FXZI ﾛｯｸ無,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006010 |
AE91..FXG,FXZI ﾛｯｸ付,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006033 |
AE91,92..FXG,FXGT,FXZI,FXZS ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001033 |
AE91..FXG,FXZI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1001010 |
AE91..FXG,FXZI ﾛｯｸ無,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006010 |
AE91..FXG,FXZI ﾛｯｸ付,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006033 |
AE91,92..FXG,FXGT,FXZI,FXZS ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001033 |
AE91..FXG,FXZI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1001010 |
AE91..FXG,FXZI ﾛｯｸ無,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006010 |
AE91..FXG,FXZI ﾛｯｸ付,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006033 |
AE91,92..FXG,FXGT,FXZI,FXZS ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001033 |
AE91..FXG,FXZI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-1001010 |
AE91..FXG,FXZI ﾛｯｸ無,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006010 |
AE91..FXG,FXZI ﾛｯｸ付,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006033 |
AE91,92..FXG,FXGT,FXZI,FXZS ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001033 |
AE91..FXG,FXZI ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-1207005 |
AE91..FXG,FXZI DARK BEIGE,TRIM4# |
2 | ||
| 71940-1207003 |
AE91..FXG,FXZI SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-1207005 |
AE91..FXG,FXZI DARK BEIGE,TRIM4# |
2 | ||
| 71940-1207003 |
AE91..FXG,FXZI SHADOW GRAY,TRIM1# |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-1204003 |
AE91,92..FXG,FXGT,FXZI,FXZS SHADOW GRAY,TRIM1# |
1 | ||
| 72730B - SPRING, TENSION(FOR REAR SEAT RECLINING ADJUSTER) | ||||
| 90506-14116 |
AE91,92..FXG,FXGT,FXZI,FXZS |
2 | ||
| 72730B - SPRING, TENSION(FOR REAR SEAT RECLINING ADJUSTER) | ||||
| 90506-14116 |
AE91,92..FXG,FXGT,FXZI,FXZS |
2 | ||
| 72731 - BRACKET, REAR SEAT RECLINING, RH | ||||
| 72731-12020 |
AE91,92..FXG,FXGT,FXZI,FXZS |
1 | ||
| 72732 - BRACKET, REAR SEAT RECLINING, LH | ||||
| 72732-12020 |
AE91,92..FXG,FXGT,FXZI,FXZS |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-1204003 |
AE91,92..FXG,FXGT,FXZI,FXZS SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-10165 | ||||
| 90119-06207 | ||||
| 90168-40043 | ||||
| 90468-18071 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
| 91665-60825 | ||||
