AE91-AGPGU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D

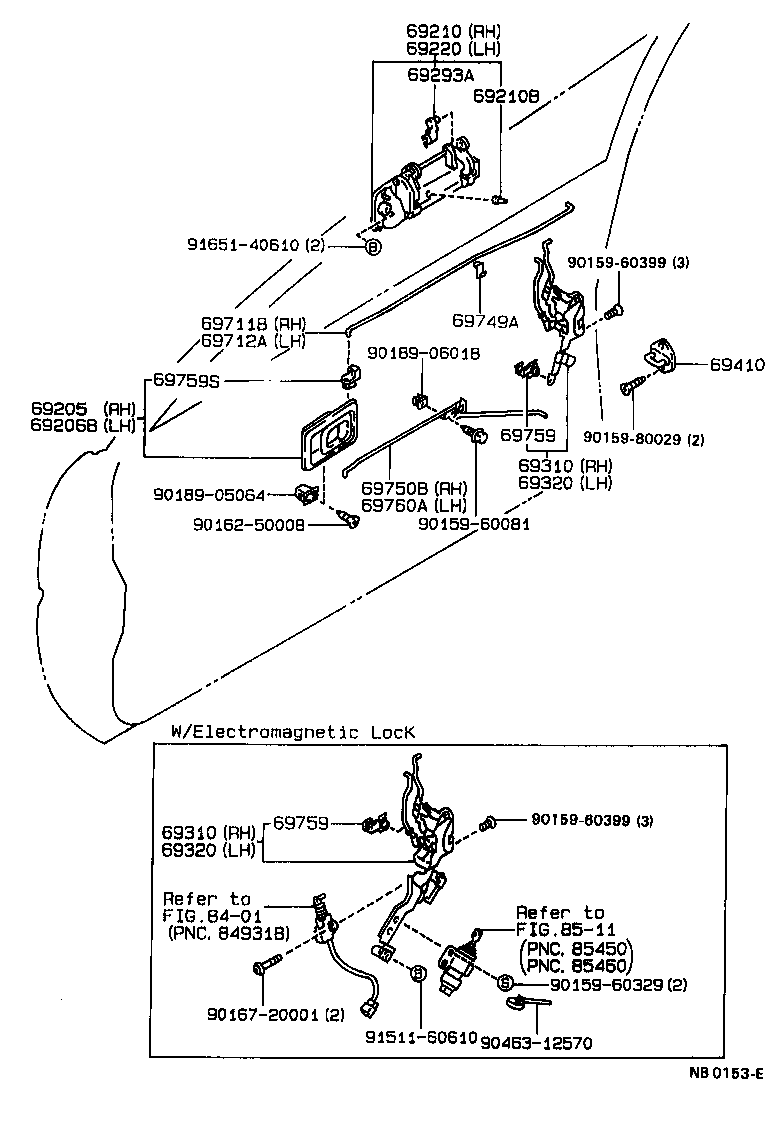

Click highlighted areas on diagram

diagram 69205 69206B 69210 69210B 69220 69293A 69310 69310 69320 69320 69410 69711B 69712A 69749A 69750B 69759 69759 69759S 69760A 8401 8511 9015960081 9015960329 9015960399 9015960399 9015980029 9016250008 9016720001 9018905064 9018906018 9046312570 9151160610 9165140610
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1605003

AE91,92,EE90..3D

SHADOW GRAY,TRIM1#

 1
69205-1605005

AE91,EE90..3D

DARK BEIGE,TRIM4#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1605005

AE91,EE90..3D

DARK BEIGE,TRIM4#

 1
69206-1605003

AE91,92,EE90..3D

SHADOW GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-12100

AE91,95,CE90..(G,SE)..(CBR,DSL)

 1
69210-12110

AE9#,CE9#,EE9#..DX,FXD,FXG,FXGT,FXL,FXZI,GL,STD,TX,XE

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03014

AE91,92,EE90..3D

 2
90541-04014

AE91,92,EE90..3D

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-12100

AE91,95,CE90..(G,SE)..(CBR,DSL)

 1
69220-12110

AE9#,CE9#,EE9#..DX,FXD,FXG,FXGT,FXL,FXZI,GL,STD,TX,XE

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030

AE9#,CE9#,EE9#

右側

 1
69293-12040

AE9#,CE9#,EE9#

左側

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12310

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)

 1
69310-12290

AE91,92,EE90..3D

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12310

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)

 1
69310-12290

AE91,92,EE90..3D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12300

AE91,92,EE90..3D

 1
69320-12310

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12300

AE91,92,EE90..3D

 1
69320-12310

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

AE9#,CE9#,EE9#

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-12110

AE91,92,EE90..3D

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-12120

AE91,92,EE90..3D

 1
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-20010

AE9#,CE9#,EE9#

 2
69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-12020

AE91,92,EE90..3D

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20100

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),RH,RED

 3
69759-20040

AE91,92,EE90..3D

LH,YELLOW

 2
69759-20110

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),LH,BLACK

 3
69759-20050

AE91,92,EE90..3D

RH,BROWN

 2
69759-20100

AE91,92,EE90..3D

RH,RED

 1
69759-20110

AE91,92,EE90..3D

LH,BLACK

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20100

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),RH,RED

 3
69759-20040

AE91,92,EE90..3D

LH,YELLOW

 2
69759-20110

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),LH,BLACK

 3
69759-20050

AE91,92,EE90..3D

RH,BROWN

 2
69759-20100

AE91,92,EE90..3D

RH,RED

 1
69759-20110

AE91,92,EE90..3D

LH,BLACK

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-22040

AE91,92,EE90..3D

右側

 2
69759-22050

AE91,92,EE90..3D

左側

 2
69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH
69760-12020

AE91,92,EE90..3D

 1
Common parts
90159-60081
90159-60329
90159-60399
90159-80029
90162-50008
90167-20001
90189-05064
90189-06018
90463-12570
91511-60610
91651-40610
Linked diagrams
8401
8511
