AE91-AGPGK (1987)
Toyota Corolla
(8705- )AE91,95..EFI,EFIS

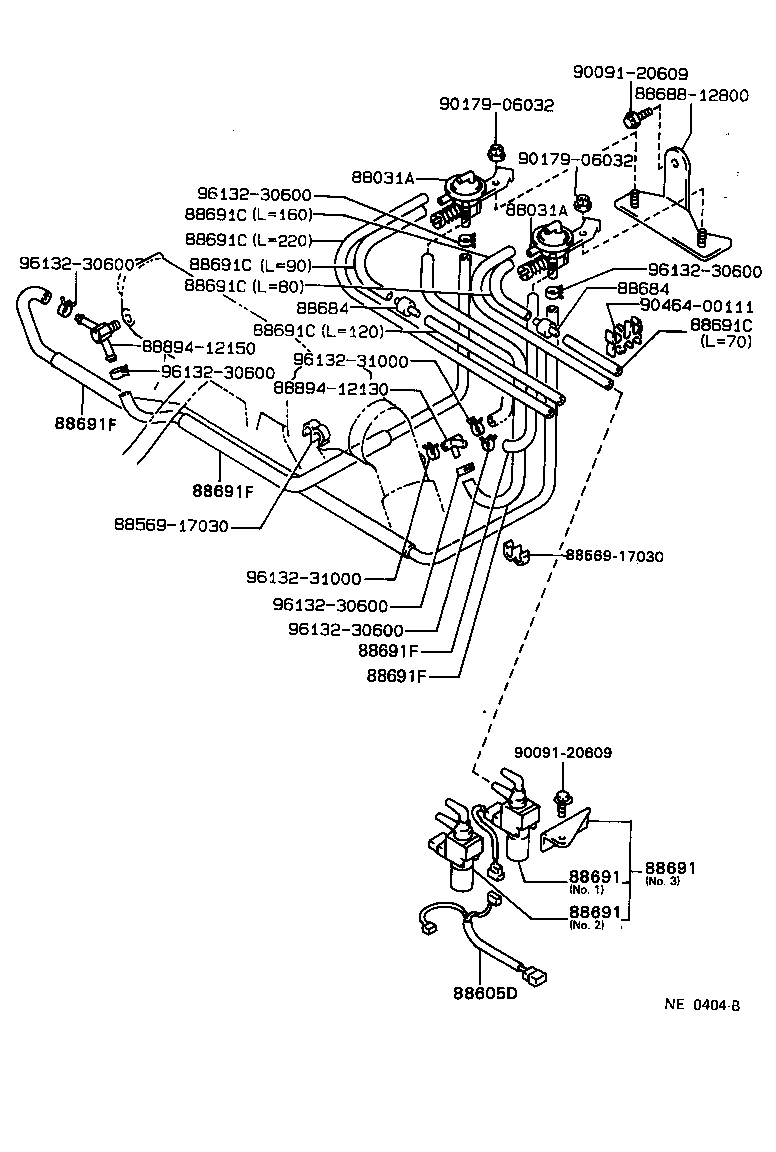

AIR CONDITIONER IDLE UP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR | ||||
| 88606-12020 |
AE91..FXZI |
2 | ||
| 88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR | ||||
| 88606-12020 |
AE91..FXZI |
2 | ||
| 88605D - WIRE, AIR CONDITIONER | ||||
| 88605-1A860 |
AE95..TX,XE;AE91..(3FC,4F,5F)..(DX,FXG,FXL,G,TX,XE) |
1 | ||
| 88605-1A770 |
AE91..EFI |
1 | ||
| 88605-1E140 |
AE91,95..FXG,G,SE ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88605-1A860 |
AE91,95..SE;AE91..4FC..(FXG,G) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88684 - VALVE, VACUUM | ||||
| 88684-22010 |
AE91..EFI |
2 | ||
| 88684 - VALVE, VACUUM | ||||
| 88684-22010 |
AE91..EFI |
2 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88691-10010 |
AE91..EFI NO.2 |
1 | ||
| 88691-10010 |
AE91..3FC,4F NO.2 |
1 | ||
| 88691-12140 |
AE91 NO.1 |
1 | ||
| 88690-12470 |
AE91..(3FC,4F,5F)..(DX,FXG,FXL,G,TX,XE) NO.3 |
1 | ||
| 88691-12140 |
AE91,95..4FC..(FXG,G,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.1 |
1 | ||
| 88691-12140 |
AE91..DX,FXL,FXZI,TX,XE NO.1 |
1 | ||
| 88691-10010 |
AE95..4FC..XE;AE91..(3FC,4FC,5F)..(FXL,FXZI,TX,XE) NO.2 |
1 | ||
| 88691-10010 |
AE91,95..4FC..(FXG,G,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.2 |
1 | ||
| 88690-12470 |
AE91,95..4FC..(FXG,G,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.3 |
1 | ||
| 88691-12140 |
AE95..4FC..XE;AE91..(3FC,4FC,5F)..(FXL,FXZI,TX,XE) NO.1 |
1 | ||
| 88691-12150 |
AE91,95..FXG,G,SE ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.1 |
1 | ||
| 88690-12730 |
AE91..FXZI ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.3 |
1 | ||
| 88691-12150 |
AE91..4FC..EFI;AE91,95..5F..(FXZI,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.1 |
1 | ||
| 88691-10010 |
AE91..(3FC,4FC,5F)..(DX,FXZI) NO.2 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88691-10010 |
AE91..EFI NO.2 |
1 | ||
| 88691-10010 |
AE91..3FC,4F NO.2 |
1 | ||
| 88691-12140 |
AE91 NO.1 |
1 | ||
| 88690-12470 |
AE91..(3FC,4F,5F)..(DX,FXG,FXL,G,TX,XE) NO.3 |
1 | ||
| 88691-12140 |
AE91,95..4FC..(FXG,G,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.1 |
1 | ||
| 88691-12140 |
AE91..DX,FXL,FXZI,TX,XE NO.1 |
1 | ||
| 88691-10010 |
AE95..4FC..XE;AE91..(3FC,4FC,5F)..(FXL,FXZI,TX,XE) NO.2 |
1 | ||
| 88691-10010 |
AE91,95..4FC..(FXG,G,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.2 |
1 | ||
| 88690-12470 |
AE91,95..4FC..(FXG,G,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.3 |
1 | ||
| 88691-12140 |
AE95..4FC..XE;AE91..(3FC,4FC,5F)..(FXL,FXZI,TX,XE) NO.1 |
1 | ||
| 88691-12150 |
AE91,95..FXG,G,SE ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.1 |
1 | ||
| 88690-12730 |
AE91..FXZI ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.3 |
1 | ||
| 88691-12150 |
AE91..4FC..EFI;AE91,95..5F..(FXZI,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.1 |
1 | ||
| 88691-10010 |
AE91..(3FC,4FC,5F)..(DX,FXZI) NO.2 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88691-10010 |
AE91..EFI NO.2 |
1 | ||
| 88691-10010 |
AE91..3FC,4F NO.2 |
1 | ||
| 88691-12140 |
AE91 NO.1 |
1 | ||
| 88690-12470 |
AE91..(3FC,4F,5F)..(DX,FXG,FXL,G,TX,XE) NO.3 |
1 | ||
| 88691-12140 |
AE91,95..4FC..(FXG,G,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.1 |
1 | ||
| 88691-12140 |
AE91..DX,FXL,FXZI,TX,XE NO.1 |
1 | ||
| 88691-10010 |
AE95..4FC..XE;AE91..(3FC,4FC,5F)..(FXL,FXZI,TX,XE) NO.2 |
1 | ||
| 88691-10010 |
AE91,95..4FC..(FXG,G,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.2 |
1 | ||
| 88690-12470 |
AE91,95..4FC..(FXG,G,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.3 |
1 | ||
| 88691-12140 |
AE95..4FC..XE;AE91..(3FC,4FC,5F)..(FXL,FXZI,TX,XE) NO.1 |
1 | ||
| 88691-12150 |
AE91,95..FXG,G,SE ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.1 |
1 | ||
| 88690-12730 |
AE91..FXZI ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.3 |
1 | ||
| 88691-12150 |
AE91..4FC..EFI;AE91,95..5F..(FXZI,SE) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),NO.1 |
1 | ||
| 88691-10010 |
AE91..(3FC,4FC,5F)..(DX,FXZI) NO.2 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90445-08198 |
AE91..3FC,4F 長さ=1100 |
1 | ||
| 90445-08246 |
AE91..3FC,4F 長さ=1150 |
1 | ||
| 90999-92006 |
AE91,95..4FC..(FXG,G,SE) 長さ=1300 |
1 | ||
| 95411-19930 |
AE91,95..SE;AE91..4FC..(FXG,G) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10280 |
AE91,95..4FC..(FXG,G,SE) *H,長さ=800,ﾏｰｸ=#2 |
1 | ||
| 95411-10239 |
AE91,95..4FC..(FXG,G,SE) *H,L=390,ﾏｰｸ=#2 |
1 | ||
| 95411-19930 |
AE95..TX,XE;AE91..(3FC,4F,5F)..(DX,FXG,FXL,G,TX,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10236 |
AE91,95..4FC..(FXG,G,SE) *H,L=360,ﾏｰｸ=#2 |
1 | ||
| 90999-92002 |
AE9# *H,L=300 |
1 | ||
| 90999-92003 |
AE9# 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90445-08198 |
AE91..3FC,4F 長さ=1100 |
1 | ||
| 90445-08246 |
AE91..3FC,4F 長さ=1150 |
1 | ||
| 90999-92006 |
AE91,95..4FC..(FXG,G,SE) 長さ=1300 |
1 | ||
| 95411-19930 |
AE91,95..SE;AE91..4FC..(FXG,G) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10280 |
AE91,95..4FC..(FXG,G,SE) *H,長さ=800,ﾏｰｸ=#2 |
1 | ||
| 95411-10239 |
AE91,95..4FC..(FXG,G,SE) *H,L=390,ﾏｰｸ=#2 |
1 | ||
| 95411-19930 |
AE95..TX,XE;AE91..(3FC,4F,5F)..(DX,FXG,FXL,G,TX,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10236 |
AE91,95..4FC..(FXG,G,SE) *H,L=360,ﾏｰｸ=#2 |
1 | ||
| 90999-92002 |
AE9# *H,L=300 |
1 | ||
| 90999-92003 |
AE9# 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90445-08198 |
AE91..3FC,4F 長さ=1100 |
1 | ||
| 90445-08246 |
AE91..3FC,4F 長さ=1150 |
1 | ||
| 90999-92006 |
AE91,95..4FC..(FXG,G,SE) 長さ=1300 |
1 | ||
| 95411-19930 |
AE91,95..SE;AE91..4FC..(FXG,G) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10280 |
AE91,95..4FC..(FXG,G,SE) *H,長さ=800,ﾏｰｸ=#2 |
1 | ||
| 95411-10239 |
AE91,95..4FC..(FXG,G,SE) *H,L=390,ﾏｰｸ=#2 |
1 | ||
| 95411-19930 |
AE95..TX,XE;AE91..(3FC,4F,5F)..(DX,FXG,FXL,G,TX,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10236 |
AE91,95..4FC..(FXG,G,SE) *H,L=360,ﾏｰｸ=#2 |
1 | ||
| 90999-92002 |
AE9# *H,L=300 |
1 | ||
| 90999-92003 |
AE9# 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90445-08198 |
AE91..3FC,4F 長さ=1100 |
1 | ||
| 90445-08246 |
AE91..3FC,4F 長さ=1150 |
1 | ||
| 90999-92006 |
AE91,95..4FC..(FXG,G,SE) 長さ=1300 |
1 | ||
| 95411-19930 |
AE91,95..SE;AE91..4FC..(FXG,G) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10280 |
AE91,95..4FC..(FXG,G,SE) *H,長さ=800,ﾏｰｸ=#2 |
1 | ||
| 95411-10239 |
AE91,95..4FC..(FXG,G,SE) *H,L=390,ﾏｰｸ=#2 |
1 | ||
| 95411-19930 |
AE95..TX,XE;AE91..(3FC,4F,5F)..(DX,FXG,FXL,G,TX,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10236 |
AE91,95..4FC..(FXG,G,SE) *H,L=360,ﾏｰｸ=#2 |
1 | ||
| 90999-92002 |
AE9# *H,L=300 |
1 | ||
| 90999-92003 |
AE9# 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90445-08198 |
AE91..3FC,4F 長さ=1100 |
1 | ||
| 90445-08246 |
AE91..3FC,4F 長さ=1150 |
1 | ||
| 90999-92006 |
AE91,95..4FC..(FXG,G,SE) 長さ=1300 |
1 | ||
| 95411-19930 |
AE91,95..SE;AE91..4FC..(FXG,G) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10280 |
AE91,95..4FC..(FXG,G,SE) *H,長さ=800,ﾏｰｸ=#2 |
1 | ||
| 95411-10239 |
AE91,95..4FC..(FXG,G,SE) *H,L=390,ﾏｰｸ=#2 |
1 | ||
| 95411-19930 |
AE95..TX,XE;AE91..(3FC,4F,5F)..(DX,FXG,FXL,G,TX,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10236 |
AE91,95..4FC..(FXG,G,SE) *H,L=360,ﾏｰｸ=#2 |
1 | ||
| 90999-92002 |
AE9# *H,L=300 |
1 | ||
| 90999-92003 |
AE9# 長さ=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90445-08198 |
AE91..3FC,4F 長さ=1100 |
1 | ||
| 90445-08246 |
AE91..3FC,4F 長さ=1150 |
1 | ||
| 90999-92006 |
AE91,95..4FC..(FXG,G,SE) 長さ=1300 |
1 | ||
| 95411-19930 |
AE91,95..SE;AE91..4FC..(FXG,G) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10280 |
AE91,95..4FC..(FXG,G,SE) *H,長さ=800,ﾏｰｸ=#2 |
1 | ||
| 95411-10239 |
AE91,95..4FC..(FXG,G,SE) *H,L=390,ﾏｰｸ=#2 |
1 | ||
| 95411-19930 |
AE95..TX,XE;AE91..(3FC,4F,5F)..(DX,FXG,FXL,G,TX,XE) *H,L=300,ﾏｰｸ=#* |
1 | ||
| 95411-10236 |
AE91,95..4FC..(FXG,G,SE) *H,L=360,ﾏｰｸ=#2 |
1 | ||
| 90999-92002 |
AE9# *H,L=300 |
1 | ||
| 90999-92003 |
AE9# 長さ=600 |
1 | ||
| 88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4 | ||||
| 88689-12160 |
AE91..EFI 長さ=960 |
1 | ||
| 88689-12150 |
AE91..EFI 長さ=720 |
1 | ||
| 88689-12110 |
AE91..(DX,FXZI)..EFI 長さ=440 |
1 | ||
| 88689-12120 |
AE91..(DX,FXZI)..EFI 長さ=320 |
1 | ||
| 88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4 | ||||
| 88689-12160 |
AE91..EFI 長さ=960 |
1 | ||
| 88689-12150 |
AE91..EFI 長さ=720 |
1 | ||
| 88689-12110 |
AE91..(DX,FXZI)..EFI 長さ=440 |
1 | ||
| 88689-12120 |
AE91..(DX,FXZI)..EFI 長さ=320 |
1 | ||
| 88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4 | ||||
| 88689-12160 |
AE91..EFI 長さ=960 |
1 | ||
| 88689-12150 |
AE91..EFI 長さ=720 |
1 | ||
| 88689-12110 |
AE91..(DX,FXZI)..EFI 長さ=440 |
1 | ||
| 88689-12120 |
AE91..(DX,FXZI)..EFI 長さ=320 |
1 | ||
| 88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4 | ||||
| 88689-12160 |
AE91..EFI 長さ=960 |
1 | ||
| 88689-12150 |
AE91..EFI 長さ=720 |
1 | ||
| 88689-12110 |
AE91..(DX,FXZI)..EFI 長さ=440 |
1 | ||
| 88689-12120 |
AE91..(DX,FXZI)..EFI 長さ=320 |
1 | ||
| Common parts | ||||
| 88569-17030 | ||||
| 88688-12800 | ||||
| 88894-12130 | ||||
| 88894-12150 | ||||
| 90091-20609 | ||||
| 90179-06032 | ||||
| 90464-00111 | ||||
| 96132-30600 | ||||
| 96132-31000 | ||||
