AE91-AGPGK (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

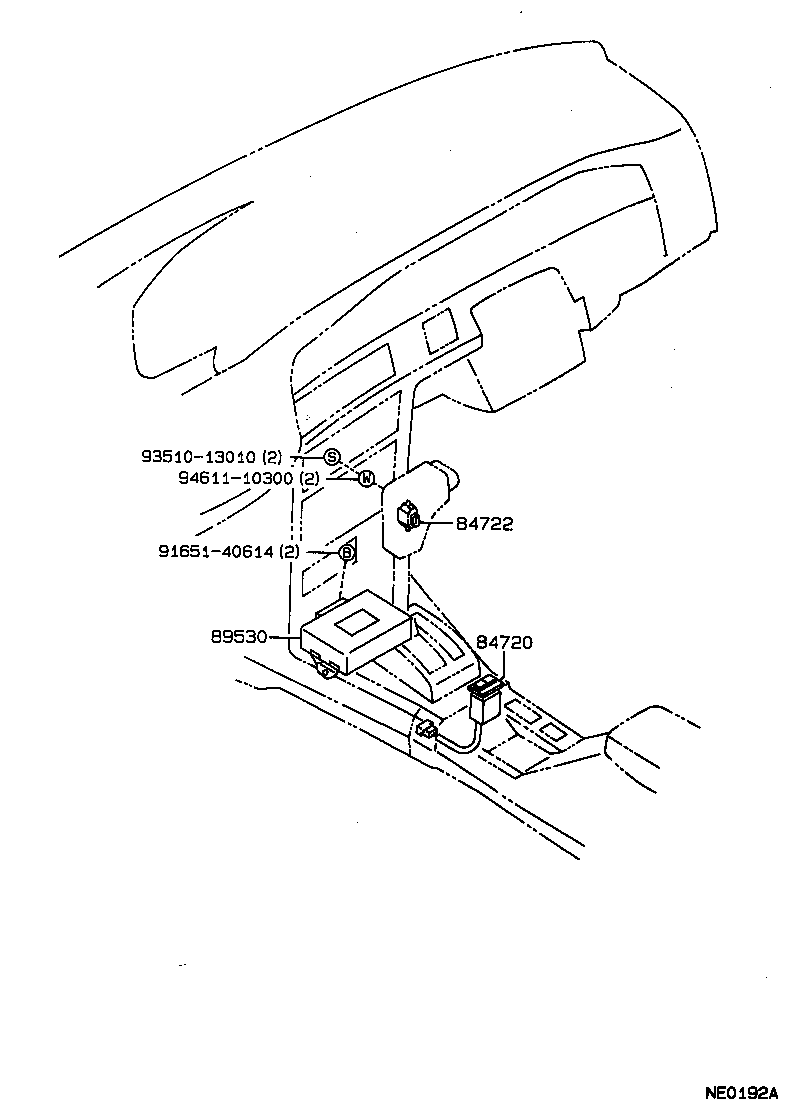

ILLUST NO. 2 OF 2(8705-8905)4FC ; (8905-8908)CE96..4FC

Click highlighted areas on diagram

diagram 84720 84722 89530 9165140614 9351013010 9461110300
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-1202003

AE91..4FC..EFI

GRAY,TRIM1#

 1
84722-1202005

AE91..4FC..EFI

BEIGE,TRIM4#

 1
Common parts
91651-40614
93510-13010
94611-10300

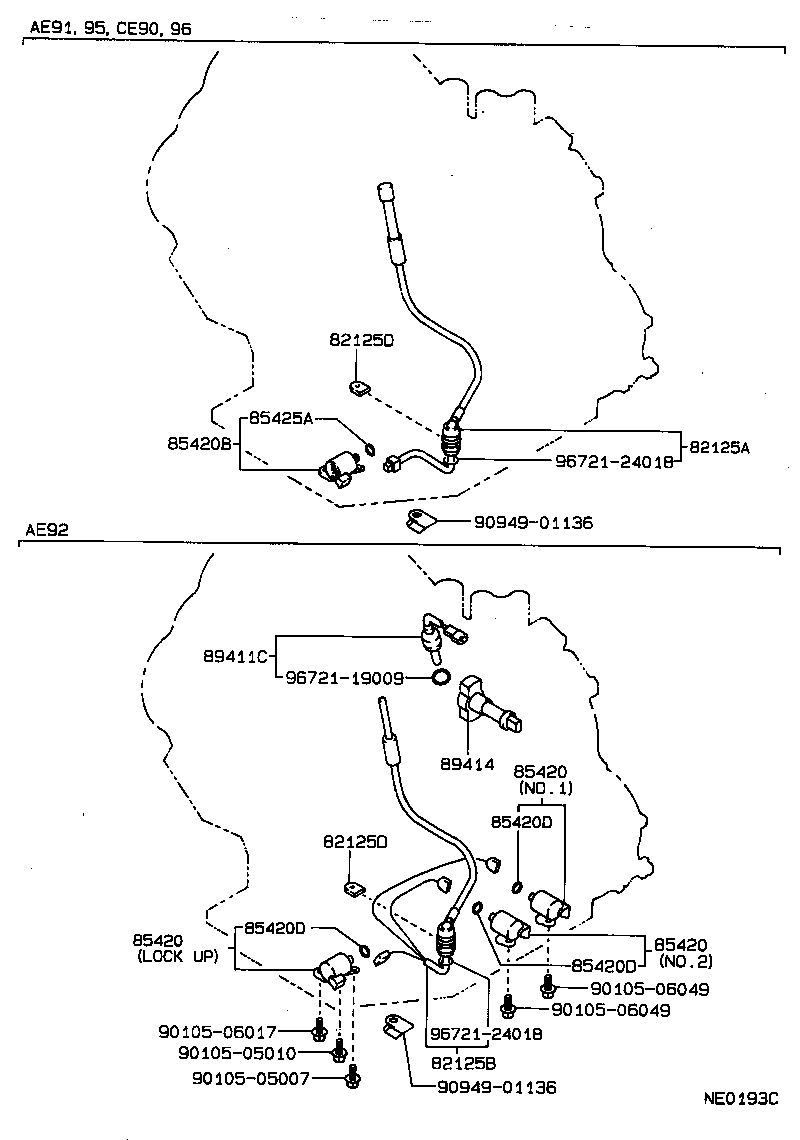

ILLUST NO. 1 OF 2(8705-8905)4FC ; (8905-8908)CE96..4FC

Click highlighted areas on diagram

diagram 82125A 82125B 82125D 82125D 85420 85420 85420 85420B 85420D 85420D 85420D 85425A 89411C 89414 9010505007 9010505010 9010506017 9010506049 9010506049 9094901136 9094901136 9672119009 9672124018 9672124018
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-20100

AE95..4FC..CBR;AE91,CE90,96,97..4FC

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

AE9#,CE90,96,97..4FC

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

AE9#,CE90,96,97..4FC

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-10010

AE91,95,CE9#..4FC

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-06004

AE91,95,CE90,96,97..4FC

 1
Common parts
90105-05007
90105-05010
90105-06017
90105-06049
90949-01136
96721-19009
96721-24018
