AE91-AGPGK (1987)
Toyota Corolla
ILLUST NO. 1 OF 3(8705- )FXG,FXV,G,LT,SE,XE
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ,ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E080 |
AE92..5F;AE91..FXZI NO.1 |
1 | ||
| 83247-1E480 |
AE95..5F..SE;AE91..FXG,G,SE NO.1 |
1 | ||
| 83247-1E740 |
AE91..FXZI,FXZS NO.1 |
1 | ||
| 83247-1E760 |
AE91..FXZI,FXZS NO.2 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E080 |
AE92..5F;AE91..FXZI NO.1 |
1 | ||
| 83247-1E480 |
AE95..5F..SE;AE91..FXG,G,SE NO.1 |
1 | ||
| 83247-1E740 |
AE91..FXZI,FXZS NO.1 |
1 | ||
| 83247-1E760 |
AE91..FXZI,FXZS NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A840 |
AE91,95..FXG,G,SE |
1 | ||
| 83110-1E080 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A090 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 83132-1A290 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(*DS) |
1 | ||
| 83132-1A250 |
AE91,95,CE90,95..(FXG,FXV,G,LT,SE)..(CBR,DSL,EFI) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A770 |
AE95..5F..SE;AE91..(FXG,FXV,G,LT,SE)..(CBR,EFI) |
1 | ||
| 83133-1E250 |
AE91..4FC..FXZI ｱﾘ(*DS),NO.1 |
1 | ||
| 83133-1E170 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),NO.3 |
1 | ||
| 83133-1A310 |
AE91..SE..EFIS;AE91..FXVS,FXZI,FXZS |
1 | ||
| 83133-1E290 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),NO.2 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A010 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-12140 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 86640-12130 |
AE91,92..FXGT,FXZI,GT ｱﾘ(*DS) |
1 | ||
| 86640-12100 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1A730 |
AE91..FXZI |
1 | ||
| 83242-1E030 |
AE91,95..FXG,G,SE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A230 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83243-1A150 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A550 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 83244-1A650 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12440 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT |
1 | ||
| 83910-14340 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(*DS) |
1 | ||
| 83910-12400 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90167-50020 | ||||
| 93540-14035 | ||||
ILLUST NO. 2 OF 3(8705- )FXG,FXV,G,LT,SE,XE
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ,ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE91,92..FXGT,FXZI,FXZS,GT 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
5 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE91,92..FXGT,FXZI,FXZS,GT 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
5 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE91,92..FXGT,FXZI,FXZS,GT 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
5 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE91,92..FXGT,FXZI,FXZS,GT 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
5 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||

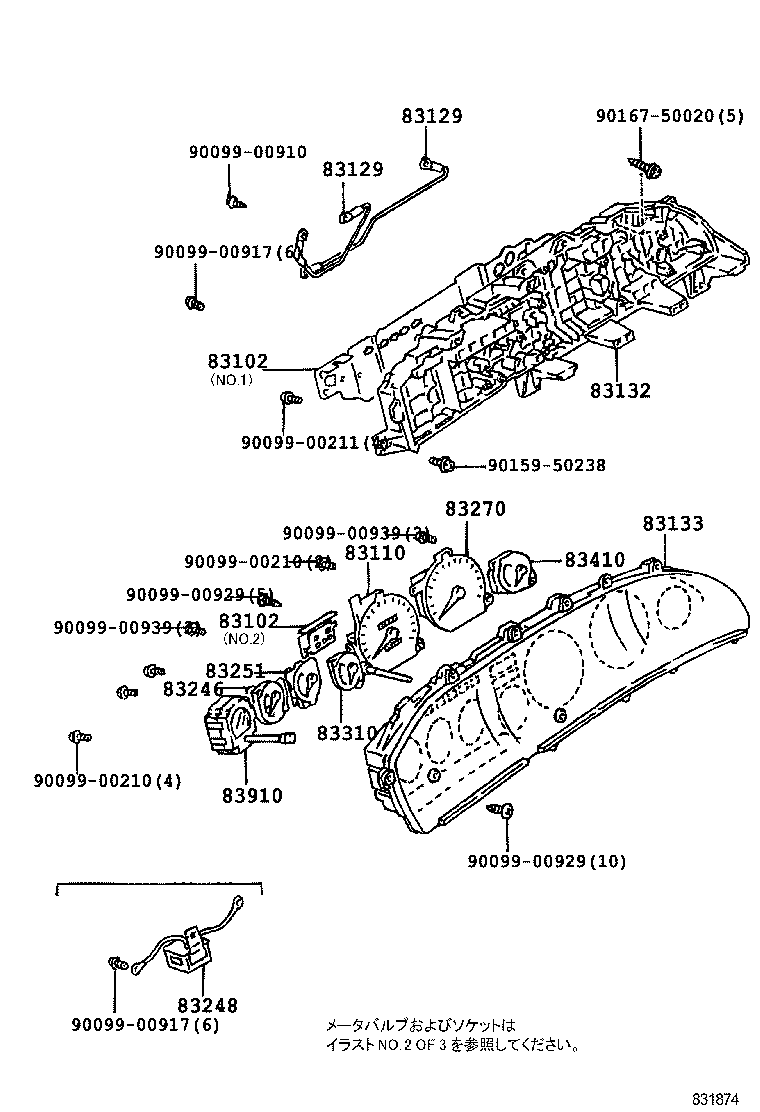

ILLUST NO. 1 OF 3(8705- )FXGT,FXGTV,FXVS,FXZI,FXZS,GT ; (8905-)SE..EFIS
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ(ｱﾅﾛｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E080 |
AE92..5F;AE91..FXZI NO.1 |
1 | ||
| 83247-1E480 |
AE95..5F..SE;AE91..FXG,G,SE NO.1 |
1 | ||
| 83247-1E740 |
AE91..FXZI,FXZS NO.1 |
1 | ||
| 83247-1E760 |
AE91..FXZI,FXZS NO.2 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E080 |
AE92..5F;AE91..FXZI NO.1 |
1 | ||
| 83247-1E480 |
AE95..5F..SE;AE91..FXG,G,SE NO.1 |
1 | ||
| 83247-1E740 |
AE91..FXZI,FXZS NO.1 |
1 | ||
| 83247-1E760 |
AE91..FXZI,FXZS NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A840 |
AE91,95..FXG,G,SE |
1 | ||
| 83110-1E080 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-12090 |
AE91,92..FXGT,FXZI,FXZS,GT NO.1 |
1 | ||
| 83129-12030 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT L=105,BLUE |
1 | ||
| 83129-12110 |
AE91,92..FXGT,FXZI,FXZS,GT NO.2 |
1 | ||
| 83129-12010 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT L=225,WHITE |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-12090 |
AE91,92..FXGT,FXZI,FXZS,GT NO.1 |
1 | ||
| 83129-12030 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT L=105,BLUE |
1 | ||
| 83129-12110 |
AE91,92..FXGT,FXZI,FXZS,GT NO.2 |
1 | ||
| 83129-12010 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT L=225,WHITE |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A090 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 83132-1A290 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(*DS) |
1 | ||
| 83132-1A250 |
AE91,95,CE90,95..(FXG,FXV,G,LT,SE)..(CBR,DSL,EFI) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A770 |
AE95..5F..SE;AE91..(FXG,FXV,G,LT,SE)..(CBR,EFI) |
1 | ||
| 83133-1E250 |
AE91..4FC..FXZI ｱﾘ(*DS),NO.1 |
1 | ||
| 83133-1E170 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),NO.3 |
1 | ||
| 83133-1A310 |
AE91..SE..EFIS;AE91..FXVS,FXZI,FXZS |
1 | ||
| 83133-1E290 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),NO.2 |
1 | ||
| 83246 - GAUGE, OIL PRESSURE RECEIVER | ||||
| 83246-12170 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-12140 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 86640-12130 |
AE91,92..FXGT,FXZI,GT ｱﾘ(*DS) |
1 | ||
| 86640-12100 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83251 - METER, VOLTAGE | ||||
| 83251-12070 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1A730 |
AE91..FXZI |
1 | ||
| 83242-1E030 |
AE91,95..FXG,G,SE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A230 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83243-1A150 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A550 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 83244-1A650 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12440 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT |
1 | ||
| 83910-14340 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(*DS) |
1 | ||
| 83910-12400 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00211 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90159-50238 | ||||
| 90167-50020 | ||||

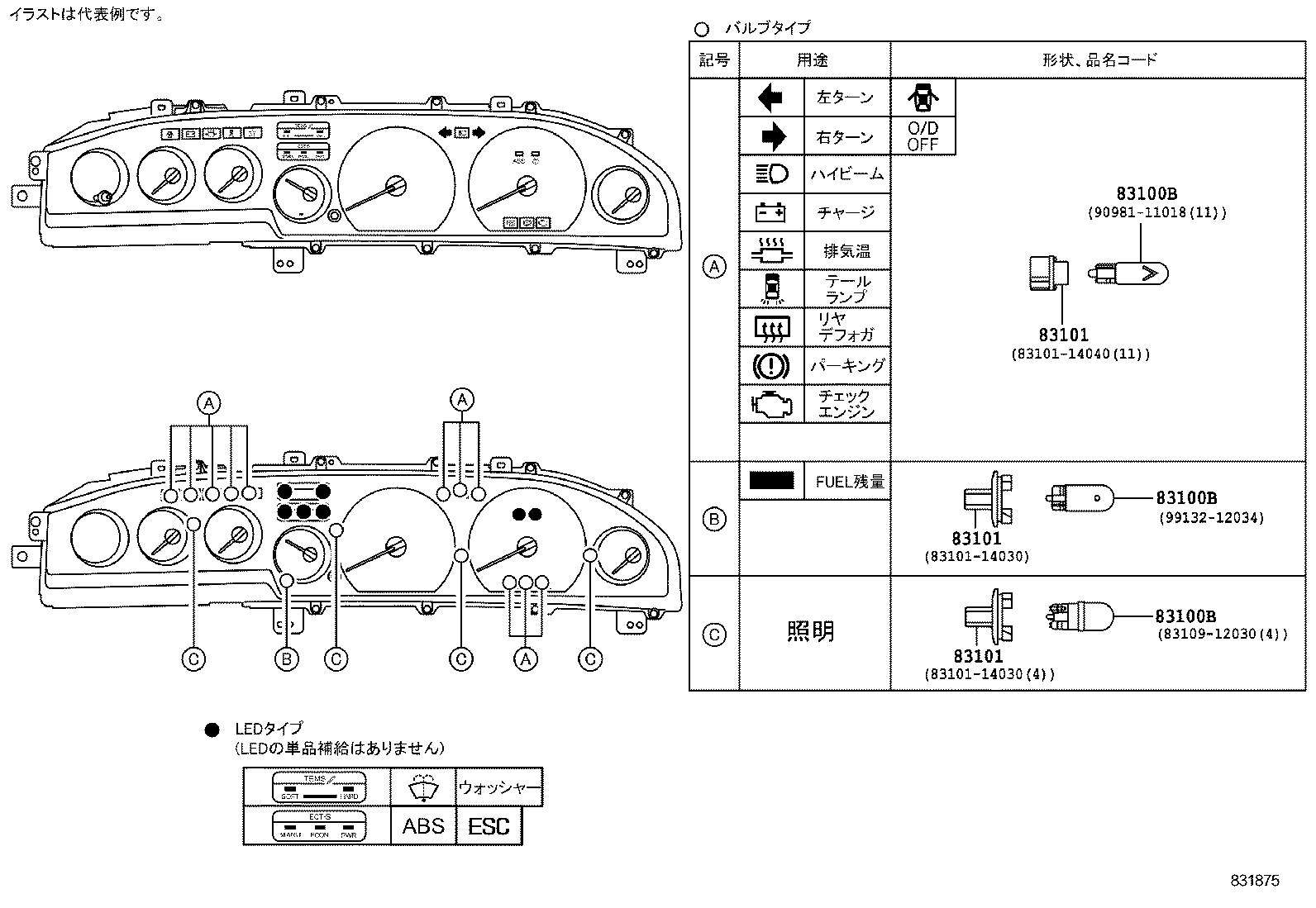

ILLUST NO. 2 OF 3(8705- )FXGT,FXGTV,FXVS,FXZI,FXZS,GT ; (8905-)SE..EFIS
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE91,92..FXGT,FXZI,FXZS,GT 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
5 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE91,92..FXGT,FXZI,FXZS,GT 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
5 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE91,92..FXGT,FXZI,FXZS,GT 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
5 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||

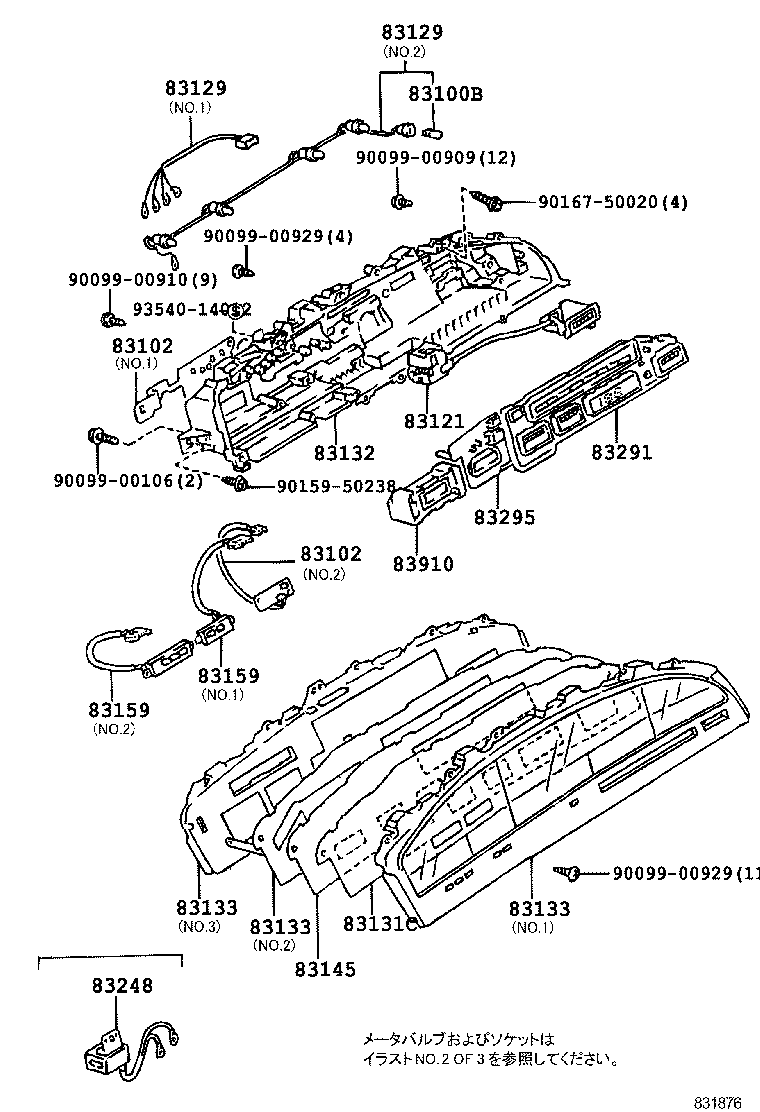

ILLUST NO. 1 OF 3(8705- )FXGT,FXZI,FXZS,GT
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ(ﾃﾞｼﾞﾀﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE91,92..FXGT,FXZI,FXZS,GT 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
5 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E080 |
AE92..5F;AE91..FXZI NO.1 |
1 | ||
| 83247-1E480 |
AE95..5F..SE;AE91..FXG,G,SE NO.1 |
1 | ||
| 83247-1E740 |
AE91..FXZI,FXZS NO.1 |
1 | ||
| 83247-1E760 |
AE91..FXZI,FXZS NO.2 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E080 |
AE92..5F;AE91..FXZI NO.1 |
1 | ||
| 83247-1E480 |
AE95..5F..SE;AE91..FXG,G,SE NO.1 |
1 | ||
| 83247-1E740 |
AE91..FXZI,FXZS NO.1 |
1 | ||
| 83247-1E760 |
AE91..FXZI,FXZS NO.2 |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-12050 |
AE91,92..FXGT,FXZI,FXZS,GT |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-12090 |
AE91,92..FXGT,FXZI,FXZS,GT NO.1 |
1 | ||
| 83129-12030 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT L=105,BLUE |
1 | ||
| 83129-12110 |
AE91,92..FXGT,FXZI,FXZS,GT NO.2 |
1 | ||
| 83129-12010 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT L=225,WHITE |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-12090 |
AE91,92..FXGT,FXZI,FXZS,GT NO.1 |
1 | ||
| 83129-12030 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT L=105,BLUE |
1 | ||
| 83129-12110 |
AE91,92..FXGT,FXZI,FXZS,GT NO.2 |
1 | ||
| 83129-12010 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT L=225,WHITE |
1 | ||
| 83131C - DIAL, SPEEDOMETER | ||||
| 83131-12210 |
AE91..4FC..FXZI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A090 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 83132-1A290 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(*DS) |
1 | ||
| 83132-1A250 |
AE91,95,CE90,95..(FXG,FXV,G,LT,SE)..(CBR,DSL,EFI) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A770 |
AE95..5F..SE;AE91..(FXG,FXV,G,LT,SE)..(CBR,EFI) |
1 | ||
| 83133-1E250 |
AE91..4FC..FXZI ｱﾘ(*DS),NO.1 |
1 | ||
| 83133-1E170 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),NO.3 |
1 | ||
| 83133-1A310 |
AE91..SE..EFIS;AE91..FXVS,FXZI,FXZS |
1 | ||
| 83133-1E290 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),NO.2 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A770 |
AE95..5F..SE;AE91..(FXG,FXV,G,LT,SE)..(CBR,EFI) |
1 | ||
| 83133-1E250 |
AE91..4FC..FXZI ｱﾘ(*DS),NO.1 |
1 | ||
| 83133-1E170 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),NO.3 |
1 | ||
| 83133-1A310 |
AE91..SE..EFIS;AE91..FXVS,FXZI,FXZS |
1 | ||
| 83133-1E290 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),NO.2 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A770 |
AE95..5F..SE;AE91..(FXG,FXV,G,LT,SE)..(CBR,EFI) |
1 | ||
| 83133-1E250 |
AE91..4FC..FXZI ｱﾘ(*DS),NO.1 |
1 | ||
| 83133-1E170 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),NO.3 |
1 | ||
| 83133-1A310 |
AE91..SE..EFIS;AE91..FXVS,FXZI,FXZS |
1 | ||
| 83133-1E290 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E870 |
AE91,92..FXGT,FXZI,FXZS,GT |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-12070 |
AE91,92..FXGT,FXZI,FXZS,GT NO.2 |
1 | ||
| 83159-12050 |
AE91,92..FXGT,FXZI,FXZS,GT NO.1 |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-12070 |
AE91,92..FXGT,FXZI,FXZS,GT NO.2 |
1 | ||
| 83159-12050 |
AE91,92..FXGT,FXZI,FXZS,GT NO.1 |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-12140 |
AE91,92..FXGT,FXZI,GT |
1 | ||
| 86640-12130 |
AE91,92..FXGT,FXZI,GT ｱﾘ(*DS) |
1 | ||
| 86640-12100 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-12040 |
AE91..FXZI |
1 | ||
| 83295 - PANEL, METER DISPLAY | ||||
| 83295-12020 |
AE91,92..4FC..(FXGT,FXZI,GT) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12440 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT |
1 | ||
| 83910-14340 |
AE91,92..FXGT,FXZI,FXZS,GT ｱﾘ(*DS) |
1 | ||
| 83910-12400 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| Common parts | ||||
| 90099-00106 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90159-50238 | ||||
| 90167-50020 | ||||
| 93540-14012 | ||||
ILLUST NO. 2 OF 3(8705- )FXGT,FXZI,FXZS,GT
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE91,92..FXGT,FXZI,FXZS,GT 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
5 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-20030 |
AE91,92..FXGT,FXZI,FXZS,GT 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
5 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-12090 |
AE91,92..FXGT,FXZI,FXZS,GT NO.1 |
1 | ||
| 83129-12030 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT L=105,BLUE |
1 | ||
| 83129-12110 |
AE91,92..FXGT,FXZI,FXZS,GT NO.2 |
1 | ||
| 83129-12010 |
AE91..SE..EFIS;AE91,92..FXGT,FXGTV,FXVS,FXZI,FXZS,GT L=225,WHITE |
1 | ||
ILLUST NO. 3 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
EE98;AE95,EE90..3FC,4F,4FC;AE91,92,CE9#,EE96,97..4F,4FC,5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
EE98;AE95,EE90..3FC,4F,4FC;AE91,92,CE9#,EE96,97..4F,4FC,5F |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12440 |
EE90,98;AE91,92,CE9#,EE96,97..4F,4FC,5F |
1 | ||
| Common parts | ||||
| 83791-12060 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
