Toyota Corolla AE91 SEAT BELT & CHILD RESTRAINT SEAT

Manufacturers Home
Toyota
JP
COROLLA
AE91-AGPGK (1987)
7104 - SEAT BELT & CHILD RESTRAINT SEAT

AE91-AGPGK (1987)

Toyota Corolla

Production May 1987 - May 1989

Engine 5AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

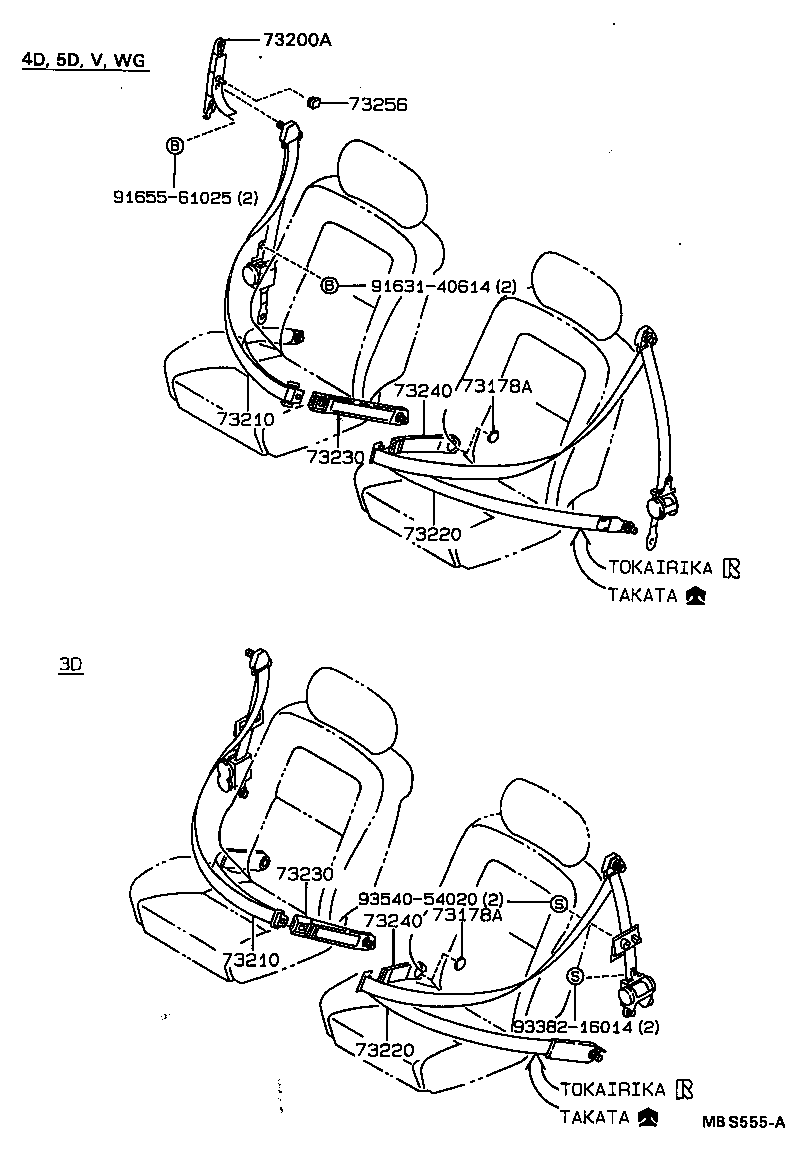

ILLUST NO. 1 OF 2(8705- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
73178A - CAP, SEAT BELT ANCHOR COVER
73178-16010E0	CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#	09/1988 - 05/1989	2
73178-1601025	CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#	05/1987 - 09/1988	2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-16010E0	CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#	09/1988 - 05/1989	2
73178-1601025	CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#	05/1987 - 09/1988	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1274003	AE91,92,EE90..3D SHADOW GRAY,TRIM1#,東海理化	05/1987 - 05/1989	1
73210-1275005	AE91,EE90..3D DARK BEIGE,TRIM4#,TAKATA	05/1987 - 05/1989	1
73210-1274005	AE91,EE90..3D DARK BEIGE,TRIM4#,東海理化	05/1987 - 05/1989	1
73210-1275003	AE91,92,EE90..3D SHADOW GRAY,TRIM1#,TAKATA	05/1987 - 05/1989	1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1274003	AE91,92,EE90..3D SHADOW GRAY,TRIM1#,東海理化	05/1987 - 05/1989	1
73210-1275005	AE91,EE90..3D DARK BEIGE,TRIM4#,TAKATA	05/1987 - 05/1989	1
73210-1274005	AE91,EE90..3D DARK BEIGE,TRIM4#,東海理化	05/1987 - 05/1989	1
73210-1275003	AE91,92,EE90..3D SHADOW GRAY,TRIM1#,TAKATA	05/1987 - 05/1989	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1255003	AE91,92,EE90..3D SHADOW GRAY,TRIM1#,TAKATA	05/1987 - 05/1989	1
73220-1260003	AE91,92,EE90..3D SHADOW GRAY,TRIM1#,東海理化	05/1987 - 05/1989	1
73220-1260005	AE91,EE90..3D DARK BEIGE,TRIM4#,東海理化	05/1987 - 05/1989	1
73220-1255005	AE91,EE90..3D DARK BEIGE,TRIM4#,TAKATA	05/1987 - 05/1989	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1255003	AE91,92,EE90..3D SHADOW GRAY,TRIM1#,TAKATA	05/1987 - 05/1989	1
73220-1260003	AE91,92,EE90..3D SHADOW GRAY,TRIM1#,東海理化	05/1987 - 05/1989	1
73220-1260005	AE91,EE90..3D DARK BEIGE,TRIM4#,東海理化	05/1987 - 05/1989	1
73220-1255005	AE91,EE90..3D DARK BEIGE,TRIM4#,TAKATA	05/1987 - 05/1989	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1230005	CE96,97,EE96,97,98..DX,GL;AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,東海理化	05/1987 - 05/1989	1
73230-1228003	AE91,92,CE9#,EE9# SHADOW GRAY,TRIM1#,TAKATA	05/1987 - 05/1989	1
73230-1230003	AE91,92,CE9#,EE9# SHADOW GRAY,TRIM1#,東海理化	05/1987 - 05/1989	1
73230-1228005	CE96,97,EE96,97,98..DX,GL;AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,TAKATA	05/1987 - 05/1989	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1230005	CE96,97,EE96,97,98..DX,GL;AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,東海理化	05/1987 - 05/1989	1
73230-1228003	AE91,92,CE9#,EE9# SHADOW GRAY,TRIM1#,TAKATA	05/1987 - 05/1989	1
73230-1230003	AE91,92,CE9#,EE9# SHADOW GRAY,TRIM1#,東海理化	05/1987 - 05/1989	1
73230-1228005	CE96,97,EE96,97,98..DX,GL;AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,TAKATA	05/1987 - 05/1989	1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1230005	CE96,97,EE96,97,98..DX,GL;AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,東海理化	05/1987 - 05/1989	1
73230-1228003	AE91,92,CE9#,EE9# SHADOW GRAY,TRIM1#,TAKATA	05/1987 - 05/1989	1
73230-1230003	AE91,92,CE9#,EE9# SHADOW GRAY,TRIM1#,東海理化	05/1987 - 05/1989	1
73230-1228005	CE96,97,EE96,97,98..DX,GL;AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,TAKATA	05/1987 - 05/1989	1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1230005	CE96,97,EE96,97,98..DX,GL;AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,東海理化	05/1987 - 05/1989	1
73230-1228003	AE91,92,CE9#,EE9# SHADOW GRAY,TRIM1#,TAKATA	05/1987 - 05/1989	1
73230-1230003	AE91,92,CE9#,EE9# SHADOW GRAY,TRIM1#,東海理化	05/1987 - 05/1989	1
73230-1228005	CE96,97,EE96,97,98..DX,GL;AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,TAKATA	05/1987 - 05/1989	1
Common parts
91631-40614
91655-61025
93382-16014
93540-54020

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-1228005	AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,TAKATA	05/1987 - 05/1989	1
73330-1229005	AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,東海理化	05/1987 - 05/1989	1
73330-1229003	AE91,92,CE90,EE90 SHADOW GRAY,TRIM1#,東海理化	05/1987 - 05/1992	1
73330-1228003	AE91,92,CE90,EE90 SHADOW GRAY,TRIM1#,TAKATA	05/1987 - 05/1992	1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-1228005	AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,TAKATA	05/1987 - 05/1989	1
73330-1229005	AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,東海理化	05/1987 - 05/1989	1
73330-1228003	AE91,92,CE90,EE90 SHADOW GRAY,TRIM1#,TAKATA	05/1987 - 05/1992	1
73330-1229003	AE91,92,CE90,EE90 SHADOW GRAY,TRIM1#,東海理化	05/1987 - 05/1992	1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-1212005	AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,東海理化	05/1987 - 05/1989	1
73350-1211005	AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4#,TAKATA	05/1987 - 05/1989	1
73350-1211003	AE91,92,CE90,EE90 SHADOW GRAY,TRIM1#,TAKATA	05/1987 - 05/1992	1
73350-1212003	AE91,92,CE90,EE90 SHADOW GRAY,TRIM1#,東海理化	05/1987 - 05/1992	1

AE91-AGPGK (1987)

ILLUST NO. 1 OF 2(8705- )

ILLUST NO. 2 OF 2(8705- )
