AE91-AGPGK (1987)
Toyota Corolla
Production
May 1987
-
May 1989
Engine
5AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )3D,5D,V,WG

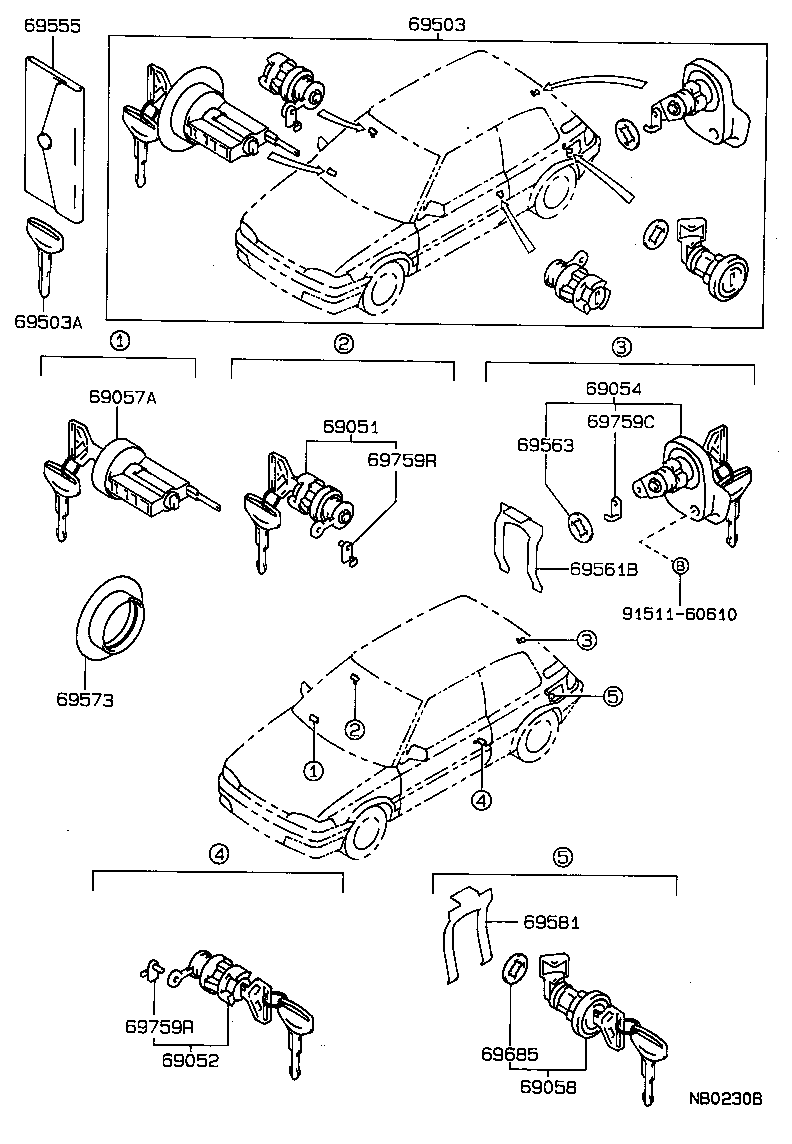

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-12200 |
AE9#,CE90,95,EE90..3D,4D,5D |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-12200 |
AE9#,CE90,95,EE90..3D,4D,5D |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-12500 |
AE91,92,EE90..3D,5D |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-12080 |
AE9#,CE90,95,EE90..3D,4D,5D |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-12840 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00133 |
AE9#,CE90,EE90..3D,4D,5D ﾏｽﾀｰｷｰ,*69付き |
1 | ||
| 90999-00130 |
AE9#,CE90,95,EE90..3D,4D,5D ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00131 |
AE9#,CE90,EE90..3D,4D,5D ﾏｽﾀｰｷｰ,*70付き |
1 | ||
| 90999-00132 |
AE9#,CE90,95,EE90..3D,4D,5D ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20010 |
AE9#,CE9#,EE9# |
1 | ||
| 69561B - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-12200 |
AE91,92,EE90..3D,5D |
1 | ||
| 69563 - PAD, BACK DOOR LOCK CYLINDER | ||||
| 69563-12020 |
AE91,92,EE90..3D,5D |
1 | ||
| 69573 - PAD, IGNITION SWITCH LOCK CYLINDER | ||||
| 69573-12010 |
AE9#,CE90,EE90..3D,4D,5D |
1 | ||
| 69759C - SNAP, BACK DOOR LOCK CYLINDER | ||||
| 69759-20080 |
AE91,92,EE90..3D,5D |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30040 |
AE9#,CE90,95,EE90..3D,4D,5D 右側 |
1 | ||
| 69759-30050 |
AE9#,CE90,95,EE90..3D,4D,5D 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30040 |
AE9#,CE90,95,EE90..3D,4D,5D 右側 |
1 | ||
| 69759-30050 |
AE9#,CE90,95,EE90..3D,4D,5D 左側 |
1 | ||
| Common parts | ||||
| 91511-60610 | ||||
