AE91-AGPGK (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D,5D

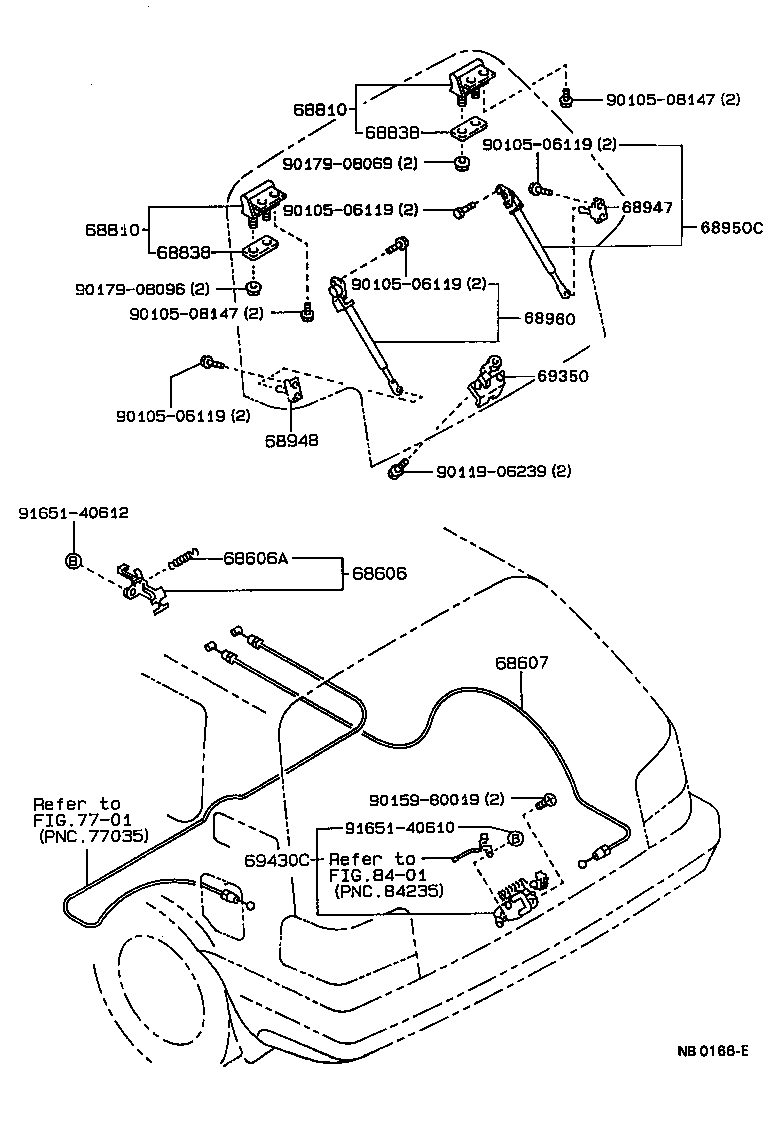

Click highlighted areas on diagram

diagram 68606 68606A 68607 68810 68810 68838 68838 68947 68948 68950C 68960 69350 69430C 7701 8401 9010506119 9010506119 9010506119 9010506119 9010508147 9010508147 9011906239 9015980019 9017908069 9017908096 9165140610 9165140612
Part # Description Qty Price
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-12060

AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS

 1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034

AE91,92,EE90..FXG,FXGT,FXL,FXZI

 2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-12530

AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS

 1
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-12040

AE91,92,EE90..3D,5D

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-12040

AE91,92,EE90..3D,5D

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10010

AE91,92,EE90..3D,5D

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10010

AE91,92,EE90..3D,5D

 2
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-12010

AE91,92,EE90..3D,5D

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-12010

AE91,92,EE90..3D,5D

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-19615

AE91,92,EE90..FXG,FXGT,FXL,FXZI

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-19305

AE91,92,EE90..FXG,FXGT,FXL,FXZI

 1
69350 - LOCK ASSY, BACK DOOR
69350-12130

AE91,92,EE90..3D,5D

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-12240

AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS

 1
Common parts
90105-06119
90105-08147
90119-06239
90159-80019
90179-08069
90179-08096
91651-40610
91651-40612
Linked diagrams
7701
8401
