AE91-AGPGK (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D

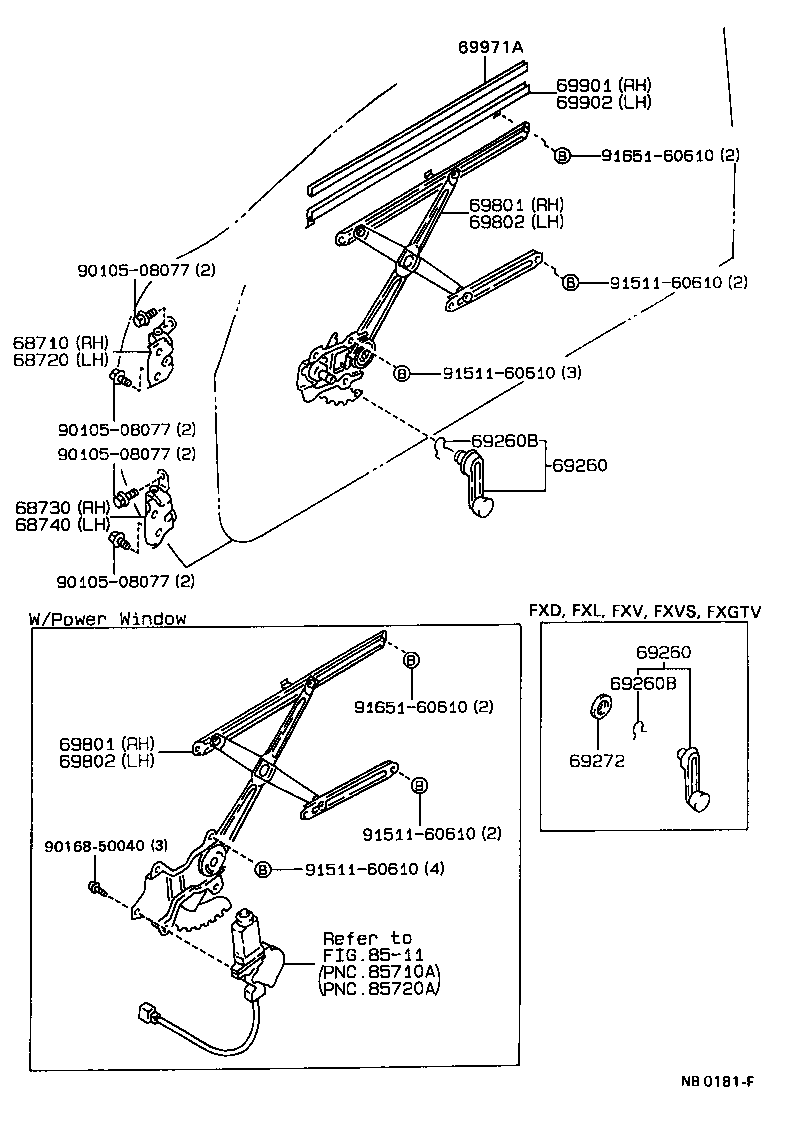

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260 69260B 69260B 69272 69801 69801 69802 69802 69901 69902 69971A 8511 9010508077 9010508077 9010508077 9010508077 9016850040 9151160610 9151160610 9151160610 9151160610 9165160610 9165160610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12110

AE91,92,EE90..3D

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12110

AE91,92,EE90..3D

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12070

AE91,92,EE90..3D

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12070

AE91,92,EE90..3D

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1208003

AE91..FXZI;AE91..(4FC,5F)..CBR;AE92,95,CE90..FXGT,GT,SE

SHADOW GRAY,TRIM1#

 2
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1208003

AE91..FXZI;AE91..(4FC,5F)..CBR;AE92,95,CE90..FXGT,GT,SE

SHADOW GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01005

AE91..FXZI;AE91..(4FC,5F)..CBR;AE92,95,CE90..FXGT,GT,SE

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01005

AE91..FXZI;AE91..(4FC,5F)..CBR;AE92,95,CE90..FXGT,GT,SE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-12110

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)

 1
69810-12320

AE91,92,EE90..3D

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-12110

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)

 1
69810-12320

AE91,92,EE90..3D

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-12110

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)

 1
69820-12320

AE91,92,EE90..3D

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-12110

AE91,92..3D..(4FC,5F)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ)

 1
69820-12320

AE91,92,EE90..3D

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-12200

AE91,92,EE90..3D

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-12140

AE91,92,EE90..3D

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-12090

AE91,92,EE90..3D

 2
Common parts
90105-08077
90168-50040
91511-60610
91651-60610
Linked diagrams
8511
