AE91-AGPGK (1987)
Toyota Corolla
ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-12050 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-12120 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-16020 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-16020 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-12051 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 63209-12050 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-12030 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12100 |
AE91,92..(3D,5D)..(4FC,5F) ﾘﾔ |
2 | ||
| 63249-12070 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE ﾌﾛﾝﾄ |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12100 |
AE91,92..(3D,5D)..(4FC,5F) ﾘﾔ |
2 | ||
| 63249-12070 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE ﾌﾛﾝﾄ |
2 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-12030 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-16020 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-12030 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-12020 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-16010 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12040 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-16020 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63262-16020 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-30020 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE 厚さ=1.0,ﾌﾛﾝﾄ |
1 | ||
| 63277-24010 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE 厚さ=1.0,ﾘﾔ |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-30020 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE 厚さ=1.0,ﾌﾛﾝﾄ |
1 | ||
| 63277-24010 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE 厚さ=1.0,ﾘﾔ |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-16010 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE |
1 | ||
| Common parts | ||||
| 90159-40193 | ||||
| 90159-60219 | ||||
| 90159-60348 | ||||
| 90162-50007 | ||||
| 90168-40027 | ||||
| 90179-06070 | ||||
| 90179-06167 | ||||
| 90189-05043 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90467-14001 | ||||
| 90468-16009 | ||||
| 90480-26011 | ||||
| 96160-00400 | ||||

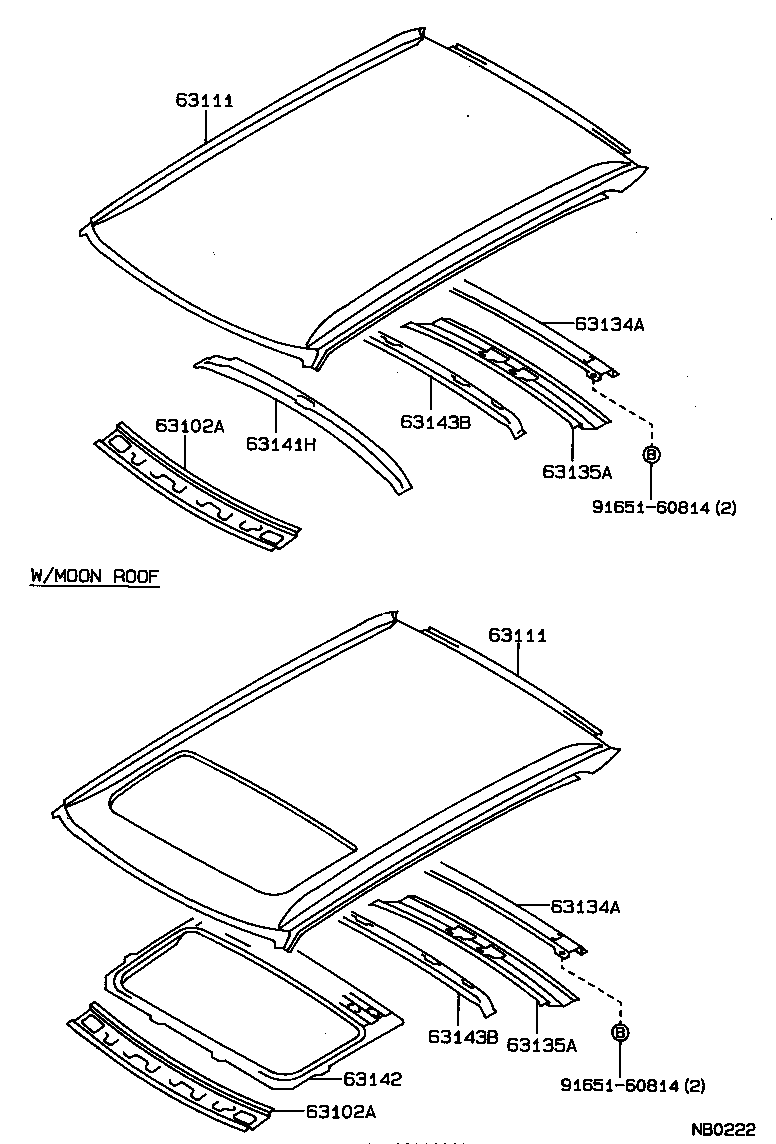

ILLUST NO. 1 OF 2(8705- )3D,5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12040 |
AE9#,CE90,95,EE90..3D,4D,5D |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-12040 |
AE9#,CE90,95,EE90..3D,4D,5D |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12390 |
AE91,92,EE90..3D,5D |
1 | ||
| 63111-12400 |
AE91,92..(3D,5D)..(4FC,5F) ｱﾘ(ﾙ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12390 |
AE91,92,EE90..3D,5D |
1 | ||
| 63111-12400 |
AE91,92..(3D,5D)..(4FC,5F) ｱﾘ(ﾙ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-12140 |
AE91,92,EE90..3D,5D |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-12140 |
AE91,92,EE90..3D,5D |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-12080 |
AE91,92,EE90..3D,5D |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-12080 |
AE91,92,EE90..3D,5D |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-12130 |
AE9#,CE90,95,EE90..3D,4D,5D |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12030 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-12040 |
AE91,92,EE90..3D,5D |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-12040 |
AE91,92,EE90..3D,5D |
1 | ||
| Common parts | ||||
| 91651-60814 | ||||
