AE91-AGPGK (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

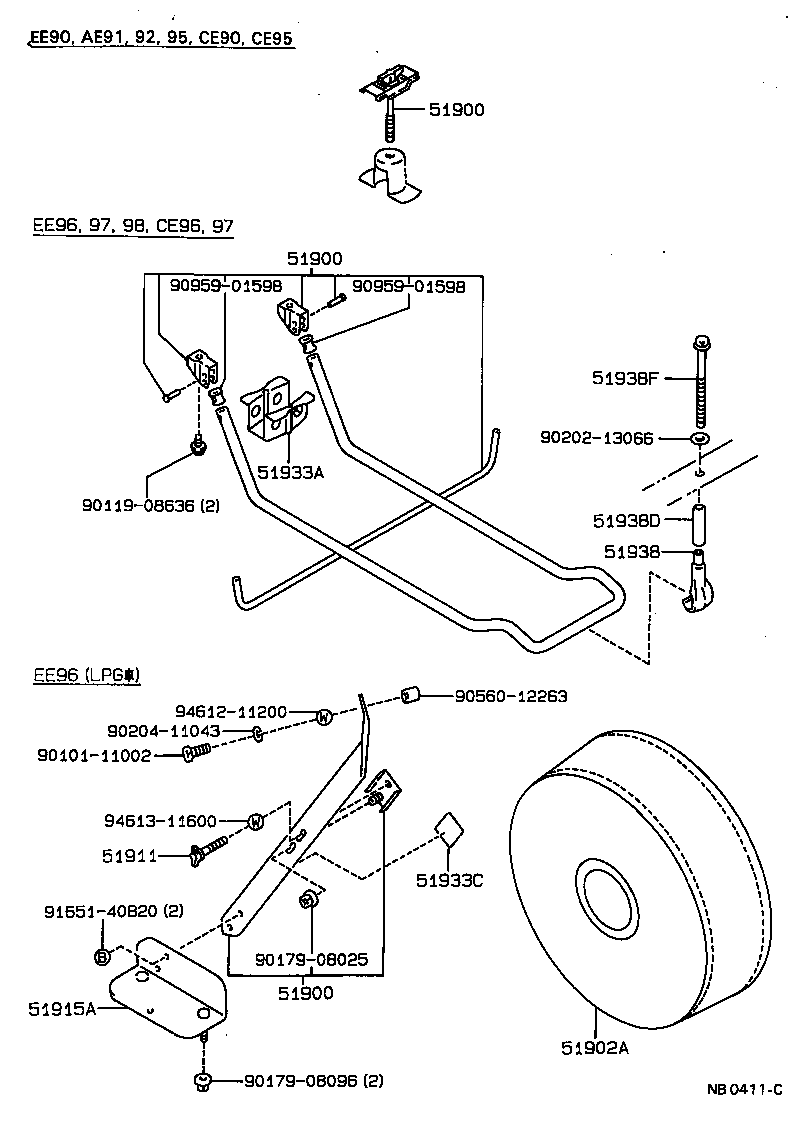

Click highlighted areas on diagram

diagram 51900 51900 51900 51902A 51911 51915A 51933A 51933C 51938 51938D 51938F 9010111002 9011908636 9017908025 9017908096 9020213066 9020411043 9056012263 9095901598 9095901598 9165140820 9461211200 9461311600
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-16020

AE91..G

ｱﾘ(ｽﾍﾟｱﾀｲﾔ ｵｳｷｳ ﾖｳ ﾀｲﾔ ｲｶﾞｲ)

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-16020

AE91..G

ｱﾘ(ｽﾍﾟｱﾀｲﾔ ｵｳｷｳ ﾖｳ ﾀｲﾔ ｲｶﾞｲ)

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-16020

AE91..G

ｱﾘ(ｽﾍﾟｱﾀｲﾔ ｵｳｷｳ ﾖｳ ﾀｲﾔ ｲｶﾞｲ)

 1
Common parts
90101-11002
90119-08636
90179-08025
90179-08096
90202-13066
90204-11043
90560-12263
90959-01598
91651-40820
94612-11200
94613-11600
