AE91-AGPGK (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705-8905)AE91,95,CE9#..4FC

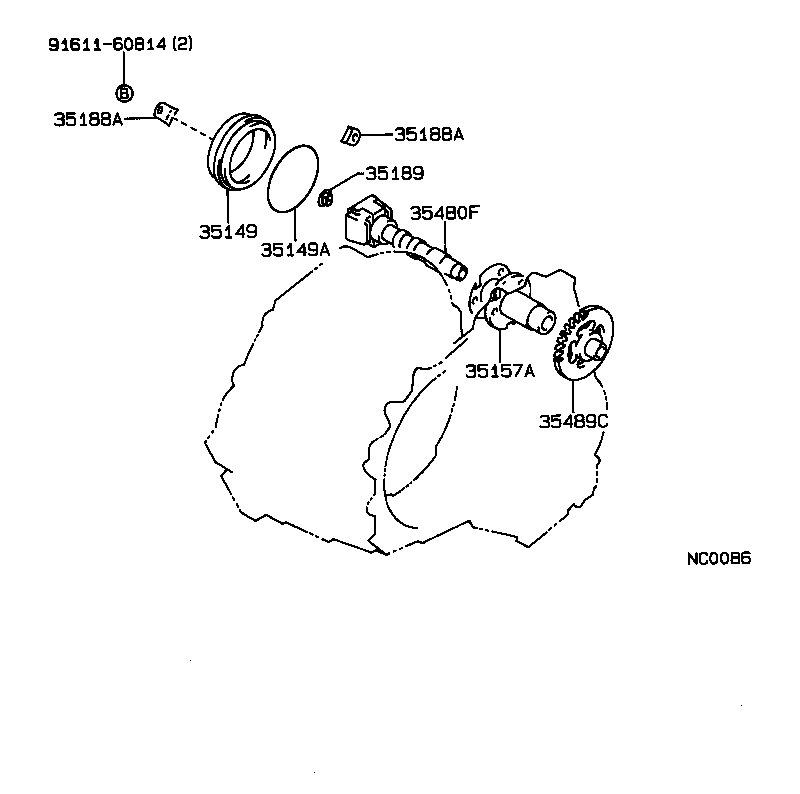

Click highlighted areas on diagram

A240L,A241L,A241H

diagram 35149 35149A 35157A 35188A 35188A 35189 35480F 35489C 9161160814
Part # Description Qty Price
35149 - COVER, GOVERNOR
35149-20010

AE91,95,CE90,96,97..4FC

 1
35149A - RING, O (FOR GOVERNOR COVER)
90301-67001

AE91,95,CE9#..4FC

 1
35157A - ADAPTER, GOVERNOR BODY
35157-20031

AE91,95,CE90,96,97..4FC

 1
35188A - BRACKET, GOVERNOR COVER
35188-20010

AE91,95,CE9#..4FC

 1
35188A - BRACKET, GOVERNOR COVER
35188-20010

AE91,95,CE9#..4FC

 1
35189 - WASHER, GOVERNOR THRUST, NO.1
35189-32010

AE91,95,CE90,96,EE90,98..ATM

 1
35480F - BODY ASSY, GOVERNOR
35480-12030

AE91,95..4FC

 1
35489C - GEAR, GOVERNOR DRIVEN
35489-12010

AE9#,CE90,96,97..4FC

 1
Common parts
91611-60814
