AE91-AGPGK (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

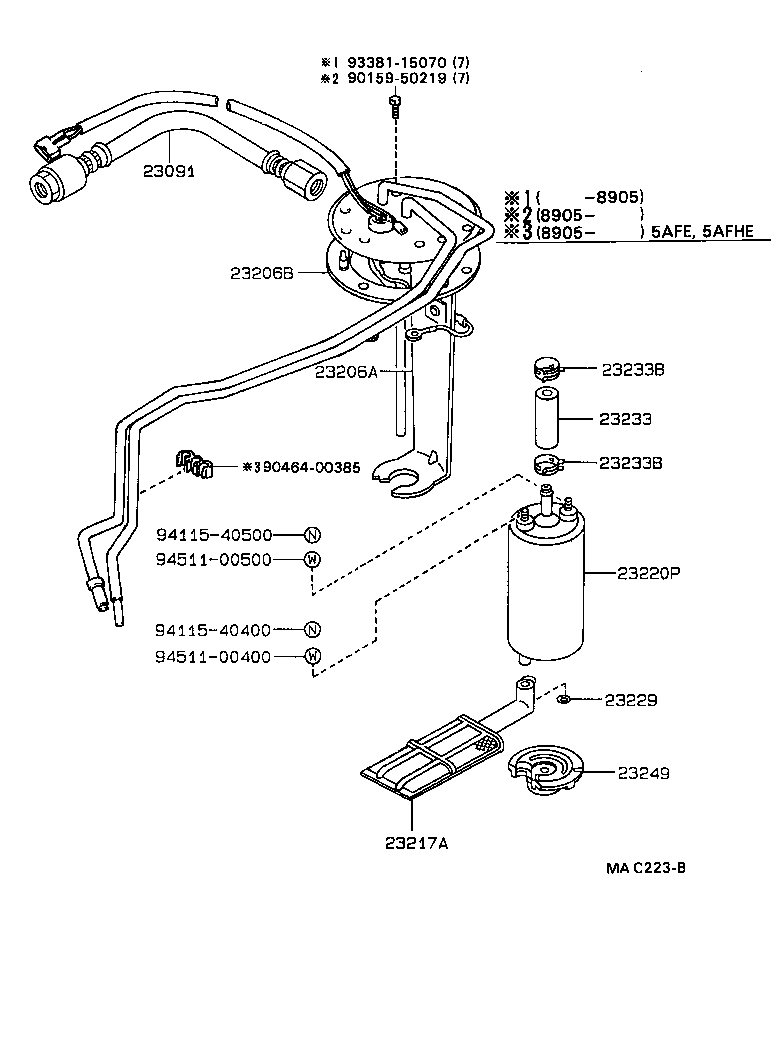

ILLUST NO. 2 OF 2(8705- )4AGE,4AFE,5AFE,5AFHE

Click highlighted areas on diagram

diagram 23091 23206A 23206B 23217A 23220P 23229 23233 23233B 23233B 23249 9015950219 9046400385 9338115070 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-16020

4AGE,5AFHE,5AFE..AE91,92

 1
23206A - BRACKET, FUEL PUMP
23206-16430

5AFE..AE91

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-12020

4AGE,5AFE..AE91,92

 1
23217A - FILTER, FUEL PUMP
23217-16010

4AGE,5AFE..AE91,92

NIPPONDENSO

 1
23217-16024

4AGE,5AFE..AE91,92

AISAN

 1
23220P - PUMP ASSY, FUEL
23220-43070

4AGE,5AFE..AE91,92

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

4AGE,4AFE,5AFE,5AFHE..AE9#

 1
23233 - HOSE, FUEL PUMP
23239-16010

4AGE,5AFE..AE91,92

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

4AGE,5AFE..AE91,92

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

4AGE,5AFE..AE91,92

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74150

4AGE,4AFE,5AFE,5AFHE..AE9#

 1
Common parts
90159-50219
90464-00385
93381-15070
94115-40400
94115-40500
94511-00400
94511-00500

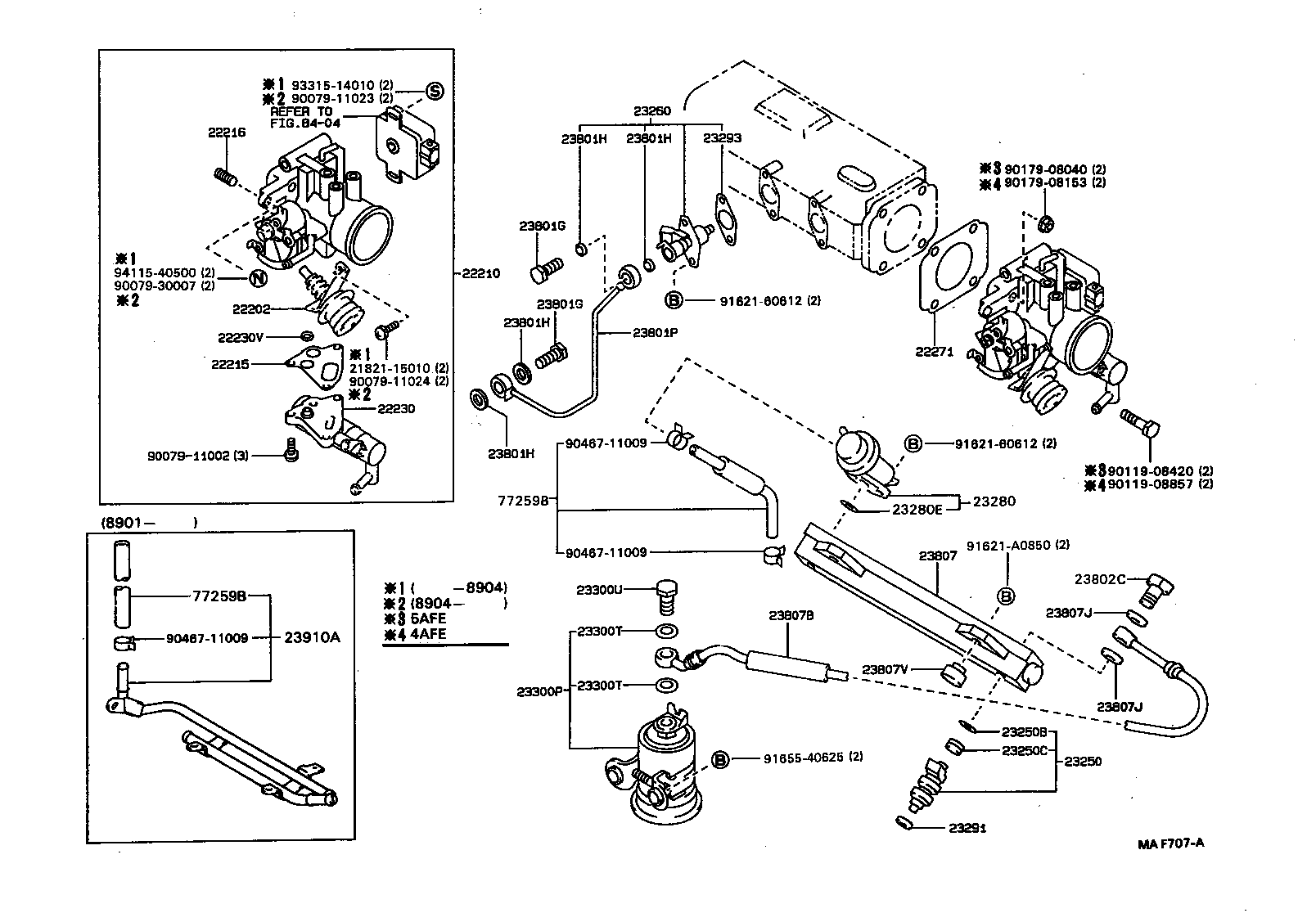

ILLUST NO. 1 OF 2(8705-8905)5AFE ; (8905- )4AFE

Click highlighted areas on diagram

diagram 2182115010 22202 22210 22215 22216 22230 22230V 22271 23250 23250B 23250C 23260 23280 23280E 23291 23293 23300P 23300T 23300T 23300U 23801G 23801G 23801H 23801H 23801H 23801H 23801P 23802C 23807 23807B 23807J 23807J 23807V 23910A 77259B 77259B 8404 9007911002 9007911023 9007911024 9007930007 9011908420 9011908857 9017908040 9017908153 9046711009 9046711009 9046711009 9162160612 9162160612 91621A0850 9165540625 9331514010 9411540500
Part # Description Qty Price
22202 - DASH POT SUB-ASSY
22202-15020

5AFE..AE91..4FC

 1
22210 - BODY ASSY, THROTTLE
22210-15020

5AFE..AE91..4FC

 1
22215 - GASKET, THROTTLE BODY COVER
22215-15010

5AFE..AE91

 1
22216 - SCREW, DASH POT ADJUSTING
22216-74010

4AFE,5AFHE,5AFE..AE91,95

 2
22230 - VALVE ASSY, AUXILIARY AIR
22230-15020

5AFE..AE91..4FC

 1
22230V - RING, O(FOR AUXILIARY AIR VALVE)
96711-19009

4AGE,5AFE..AE91,92

 1
22271 - GASKET, THROTTLE BODY
22271-15010

4AFE,5AFHE,5AFE..AE91,95

 1
23250 - INJECTOR ASSY, FUEL
23209-15010

5AFE,5AFHE..AE91

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

4AGE,5AFE..AE91,92

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

4AGE,5AFE..AE91,92

 4
23260 - INJECTOR ASSY, COLD START FUEL
23260-19085

5AFE..AE91

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-15010

5AFE..AE91

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

4AGE,4AFE,5AFE,5AFHE..AE9#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

4AGE,5AFE..AE91,92

 4
23293 - GASKET, COLD START INJECTOR
23293-74010

5AFE..AE91

 1
23300P - FILTER, FUEL(FOR EFI)
23300-19145

4AGE,4AFE,5AFE,5AFHE..AE9#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4AGE,4AFE,5AFE,5AFHE..AE9#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4AGE,4AFE,5AFE,5AFHE..AE9#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4AGE,4AFE,5AFE,5AFHE..AE9#

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-08003

4AGE,5AFE..AE91,92

 2
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-08003

4AGE,5AFE..AE91,92

 2
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AGE,5AFE..AE91,92

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AGE,5AFE..AE91,92

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AGE,5AFE..AE91,92

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AGE,5AFE..AE91,92

 4
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-15050

5AFE..AE91

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12097

4AFE,5AFHE,5AFE..AE91,95

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-16070

5AFE..AE91

 1
23807-15010

5AFE..AE91

 1
23807B - HOSE, FUEL DELIVERY PIPE
23271-15200

5AFE..AE91

 1
23271-16080

5AFE..AE91

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90201-12109

4AGE,5AFE..AE91,92

 2
23807J - GASKET, PIPE FUEL DELIVARY INLET
90201-12109

4AGE,5AFE..AE91,92

 2
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08021

4AFE,5AFHE,5AFE..AE91,95

 2
23910A - TUBE SUB-ASSY, FUEL
23901-16100

5AFE..AE91

 1
77259B - HOSE, FUEL
77259-12110

AE91..EFI

 1
95333-06020

AE91..EFI

 1
77259B - HOSE, FUEL
77259-12110

AE91..EFI

 1
95333-06020

AE91..EFI

 1
Common parts
21821-15010
90079-11002
90079-11023
90079-11024
90079-30007
90119-08420
90119-08857
90179-08040
90179-08153
90467-11009
91621-60612
91621-A0850
91655-40625
93315-14010
94115-40500
Linked diagrams
8404
