AE91-AGPGK (1987)
Toyota Corolla

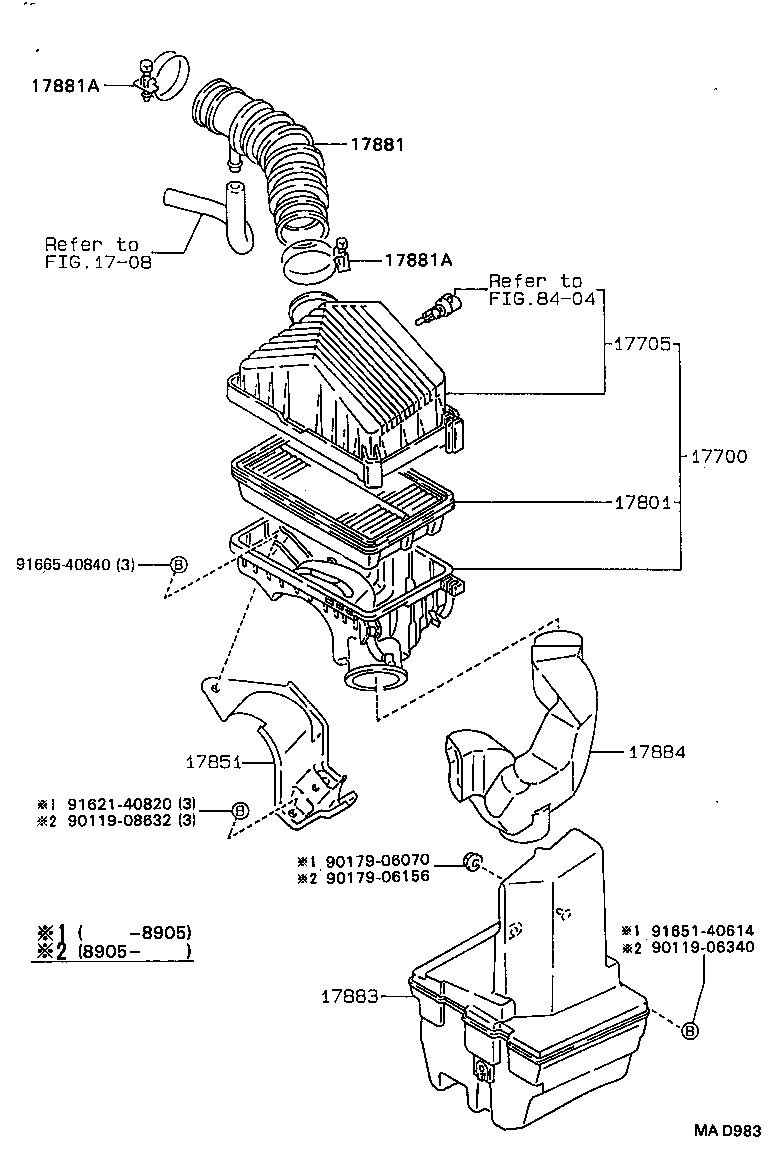

(8705-8905)5AFE ; (8905- )4AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15250 |
5AFE..AE91 |
1 | ||
| 17700-15240 |
4AF,5AF..AE91,95 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-15150 |
4AF,5AF..AE91,95 |
1 | ||
| 17705-15140 |
5AFE..AE91 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-16020 |
4AGE,5AFE..AE91,92 |
1 | ||
| 17801-15060 |
4AF,5AF..AE91,95 |
1 | ||
| 17851 - BRACKET, AIR CLEANER SUPPORT | ||||
| 17851-15010 |
4AGE,4AFE,5AFE,5AFHE..AE9# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-15120 |
5AF..AE91 |
1 | ||
| 17881-15130 |
5AFE..AE91 |
1 | ||
| 17881-15150 |
4AF,5AF..AE91,95 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10730 |
5AFE..AE91 |
2 | ||
| 96111-10460 |
4AF,5AF..AE91,95 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10730 |
5AFE..AE91 |
2 | ||
| 96111-10460 |
4AF,5AF..AE91,95 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-16040 |
4AGE,5AFE..AE91,92 |
1 | ||
| 17883-16041 |
4AGE,5AFE..AE91,92 |
1 | ||
| 17883-16030 |
4AF,5AF..AE91,95 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17880-16010 |
4AF,5AF..AE91,95 |
1 | ||
| 17882-16100 |
4AGE,5AFE..AE91,92 |
1 | ||
| Common parts | ||||
| 90119-06340 | ||||
| 90119-08632 | ||||
| 90179-06070 | ||||
| 90179-06156 | ||||
| 91621-40820 | ||||
| 91651-40614 | ||||
| 91665-40840 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 8404 | ||||
(8705-8908)4AF,5AF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-15040 |
4AF,5AF..AE91,95 |
1 | ||
| 17305 - VALVE SUB-ASSY, REED | ||||
| 17350-15100 |
4AF,5AF..AE91,95 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15250 |
5AFE..AE91 |
1 | ||
| 17700-15240 |
4AF,5AF..AE91,95 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15250 |
5AFE..AE91 |
1 | ||
| 17700-15240 |
4AF,5AF..AE91,95 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06010 |
4AF,5AF..AE91,95 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06018 |
4AF,5AF..AE91,95 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-15150 |
4AF,5AF..AE91,95 |
1 | ||
| 17705-15140 |
5AFE..AE91 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-15080 |
4AF,5AF..AE91,95 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-15010 |
4AF,5AF..AE91,95 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-16020 |
4AGE,5AFE..AE91,92 |
1 | ||
| 17801-15060 |
4AF,5AF..AE91,95 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-15120 |
5AF..AE91 |
1 | ||
| 17881-15130 |
5AFE..AE91 |
1 | ||
| 17881-15150 |
4AF,5AF..AE91,95 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10730 |
5AFE..AE91 |
2 | ||
| 96111-10460 |
4AF,5AF..AE91,95 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-15140 |
4AF,5AF..AE91,95 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 17786-15010 |
4AF,5AF..AE91,95 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 17786-15010 |
4AF,5AF..AE91,95 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-16040 |
4AGE,5AFE..AE91,92 |
1 | ||
| 17883-16041 |
4AGE,5AFE..AE91,92 |
1 | ||
| 17883-16030 |
4AF,5AF..AE91,95 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17880-16010 |
4AF,5AF..AE91,95 |
1 | ||
| 17882-16100 |
4AGE,5AFE..AE91,92 |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90175-06010 | ||||
| 90179-06156 | ||||
| 90467-19013 | ||||
| 92122-40655 | ||||
