AE91-AGMGU (1987)
Toyota Corolla
Production
May 1987
-
May 1989
Engine
5AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )AE91,95

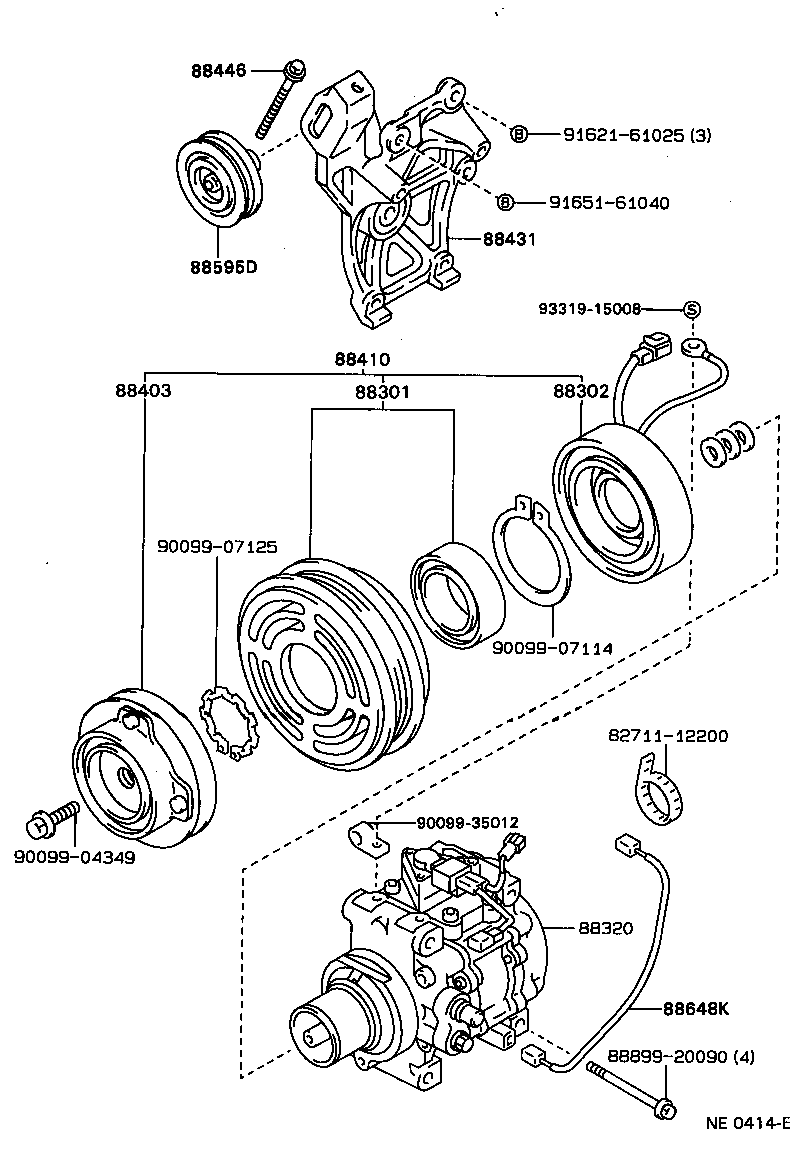

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-12560 |
AE91,95..FXG,FXZI,G,SE |
1 | ||
| 88320-12650 |
AE91,95..FXG,FXZI,G,SE |
1 | ||
| 88320-12650 |
AE91,95..FXG,FXL,FXZI,G,SE,TX,XE |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-12250 |
AE91,95..FXG,FXZI,G,SE |
1 | ||
| 88410-12250 |
AE91,95..FXG,FXL,FXZI,G,SE,TX,XE |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12400 |
AE91,95..FXG,FXZI,G,SE |
1 | ||
| 88431-12400 |
AE91..4FC..EFI;AE91,95..5F..(FXG,FXZI,G,SE) |
1 | ||
| 88431-12430 |
AE91,95..FXG,FXZI,G,SE |
1 | ||
| 88431-12430 |
AE91,95..FXG,FXL,FXZI,G,SE,TX,XE |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
AE91,95..FXG,FXZI,G,SE |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-17010 |
AE91,95..FXG,FXZI,G,SE |
1 | ||
| 88648K - WIRE SUB-ASSY, SENSOR | ||||
| 88648-12380 |
AE9#..FXG,FXGT,FXZI,G,GT,SE |
1 | ||
| 88648-12380 |
AE9#..FXG,FXGT,FXL,FXZI,G,GT,SE,TX,XE |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88899-20090 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90099-35012 | ||||
| 91621-61025 | ||||
| 91651-61040 | ||||
| 93319-15008 | ||||
