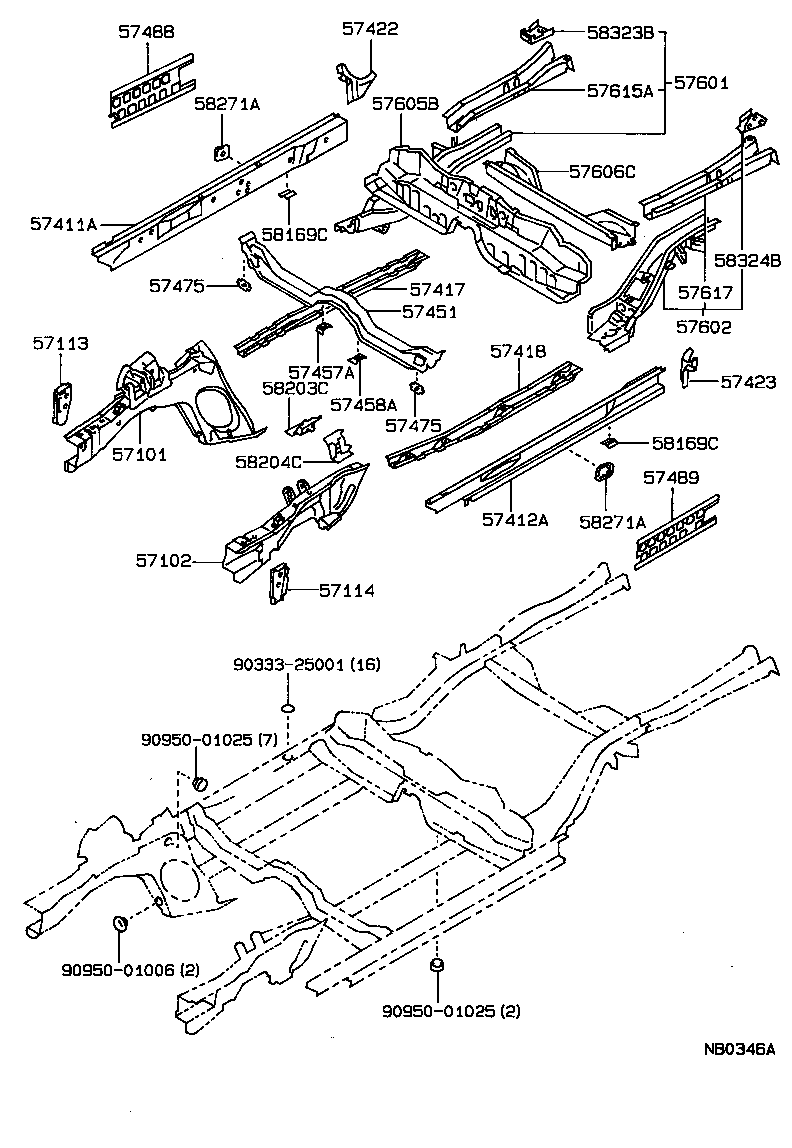

AE91-AGMGU (1987)
Toyota Corolla
(8705- )3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-12340 |
AE9# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12370 |
AE9#,EE9# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12110 |
AE9#,CE9#,EE9# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12110 |
AE9#,CE9#,EE9# |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-12080 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-12040 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 57422 - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57422-12020 |
AE91,92,EE90..3D |
1 | ||
| 57423 - BRACKET, FRONT FLOOR REINFORCEMENT, RH | ||||
| 57423-12020 |
AE91,92,EE90..3D |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-12110 |
AE91,92,CE9#,EE9# |
1 | ||
| 57457A - PLATE, FRONT FLOOR CROSSMEMBER, NO.2 RH | ||||
| 57457-12020 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 57458A - PLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH | ||||
| 57458-12020 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
AE91,92,CE90,96,97,EE9# |
2 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
AE91,92,CE90,96,97,EE9# |
2 | ||
| 57488 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.2 RH | ||||
| 57488-12030 |
AE91,92,EE90..3D |
1 | ||
| 57489 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.2 LH | ||||
| 57489-12030 |
AE91,92,EE90..3D |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-12550 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 57601-12500 |
AE91..G |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-12420 |
AE91..G |
1 | ||
| 57602-12460 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-12120 |
AE91,92,CE90,EE90 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-12100 |
AE91,92,CE90,EE90 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-12060 |
AE91,92,EE90..3D,5D |
1 | ||
| 57617 - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-12060 |
AE91,92,EE90..3D,5D |
1 | ||
| 58169C - PATCH, FRONT FLOOR REAR | ||||
| 58169-12010 |
AE95;AE91,92,EE90..3D |
2 | ||
| 58169C - PATCH, FRONT FLOOR REAR | ||||
| 58169-12010 |
AE95;AE91,92,EE90..3D |
2 | ||
| 58203C - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING | ||||
| 58203-12030 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 58204C - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING, LH | ||||
| 58204-12010 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-12050 |
AE9#,CE9#,EE9# |
2 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-12050 |
AE9#,CE9#,EE9# |
2 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90950-01006 | ||||
| 90950-01025 | ||||
(8705- )AE91,92,CE90,EE90..4D,5D ; (8708-8905)G ; (8908- )AE91..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-12340 |
AE9# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12370 |
AE9#,EE9# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12110 |
AE9#,CE9#,EE9# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12110 |
AE9#,CE9#,EE9# |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-12080 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-12040 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-12110 |
AE91,92,CE9#,EE9# |
1 | ||
| 57457A - PLATE, FRONT FLOOR CROSSMEMBER, NO.2 RH | ||||
| 57457-12020 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 57458A - PLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH | ||||
| 57458-12020 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
AE91,92,CE90,96,97,EE9# |
2 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
AE91,92,CE90,96,97,EE9# |
2 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-12550 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 57601-12500 |
AE91..G |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-12420 |
AE91..G |
1 | ||
| 57602-12460 |
AE91,92..(3D,5D)..(4FC,5F) |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-12120 |
AE91,92,CE90,EE90 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-12100 |
AE91,92,CE90,EE90 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-12060 |
AE91,92,EE90..3D,5D |
1 | ||
| 57617 - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-12060 |
AE91,92,EE90..3D,5D |
1 | ||
| 58169C - PATCH, FRONT FLOOR REAR | ||||
| 58169-12010 |
AE95;AE91,92,EE90..3D |
2 | ||
| 58169C - PATCH, FRONT FLOOR REAR | ||||
| 58169-12010 |
AE95;AE91,92,EE90..3D |
2 | ||
| 58203C - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING | ||||
| 58203-12030 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 58204C - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING, LH | ||||
| 58204-12010 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-12050 |
AE9#,CE9#,EE9# |
2 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-12050 |
AE9#,CE9#,EE9# |
2 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90950-01006 | ||||
| 90950-01025 | ||||
| 90950-01247 | ||||
| 90950-01496 | ||||
