AE91-AGMGU (1987)
Toyota Corolla
Production
May 1987
-
May 1989
Engine
5AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )3D,5D

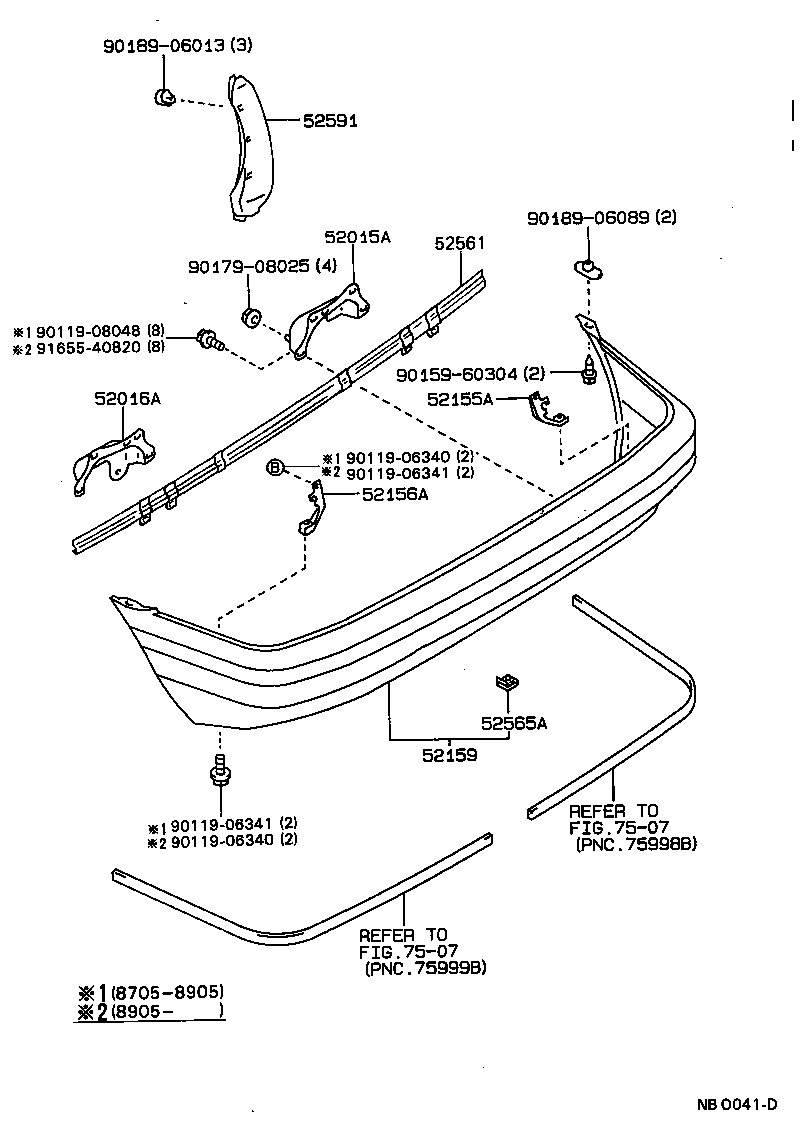

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52181-12310 |
AE91,92,EE90..3D,5D |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52182-12260 |
AE91,92,EE90..3D,5D |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-12170 |
AE91,92,EE90..3D,5D |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-12160 |
AE91,92,EE90..3D,5D |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52105-12050 |
AE91,92,EE90..3D,5D |
1 | ||
| 52105-1290202 |
AE91..FXG ｱﾘ(ﾌﾙｶﾗ-),SUPER RED 2,SUPER RED 2,3E5 |
1 | ||
| 52105-1290203 |
AE91..FXG ｱﾘ(ﾌﾙｶﾗ-),GRAY M,GRAY M,168 |
1 | ||
| 52105-1290303 |
AE91,EE90..FXG,FXL GRAY M,168 |
1 | ||
| 52105-1290308 |
AE91,EE90..FXG,FXL SUPER WHITE 2,040 |
1 | ||
| 52105-1290205 |
AE91..FXG ｱﾘ(ﾌﾙｶﾗ-),BEIGE M,BEIGE M,27E |
1 | ||
| 52105-1290305 |
AE91,EE90..FXG,FXL M BEIGE M,4H6 |
1 | ||
| 52105-1290208 |
AE91..FXG ｱﾘ(ﾌﾙｶﾗ-),SUPER WHITE 2,SUPER WHITE 2,040 |
1 | ||
| 52105-1290302 |
AE91,EE90..FXG,FXL SUPER RED 2,3E5 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12040 |
AE91,92,CE96,97,EE9#..3D,5D,V,WG |
8 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12060 |
AE91,92,EE90..3D,5D |
1 | ||
| Common parts | ||||
| 90119-06340 | ||||
| 90119-06341 | ||||
| 90119-08048 | ||||
| 90159-60304 | ||||
| 90179-08025 | ||||
| 90189-06013 | ||||
| 90189-06089 | ||||
| 91655-40820 | ||||
| Linked diagrams | ||||
| 7507 | ||||
