AE91-AGMGU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4AF#,5AF#

Click highlighted areas on diagram

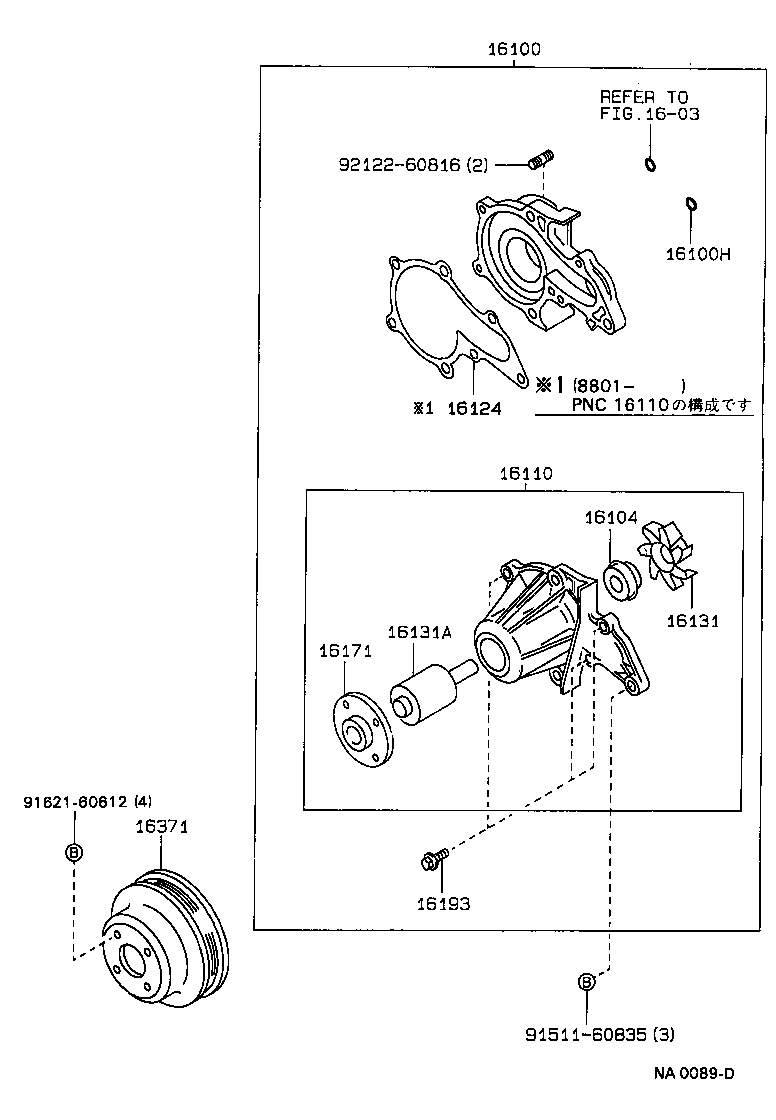

diagram 1603 16100 16100H 16104 16110 16124 16131 16131A 16171 16193 16371 9151160835 9162160612 9212260816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19205

4AF#,5AF#..AE91,95

 1
16100H - RING, O(FOR WATER PUMP)
96711-24035

4AGE,4AF#,5AF#..AE9#

 1
16104 - SEAL SET, WATER PUMP
16104-15060

4AF#,5AF#..AE91,95

AISAN

 1
16104-15020

4AF,5AF#..AE91,95

AISIN

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-19085

4AF#,5AF#..AE91,95

AISAN

 1
16110-19075

4AF#,5AF#..AE91,95

AISIN

 1
16124 - GASKET, WATER PUMP COVER
16124-15060

4AF#,5AF#..AE91,95

AISAN

 1
16124-15010

4AF#,5AF#..AE91,95

AISIN

 1
16131 - ROTOR, WATER PUMP
16131-15080

4AF#,5AF#..AE91,95

AISIN

 1
16131-15070

4AF#,5AF#..AE91,95

AISAN

 1
16131A - BEARING, WATER PUMP
90369-35043

4AGE,4AF#,5AF#..AE9#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-15070

4AF,5AF#..AE91,95

AISAN

 1
16171-15050

4AF,5AF#..AE91,95

AISIN

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-15060

4AF#,5AF#..AE91,95

AISAN

 3
16193-15011

4AF#,5AF#..AE91,95

AISIN

 3
16371 - PULLEY, FAN
16371-15050

5AF..AE91..4F..DX;5AF..AE91..FXG,FXL,G,TX;4AF#,5AFE..AE91,95..FXG,FXL,FXV,LT,TX

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
16371-15060

5AFE..AE91..DX,FXG,FXL,FXV,LT,TX;4AF#,5AF..AE91,95..DX,FXG,FXL,G,TX

 1
Common parts
91511-60835
91621-60612
92122-60816
Linked diagrams
1603
