AE91-AGMGK (1987)
Toyota Corolla

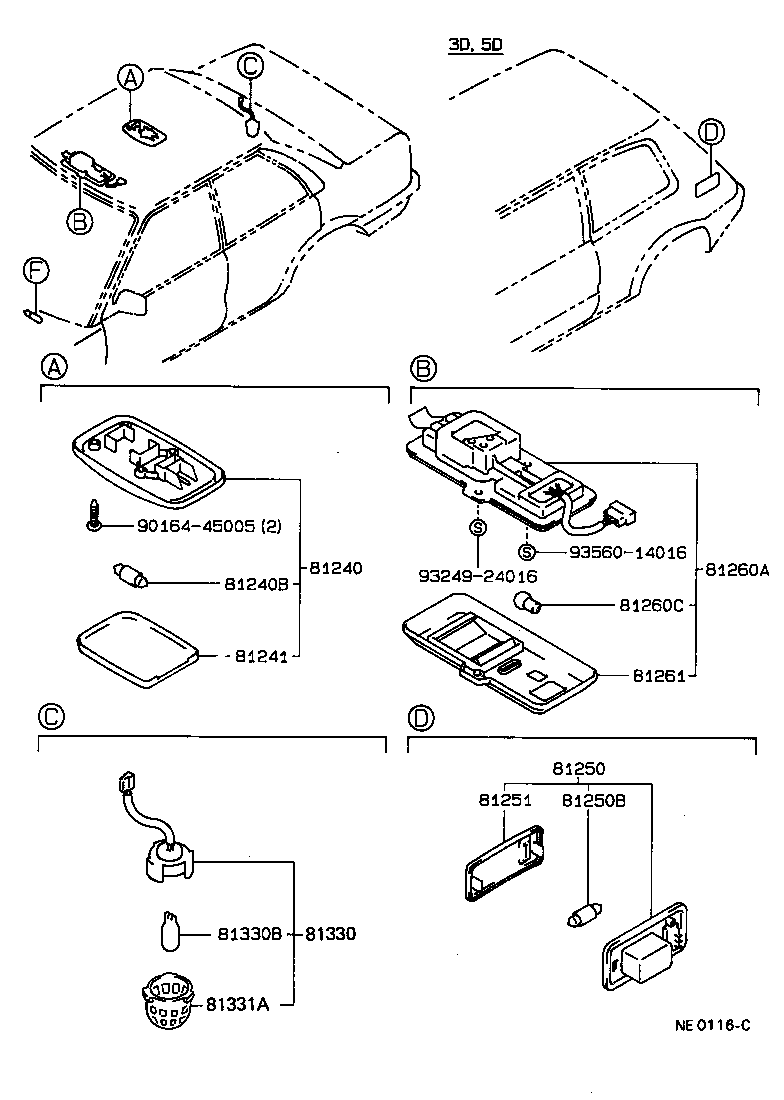

ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-1202003 |
AE9#,CE90,EE90 LIGHT GRAY,TRIM1# |
1 | ||
| 81240-1202005 |
AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE LIGHT BEIGE,TRIM4# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AE9#,CE9#,EE9# 12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-12020 |
AE9#,CE9#,EE9# |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-1203003 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI SHADOW GRAY,TRIM1# |
1 | ||
| 81250-1203005 |
AE91,EE90..FXG,FXL,FXZI DARK BEIGE,TRIM4# |
1 | ||
| 81250-1602023 |
AE91..G LIGHT GRAY,TRIM1# |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
AE91,92,CE96,97,EE9#..FXG,FXGT,FXL,FXZI,G,GL 12V 5W |
1 | ||
| 99132-13050 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI 12V 5W |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81251-14030 |
AE91,CE96,EE97,98..G,GL |
1 | ||
| 81251-12030 |
AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
1 | ||
| 81251-14030 |
AE91,CE96,97,EE96,97,98..G,GL |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-1604005 |
AE91,95,CE90..FXG,FXZI,SE LIGHT BEIGE,TRIM4# |
1 | ||
| 81260-1604003 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE LIGHT GRAY,TRIM1# |
1 | ||
| 81260-16040E0 |
AE91,95,CE90..FXG,FXZI,SE LIGHT BEIGE,TRIM4# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE 12V 10W |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2006113 |
AE9#,CE90..FXG,FXGT,FXZI,GT,SE LIGHT GRAY,TRIM1# |
1 | ||
| 81261-2006105 |
AE91,95,CE90..FXG,FXZI,SE LIGHT BEIGE,TRIM4# |
1 | ||
| 81261-20061E0 |
AE91,95,CE90..FXG,FXZI,SE LIGHT BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90164-45005 | ||||
| 93249-24016 | ||||
| 93560-14016 | ||||

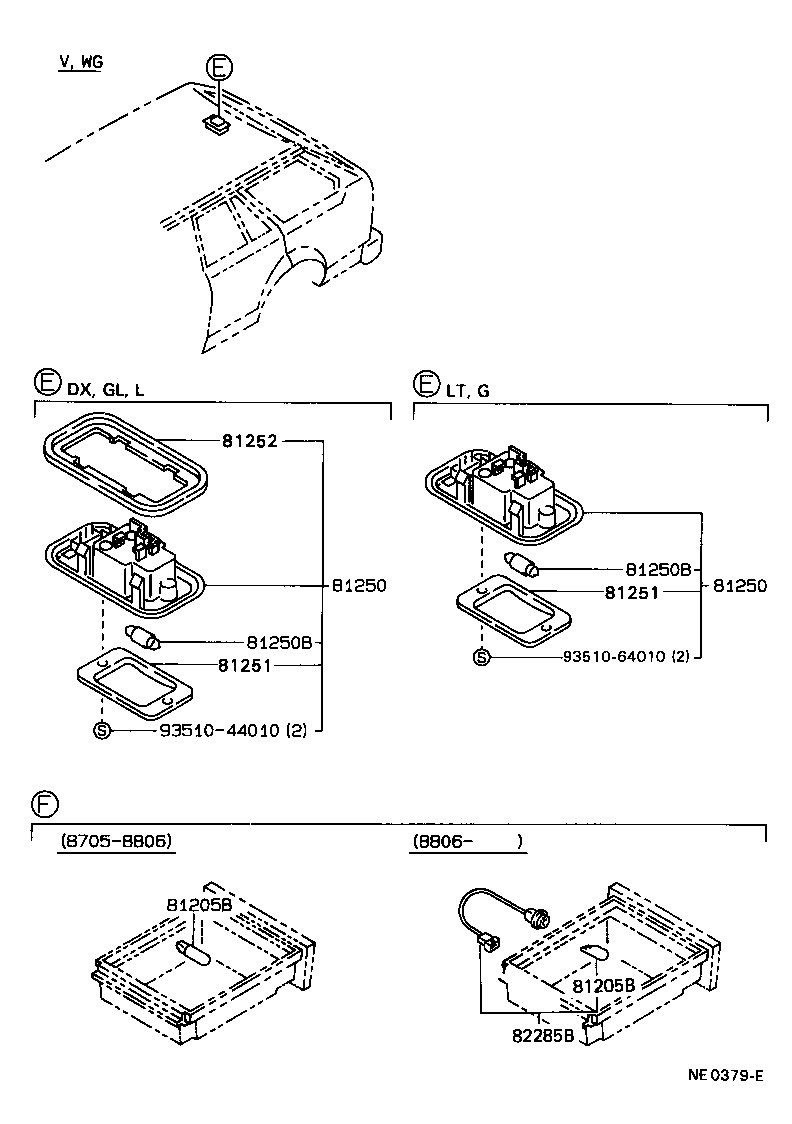

ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
AE9#,CE9#,EE9# 14V 1.4W |
1 | ||
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
AE9#,CE9#,EE9# 14V 1.4W |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-1203003 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI SHADOW GRAY,TRIM1# |
1 | ||
| 81250-1203005 |
AE91,EE90..FXG,FXL,FXZI DARK BEIGE,TRIM4# |
1 | ||
| 81250-1602023 |
AE91..G LIGHT GRAY,TRIM1# |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-1203003 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI SHADOW GRAY,TRIM1# |
1 | ||
| 81250-1203005 |
AE91,EE90..FXG,FXL,FXZI DARK BEIGE,TRIM4# |
1 | ||
| 81250-1602023 |
AE91..G LIGHT GRAY,TRIM1# |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
AE91,92,CE96,97,EE9#..FXG,FXGT,FXL,FXZI,G,GL 12V 5W |
1 | ||
| 99132-13050 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI 12V 5W |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
AE91,92,CE96,97,EE9#..FXG,FXGT,FXL,FXZI,G,GL 12V 5W |
1 | ||
| 99132-13050 |
AE91,92,EE90..FXG,FXGT,FXL,FXZI 12V 5W |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81251-14030 |
AE91,CE96,EE97,98..G,GL |
1 | ||
| 81251-12030 |
AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
1 | ||
| 81251-14030 |
AE91,CE96,97,EE96,97,98..G,GL |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81251-14030 |
AE91,CE96,EE97,98..G,GL |
1 | ||
| 81251-12030 |
AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
1 | ||
| 81251-14030 |
AE91,CE96,97,EE96,97,98..G,GL |
1 | ||
| Common parts | ||||
| 93510-44010 | ||||
| 93510-64010 | ||||
