AE91-AGMGK (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4AGE,4AF#,5AF#

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8705-8908)5AF

Click highlighted areas on diagram

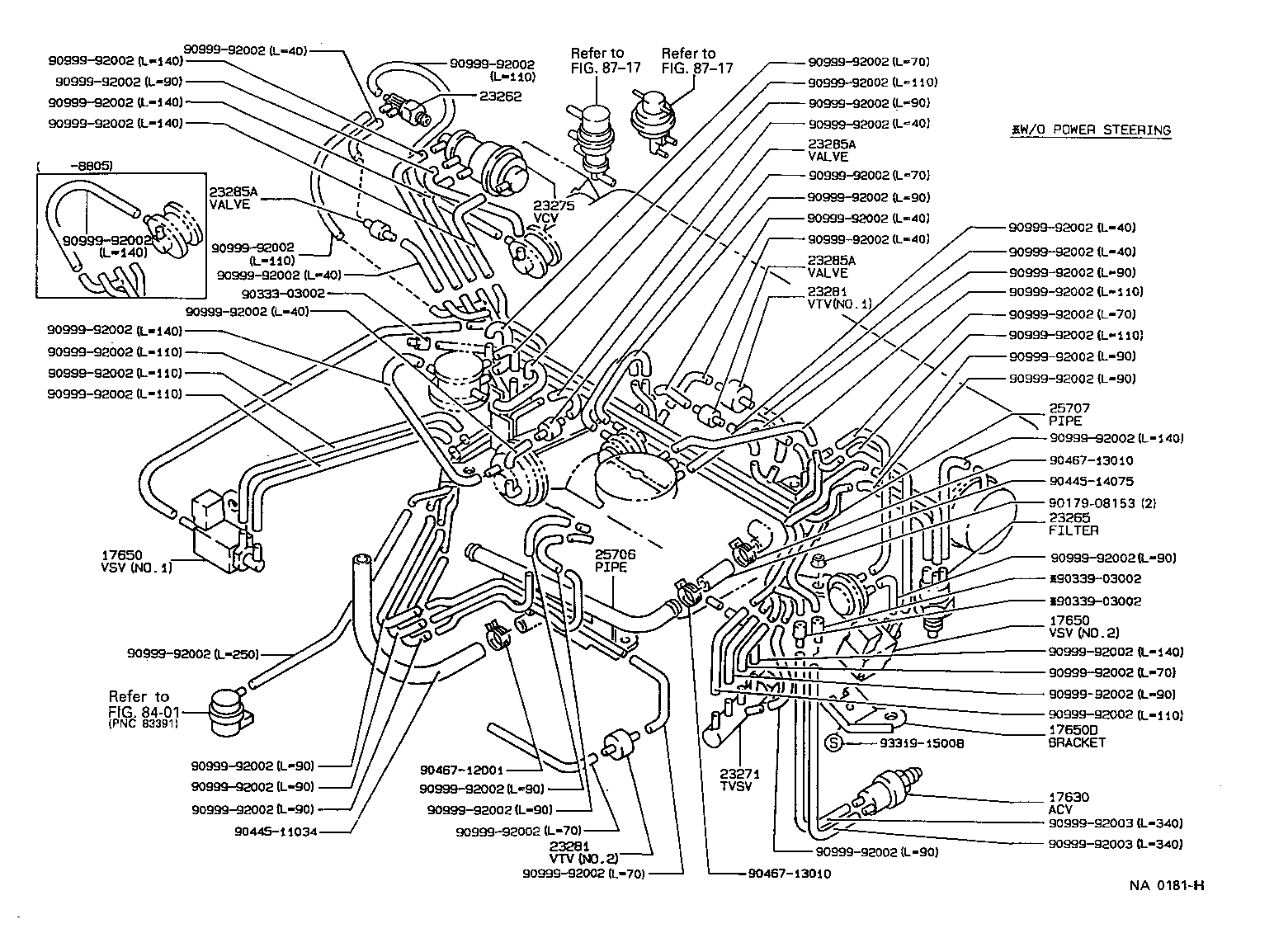

diagram 17630 17650 17650 17650D 23262 23265 23271 23275 23281 23281 23285A 23285A 23285A 25706 25707 8401 8717 8717 9017908153 9033303002 9033903002 9033903002 9044511034 9044514075 9046712001 9046713010 9046713010 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9331915008
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-15021

4AF,5AF..AE91,95..FXG,FXL,G,SE,TX,XE

 1
17630-15050

5AFE,5AFHE..AE91..FXVS,FXZI,FXZS,G,SE,XE

NO.2

 1
17630-15040

5AFE..AE91

NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12026

4AF,5AF..AE91,95

NO.1

 1
90910-12055

4AF,5AF..AE91,95

NO.2

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12026

4AF,5AF..AE91,95

NO.1

 1
90910-12055

4AF,5AF..AE91,95

NO.2

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
25861-15010

4AF,5AF..AE91,95

 1
23265 - FILTER, GAS, NO.1
90917-11021

5AFE..AE91

 1
90917-11027

4AGE,5AF..AE91,92

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02082

4AF,5AF..AE91,95

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03135

5AF..AE91

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01101

5AF..AE91

NO.1

 1
90925-01100

5AF..AE91

NO.2

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01101

5AF..AE91

NO.1

 1
90925-01100

5AF..AE91

NO.2

 1
23285A - VALVE, CHECK, NO.1
90917-10049

5AF..AE91..MTM

ｱﾘ(ｴｱｺﾝ)

 1
90917-10049

5AF..AE91..FXG,FXL,G

 2
23285A - VALVE, CHECK, NO.1
90917-10049

5AF..AE91..MTM

ｱﾘ(ｴｱｺﾝ)

 1
90917-10049

5AF..AE91..FXG,FXL,G

 2
23285A - VALVE, CHECK, NO.1
90917-10049

5AF..AE91..MTM

ｱﾘ(ｴｱｺﾝ)

 1
90917-10049

5AF..AE91..FXG,FXL,G

 2
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-15210

5AF..AE91

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-15180

5AF..AE91

 1
Common parts
90179-08153
90333-03002
90339-03002
90445-11034
90445-14075
90467-12001
90467-13010
90999-92002
90999-92003
93319-15008
Linked diagrams
8401
8717

(8705-8905)5AFE

Click highlighted areas on diagram

diagram 17303B 17341B 17341D 17342B 17630 17630 23265 9017906143 9033907016 9044510026 9099992002 9099992002 9099992002 91621B0612 91621B0612
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-15050

5AFE..AE91

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-15130

5AFE..AE91

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-15150

5AFE..AE91

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-15070

5AFE..AE91

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15021

4AF,5AF..AE91,95..FXG,FXL,G,SE,TX,XE

 1
17630-15050

5AFE,5AFHE..AE91..FXVS,FXZI,FXZS,G,SE,XE

NO.2

 1
17630-15040

5AFE..AE91

NO.1

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15021

4AF,5AF..AE91,95..FXG,FXL,G,SE,TX,XE

 1
17630-15050

5AFE,5AFHE..AE91..FXVS,FXZI,FXZS,G,SE,XE

NO.2

 1
17630-15040

5AFE..AE91

NO.1

 1
23265 - FILTER, GAS, NO.1
90917-11021

5AFE..AE91

 1
90917-11027

4AGE,5AF..AE91,92

 1
Common parts
90179-06143
90339-07016
90445-10026
90999-92002
91621-B0612
