AE91-AGMGH (1989)

Toyota Corolla

Production May 1989 - May 1992
Engine 5AFHE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8905- )3D

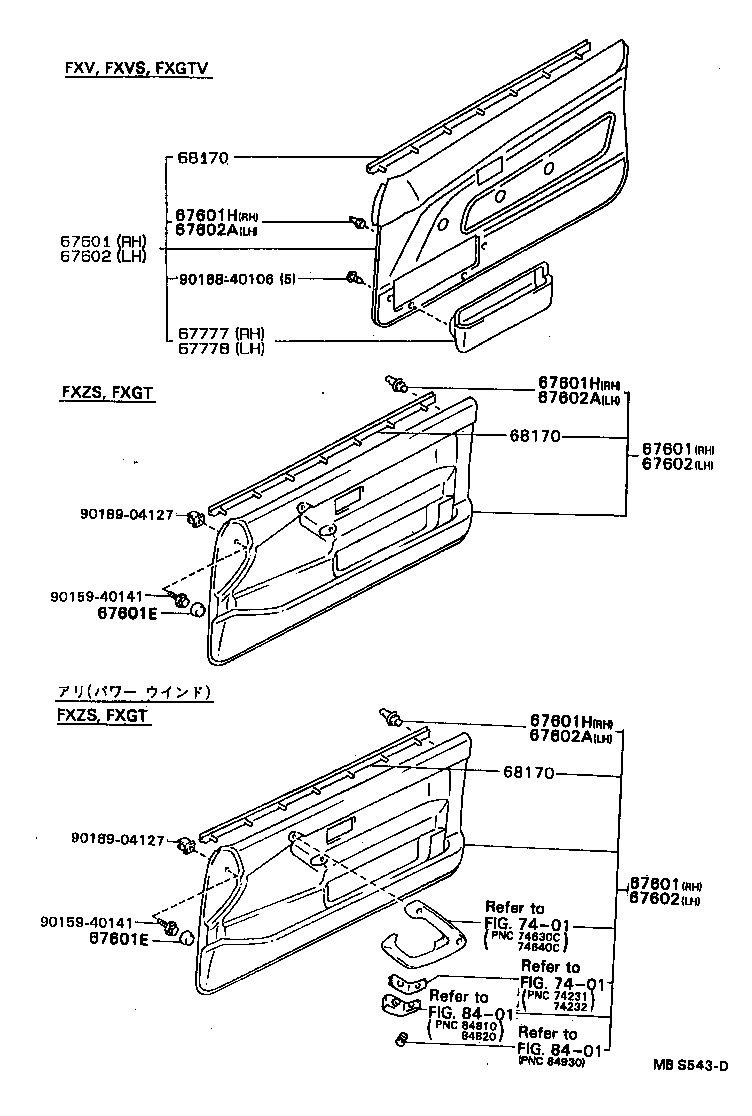

Click highlighted areas on diagram

diagram 67601 67601 67601 67601E 67601E 67601H 67601H 67601H 67602 67602 67602 67602A 67602A 67602A 67777 67778 68170 68170 68170 7401 7401 8401 8401 9015940141 9015940141 9016840106 9018904127 9018904127
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1E32004

AE91..G

DARK BLUE,TRIM8#

 1
67610-1E32003

AE91..G

SHADOW GRAY,TRIM1#

 1
67610-1E64003

AE91..3D..FXZS

SHADOW GRAY,TRIM1#

 1
67610-1E65004

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
67610-1E65003

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
67610-1E64004

AE91..3D..FXZS

DARK BLUE,TRIM8#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1E32004

AE91..G

DARK BLUE,TRIM8#

 1
67610-1E32003

AE91..G

SHADOW GRAY,TRIM1#

 1
67610-1E64003

AE91..3D..FXZS

SHADOW GRAY,TRIM1#

 1
67610-1E65004

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
67610-1E65003

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
67610-1E64004

AE91..3D..FXZS

DARK BLUE,TRIM8#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1E32004

AE91..G

DARK BLUE,TRIM8#

 1
67610-1E32003

AE91..G

SHADOW GRAY,TRIM1#

 1
67610-1E64003

AE91..3D..FXZS

SHADOW GRAY,TRIM1#

 1
67610-1E65004

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
67610-1E65003

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
67610-1E64004

AE91..3D..FXZS

DARK BLUE,TRIM8#

 1
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-1000213

AE9#,CE90,95..FXG,FXGT,FXZI,FXZS,G,GT,SE

SHADOW GRAY,TRIM1#

 2
90339-10002J1

AE91,95,CE90,95..(3D,4D,WG)..(FXZS,G,SE)..(DSL,EFI,EFIS)

DARK BLUE,TRIM8#

 2
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-1000213

AE9#,CE90,95..FXG,FXGT,FXZI,FXZS,G,GT,SE

SHADOW GRAY,TRIM1#

 2
90339-10002J1

AE91,95,CE90,95..(3D,4D,WG)..(FXZS,G,SE)..(DSL,EFI,EFIS)

DARK BLUE,TRIM8#

 2
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE91..3D..FXZS

 4
67771-12040

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

 9
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE91..3D..FXZS

 4
67771-12040

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

 9
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE91..3D..FXZS

 4
67771-12040

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

 9
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H50004

AE91..G

DARK BLUE,TRIM8#

 1
67620-1H75003

AE91..3D..FXZS

SHADOW GRAY,TRIM1#

 1
67620-1H50003

AE91..G

SHADOW GRAY,TRIM1#

 1
67620-1H76004

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
67620-1H75004

AE91..3D..FXZS

DARK BLUE,TRIM8#

 1
67620-1H76003

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H50004

AE91..G

DARK BLUE,TRIM8#

 1
67620-1H75003

AE91..3D..FXZS

SHADOW GRAY,TRIM1#

 1
67620-1H50003

AE91..G

SHADOW GRAY,TRIM1#

 1
67620-1H76004

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
67620-1H75004

AE91..3D..FXZS

DARK BLUE,TRIM8#

 1
67620-1H76003

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1H50004

AE91..G

DARK BLUE,TRIM8#

 1
67620-1H75003

AE91..3D..FXZS

SHADOW GRAY,TRIM1#

 1
67620-1H50003

AE91..G

SHADOW GRAY,TRIM1#

 1
67620-1H76004

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
67620-1H75004

AE91..3D..FXZS

DARK BLUE,TRIM8#

 1
67620-1H76003

AE91..3D..FXZS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

 9
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

 9
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

 9
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12120

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

左側

 1
68171-12190

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

右側

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12120

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

左側

 1
68171-12190

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

右側

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12120

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

左側

 1
68171-12190

AE91,92..3D..(FXG,FXGT,FXZI,FXZS)

右側

 1
Common parts
90159-40141
90168-40106
90189-04127
Linked diagrams
7401
8401
