Toyota Corolla AE91 VACUUM PIPING

AE91-AGMGH (1989)

Toyota Corolla

Production May 1989 - May 1992

Engine 5AFHE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

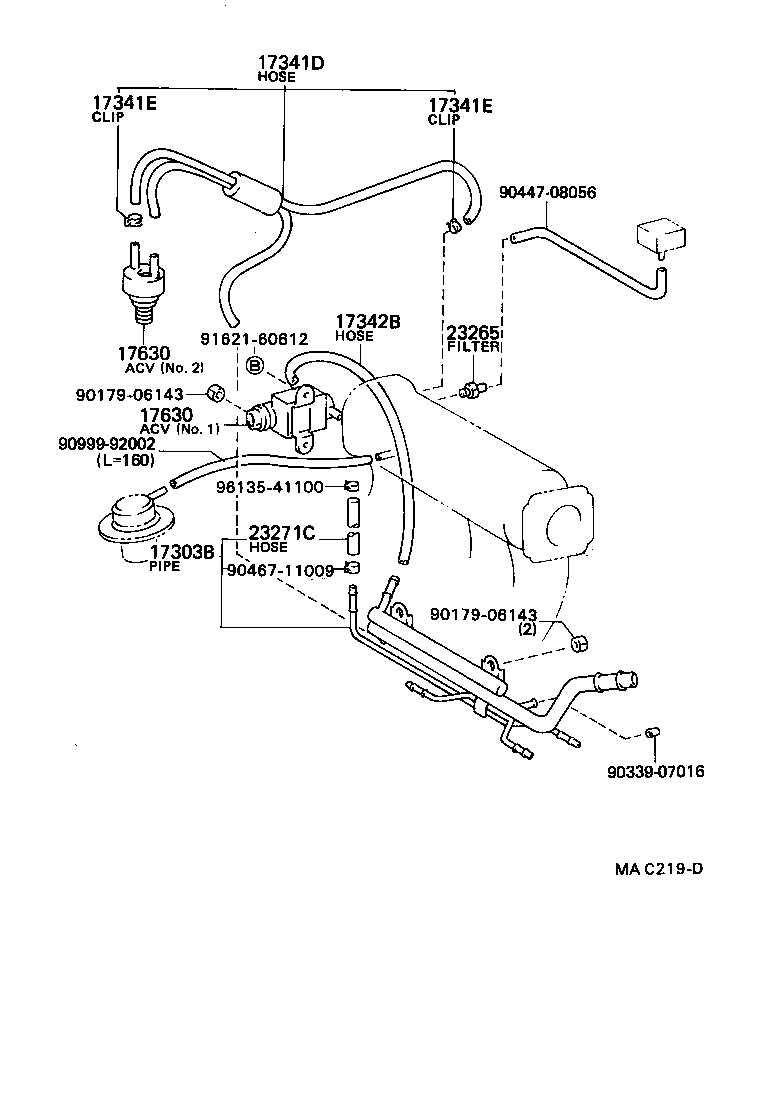

(8905- )5AFHE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-16131	5AFE,5AFHE..AE91	05/1989 - 05/1992	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17302-16010	5AFE,5AFHE..AE91..FXG,FXL,FXV,FXVS,FXZS,G,LT,SE,TX,XE	05/1989 - 05/1992	1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	5AFE,5AFHE..AE91..FXG,FXL,FXV,FXVS,FXZS,G,LT,SE,TX,XE	05/1989 - 11/1989	2
96132-30400	4AFE,5AF#..AE91,95..FXG,FXL,FXV,FXVS,FXZS,G,LT,SE,TX,XE	11/1989 - 05/1992	2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400	5AFE,5AFHE..AE91..FXG,FXL,FXV,FXVS,FXZS,G,LT,SE,TX,XE	05/1989 - 11/1989	2
96132-30400	4AFE,5AF#..AE91,95..FXG,FXL,FXV,FXVS,FXZS,G,LT,SE,TX,XE	11/1989 - 05/1992	2
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-10029	5AFE,5AFHE..AE91	05/1989 - 05/1992	1
17630 - VALVE ASSY, AIR CONTROL
17630-15021	4AF,5AF..AE91,95..FXG,FXL,G,SE,TX,XE	05/1987 - 08/1989	1
17630-15050	5AFE,5AFHE..AE91..FXVS,FXZI,FXZS,G,SE,XE NO.2	05/1987 - 05/1992	1
17630-15070	5AFE,5AFHE..AE91 NO.1	05/1989 - 05/1992	1
17630 - VALVE ASSY, AIR CONTROL
17630-15021	4AF,5AF..AE91,95..FXG,FXL,G,SE,TX,XE	05/1987 - 08/1989	1
17630-15050	5AFE,5AFHE..AE91..FXVS,FXZI,FXZS,G,SE,XE NO.2	05/1987 - 05/1992	1
17630-15070	5AFE,5AFHE..AE91 NO.1	05/1989 - 05/1992	1
23265 - FILTER, GAS, NO.1
90917-11027	4AGE,5AF..AE91,92	05/1987 - 05/1989	1
90917-11027	4AGE,5AF..AE91,92	05/1989 - 08/1989	1
90917-11022	4AFE..AE95..4FC;5AFE,5AFHE..AE91	05/1989 - 05/1992	1
23271C - HOSE, FUEL
95333-06020	5AFE,5AFHE..AE91	05/1989 - 05/1992	1
Common parts
90179-06143
90339-07016
90447-08056
90467-11009
90999-92002
91621-60612
96135-41100

(8705-8908)5AF

Click highlighted areas on diagram

Part #	Description	Period	Qty
17630 - VALVE ASSY, AIR CONTROL
17630-15021	4AF,5AF..AE91,95..FXG,FXL,G,SE,TX,XE	05/1987 - 08/1989	1
17630-15050	5AFE,5AFHE..AE91..FXVS,FXZI,FXZS,G,SE,XE NO.2	05/1987 - 05/1992	1
17630-15070	5AFE,5AFHE..AE91 NO.1	05/1989 - 05/1992	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12026	4AF,5AF..AE91,95 NO.1	05/1987 - 08/1989	1
90910-12055	4AF,5AF..AE91,95 NO.2	05/1987 - 08/1989	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12026	4AF,5AF..AE91,95 NO.1	05/1987 - 08/1989	1
90910-12055	4AF,5AF..AE91,95 NO.2	05/1987 - 08/1989	1
17650D - BRACKET, VACUUM SWITCHING VALVE
25861-15010	4AF,5AF..AE91,95	05/1987 - 08/1989	1
23265 - FILTER, GAS, NO.1
90917-11027	4AGE,5AF..AE91,92	05/1987 - 05/1989	1
90917-11027	4AGE,5AF..AE91,92	05/1989 - 08/1989	1
90917-11022	4AFE..AE95..4FC;5AFE,5AFHE..AE91	05/1989 - 05/1992	1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02082	4AF,5AF..AE91,95	05/1987 - 08/1989	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03135	5AF..AE91	05/1987 - 08/1989	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01101	5AF..AE91 NO.1	05/1987 - 08/1989	1
90925-01100	5AF..AE91 NO.2	05/1987 - 09/1991	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01101	5AF..AE91 NO.1	05/1987 - 08/1989	1
90925-01100	5AF..AE91 NO.2	05/1987 - 09/1991	1
23285A - VALVE, CHECK, NO.1
90917-10049	5AF..AE91..MTM ｱﾘ(ｴｱｺﾝ)	05/1987 - 08/1987	1
90917-10049	5AF..AE91..FXG,FXL,G	05/1987 - 05/1988	2
23285A - VALVE, CHECK, NO.1
90917-10049	5AF..AE91..MTM ｱﾘ(ｴｱｺﾝ)	05/1987 - 08/1987	1
90917-10049	5AF..AE91..FXG,FXL,G	05/1987 - 05/1988	2
23285A - VALVE, CHECK, NO.1
90917-10049	5AF..AE91..MTM ｱﾘ(ｴｱｺﾝ)	05/1987 - 08/1987	1
90917-10049	5AF..AE91..FXG,FXL,G	05/1987 - 05/1988	2
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-15210	5AF..AE91	05/1987 - 08/1989	1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-15180	5AF..AE91	05/1987 - 05/1988	1
Common parts
90179-08153
90333-03002
90339-03002
90445-11034
90445-14075
90467-12001
90467-13010
90999-92002
90999-92003
93319-15008
