AE91-AGKNU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D

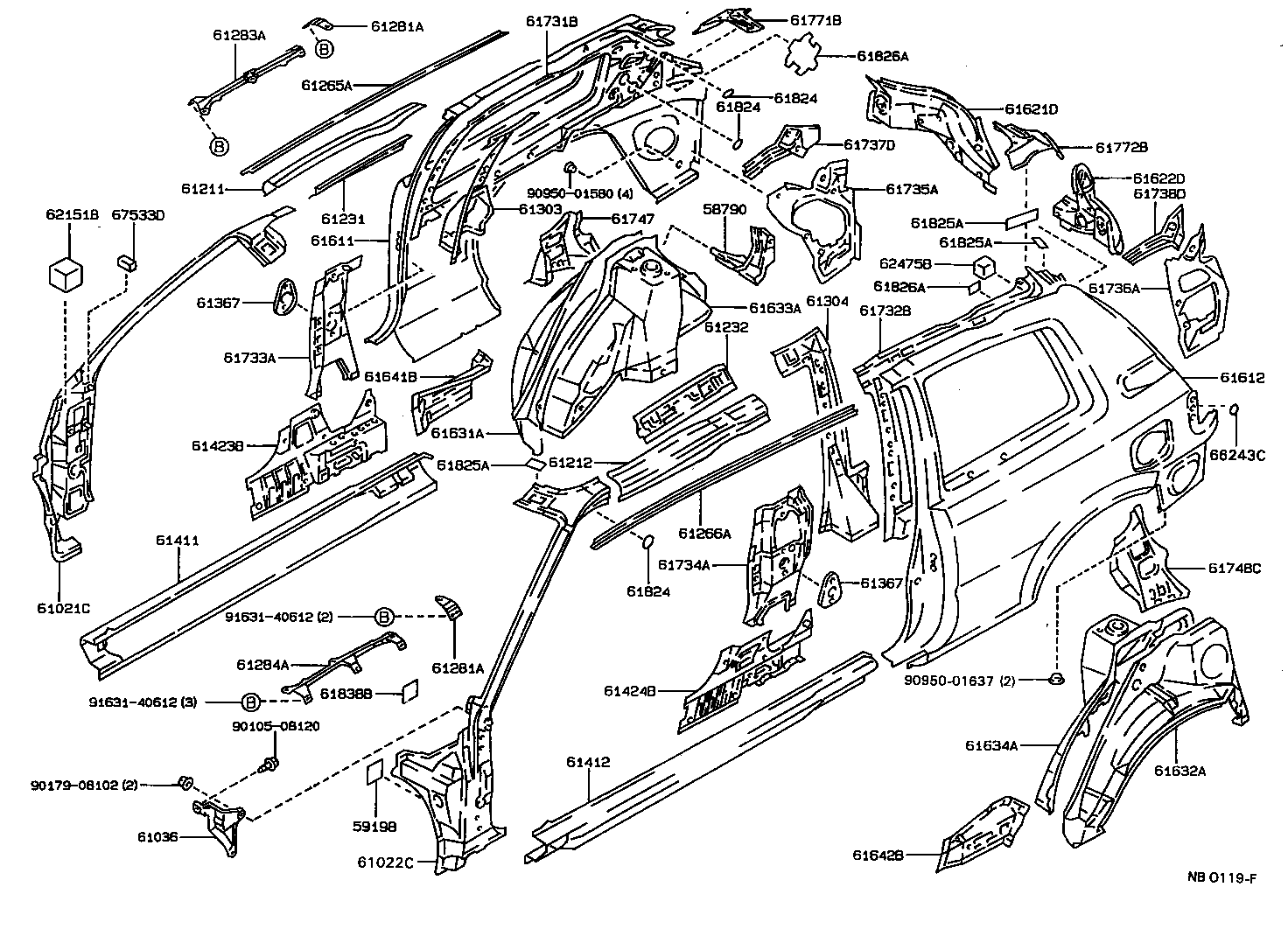

Click highlighted areas on diagram

diagram 58790 59198 61021C 61022C 61036 61211 61212 61231 61232 61265A 61266A 61281A 61281A 61283A 61284A 61303 61304 61367 61367 61411 61412 61423B 61424B 61611 61612 61621D 61622D 61631A 61632A 61633A 61634A 61641B 61642B 61731B 61732B 61733A 61734A 61735A 61736A 61737D 61738D 61747 61748C 61771B 61772B 61824 61824 61824 61825A 61825A 61825A 61826A 61826A 61838B 62151B 62475B 66243C 67533D 9010508120 9017908102 9095001580 9095001637 9163140612 9163140612
Part # Description Qty Price
58790 - CARRIER ASSY, JACK
58790-12050

AE91,92,EE90..3D,5D

 1
59198 - SEAL, NOISE SHUTTER
59198-12010

AE9#,CE90,95,97,EE90,97

 1
61021C - PILLAR SUB-ASSY, FRONT BODY, RH
61021-12780

AE91..FXZI;AE91,CE90..(3D,4D,5D)..(CBR,DSL);AE92,95,EE90..DX,FXD,FXGT,FXL,GT,TX,XE

 1
61021-12780

AE9#,CE90,EE90..3D,4D,5D

 1
61022C - PILLAR SUB-ASSY, FRONT BODY, LH
61022-12790

AE91..FXZI;AE91,CE90..(3D,4D,5D)..(CBR,DSL);AE92,95,EE90..DX,FXD,FXGT,FXL,GT,TX,XE

 1
61022-12790

AE9#,CE90,EE90..3D,4D,5D

 1
61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61036-12040

AE9#,CE9#,EE9#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-12240

AE91,92,EE90..3D

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-12240

AE91,92,EE90..3D

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-12470

AE91,92,EE90..3D

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-12400

AE91,92,EE90..3D

 1
61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH
61265-12130

AE91,92,EE90..3D

 1
61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH
61266-12130

AE91,92,EE90..3D

 1
61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61303-12070

AE91,92,EE90..3D

 1
61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61304-12060

AE91,92,EE90..3D

 1
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-14010

AE91,92,EE90..3D

 1
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-14010

AE91,92,EE90..3D

 1
61411 - PANEL, ROCKER, OUTER RH
61411-12380

AE91,92,EE90..3D

 1
61412 - PANEL, ROCKER, OUTER LH
61412-12370

AE91,92,EE90..3D

 1
61423B - REINFORCEMENT, ROCKER PANEL, NO.3 RH
61423-12040

AE91,92,EE90..3D

 1
61424B - REINFORCEMENT, ROCKER PANEL, NO.3 LH
61424-12030

AE91,92,EE90..3D

 1
61611 - PANEL, QUARTER, RH
61611-12925

AE91,92,EE90..3D

 1
61612 - PANEL, QUARTER, LH
61612-12910

AE91,92,EE90..3D..(FXG,FXGT,FXL,FXZI)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
61612-12908

AE91,92,EE90..3D..(FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS)

 1
61621D - TROUGH, BACK DOOR OPENING, RH
61621-12901

AE91,92,EE90..3D,5D

 1
61622D - TROUGH, BACK DOOR OPENING, LH
61622-12901

AE91,92,EE90..3D,5D

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-12230

AE9#,CE90,95,EE90..3D,4D,5D

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-12230

AE91,92,CE90,EE90..3D,4D,5D

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-12210

AE91,92,EE90..FXD,FXGTV,FXL,FXV,FXVS

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-12220

AE91,92,EE90..FXD,FXGTV,FXL,FXV,FXVS

 1
61641B - GUSSET, QUARTER WHEEL HOUSE, RH
61641-12050

AE91,92,EE90..3D

 1
61642B - GUSSET, QUARTER WHEEL HOUSE, LH
61642-12050

AE91,92,EE90..3D

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-12908

AE91,92,EE90..3D

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-12908

AE91,92,EE90..3D

 1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-12130

AE91,92,EE90..3D

 1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-12130

AE91,92,EE90..3D

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-12270

AE91,92,EE90..3D,5D

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-12240

AE91,92,EE90..3D,5D

 1
61737D - REINFORCEMENT, ROOF SIDE, INNER RH
61737-12100

AE91..FXG..EFI;AE91..3D..(FXG,FXZI);AE91,92,EE90..FXD,FXGT,FXGTV,FXL,FXV,FXVS,FXZS

 1
61738D - REINFORCEMENT, ROOF SIDE, INNER LH
61738-12110

AE91,92,EE90..3D,5D

 1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-12120

AE91,92,EE90..3D

 1
61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61748-12120

AE91,92,EE90..3D

 1
61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH
61771-12010

AE91,92,EE90..3D,5D

 1
61772B - FRAME, BACK DOOR OPENING UPPER CORNER, LH
61772-12010

AE91,92,EE90..3D,5D

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-12020

AE9#,CE90,EE90..3D,4D,5D

 6
61824-12020

AE9#,CE90,97,EE90,97

 2
61824 - PLATE, NOISE CONTROL, NO.1
61824-12020

AE9#,CE90,EE90..3D,4D,5D

 6
61824-12020

AE9#,CE90,97,EE90,97

 2
61824 - PLATE, NOISE CONTROL, NO.1
61824-12020

AE9#,CE90,EE90..3D,4D,5D

 6
61824-12020

AE9#,CE90,97,EE90,97

 2
61825A - PLATE, NOISE CONTROL, NO.2
61825-12010

AE9#,CE90,95,97,EE90,97

 2
61825-12010

AE91,92,EE90..3D,5D

90 X 65

 2
61825-12020

AE91,92,EE90..3D,5D

50 X 160

 2
61825-12020

AE91,92,EE90..3D,5D

90 X 65

 2
61825A - PLATE, NOISE CONTROL, NO.2
61825-12010

AE9#,CE90,95,97,EE90,97

 2
61825-12010

AE91,92,EE90..3D,5D

90 X 65

 2
61825-12020

AE91,92,EE90..3D,5D

50 X 160

 2
61825-12020

AE91,92,EE90..3D,5D

90 X 65

 2
61825A - PLATE, NOISE CONTROL, NO.2
61825-12010

AE9#,CE90,95,97,EE90,97

 2
61825-12010

AE91,92,EE90..3D,5D

90 X 65

 2
61825-12020

AE91,92,EE90..3D,5D

50 X 160

 2
61825-12020

AE91,92,EE90..3D,5D

90 X 65

 2
61826A - PLATE, NOISE CONTROL, NO.3
61826-12020

AE91,92,EE90..3D,5D

65X40

 2
61826-12020

AE91..G

 2
61826-12030

AE91,92,EE90..3D,5D

180X196

 2
61826A - PLATE, NOISE CONTROL, NO.3
61826-12020

AE91,92,EE90..3D,5D

65X40

 2
61826-12020

AE91..G

 2
61826-12030

AE91,92,EE90..3D,5D

180X196

 2
61838B - PLATE, NOISE CONTROL, NO.5
61838-12010

AE9#,CE90,95,97,EE90,97

 2
62151B - PAD, COWL SIDE SILENCER
62151-12100

AE9#,CE90,95,97,EE90,97

 4
62475B - SEAL, ROOF SIDE, INNER
62475-12040

AE91,92,EE90..3D,5D

 2
67533D - PAD, FRONT DOOR LOWER FRAME GARNISH, RH
67533-12010

AE9#,CE90,95,97,EE90,97

 2
Common parts
90105-08120
90179-08102
90950-01580
90950-01637
91631-40612
