AE91-AGHNU (1987)
Toyota Corolla

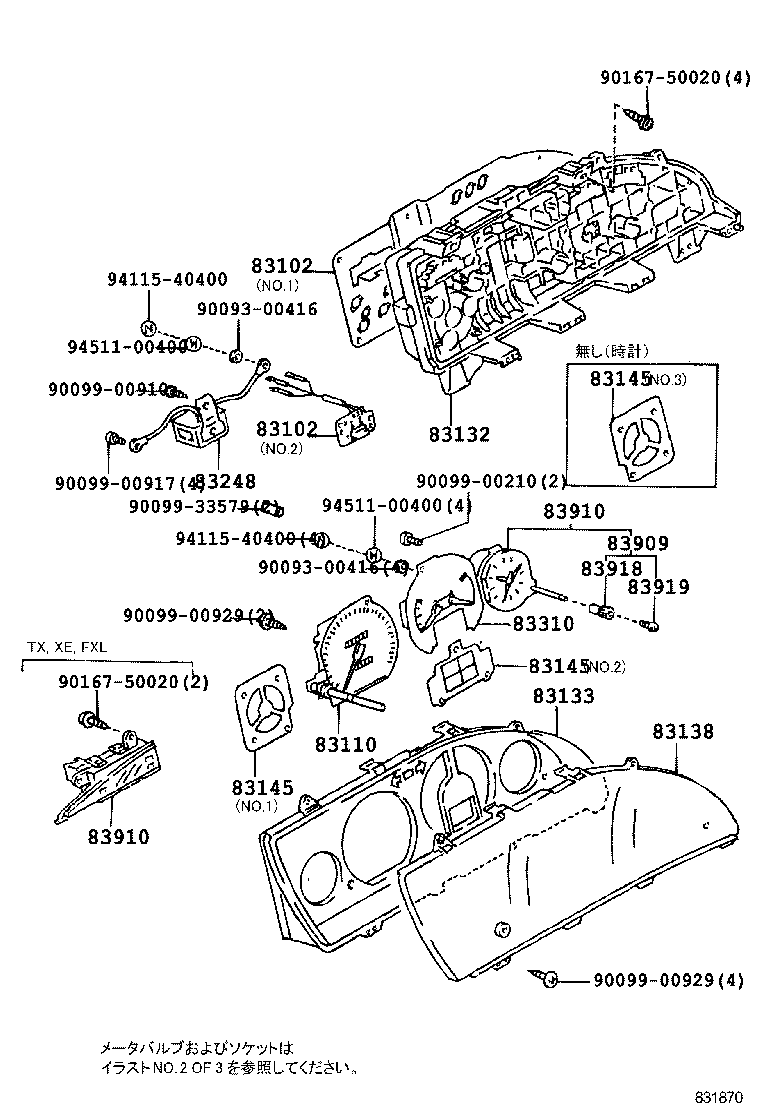

ILLUST NO. 1 OF 3(8705- )CTD,DX,FXD,FXL,GL,L,STD,TX,XE
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ,ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E240 |
AE95..5F..(TX,XE);AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE NO.1 |
1 | ||
| 83247-1E480 |
AE95..5F..SE;AE91..FXG,G,SE NO.1 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E240 |
AE95..5F..(TX,XE);AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE NO.1 |
1 | ||
| 83247-1E480 |
AE95..5F..SE;AE91..FXG,G,SE NO.1 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A800 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 83110-1A840 |
AE91,95..FXG,G,SE |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A190 |
AE91,95,CE9#,EE9#..CTD,DX,FXD,FXL,GL,L,STD,TX,XE |
1 | ||
| 83132-1A250 |
AE91,95,CE90,95..(FXG,FXV,G,LT,SE)..(CBR,DSL,EFI) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A770 |
AE95..5F..SE;AE91..(FXG,FXV,G,LT,SE)..(CBR,EFI) |
1 | ||
| 83133-1A710 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-12890 |
AE91,95,CE9#,EE9#..FXL,GL,TX,XE ｱﾘ(ｱﾅﾛｸﾞ ｸﾛﾂｸ) |
1 | ||
| 83138-1A010 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E290 |
AE91,95,EE90,97..(3FC,4F,5F)..(FXL,GL,XE) NO.1 |
1 | ||
| 83145-1E390 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E290 |
AE91,95,EE90,97..(3FC,4F,5F)..(FXL,GL,XE) NO.1 |
1 | ||
| 83145-1E390 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E290 |
AE91,95,EE90,97..(3FC,4F,5F)..(FXL,GL,XE) NO.1 |
1 | ||
| 83145-1E390 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.2 |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-12060 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 86640-12100 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A270 |
AE91,95,EE9#..(3FC,4F,5F)..(DX,FXD,FXL,GL,STD,TX,XE) |
1 | ||
| 83243-1A230 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-12320 |
AE95..5F..(TX,XE);AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12400 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83910-12390 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12400 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83910-12390 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 83918 - KNOB, CLOCK | ||||
| 83918-12320 |
AE95..5F..(TX,XE);AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12320 |
AE95..5F..(TX,XE);AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00210 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-33579 | ||||
| 90167-50020 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

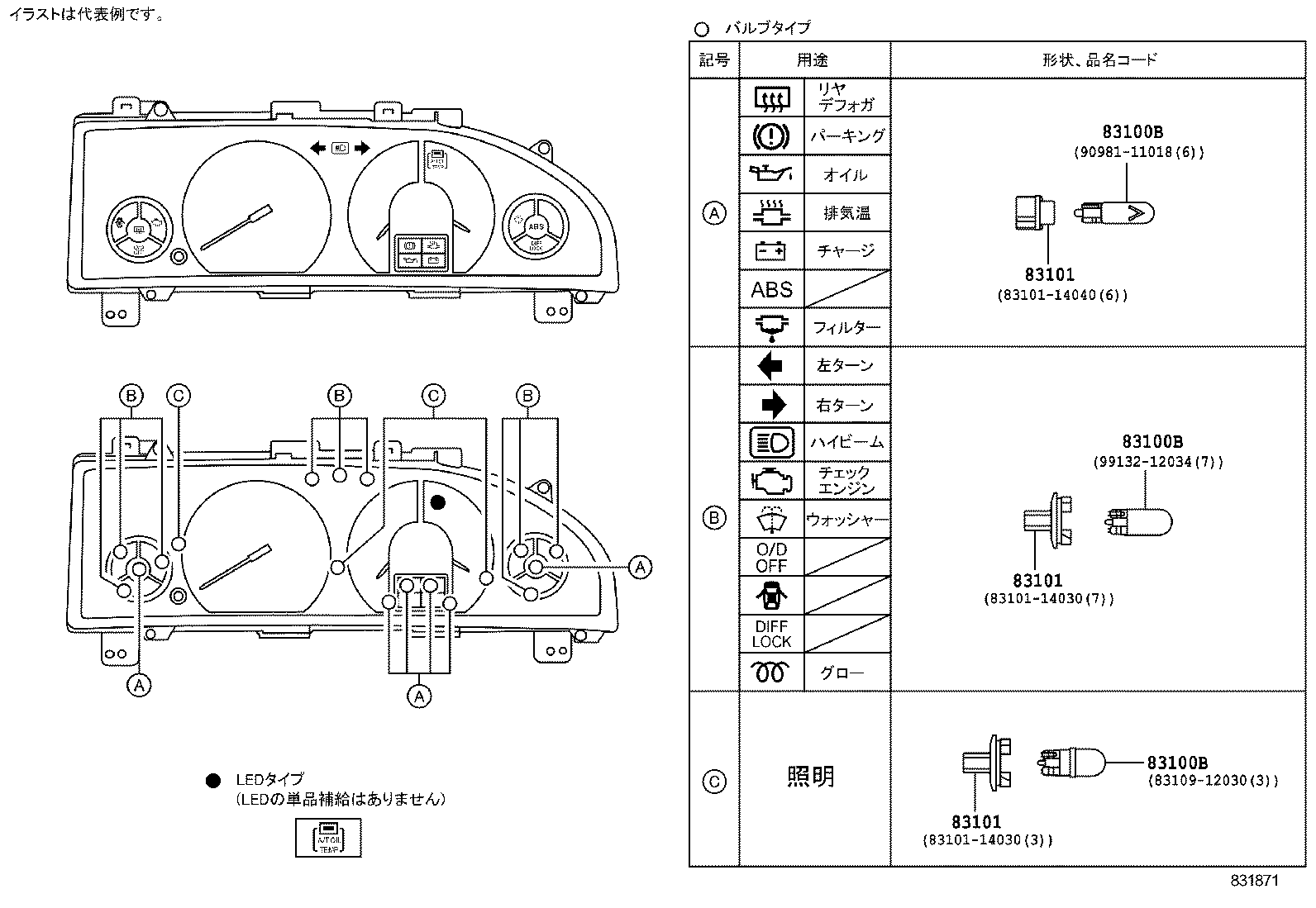

ILLUST NO. 2 OF 3(8705- )CTD,DX,FXD,FXL,GL,L,STD,TX,XE
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ,ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||

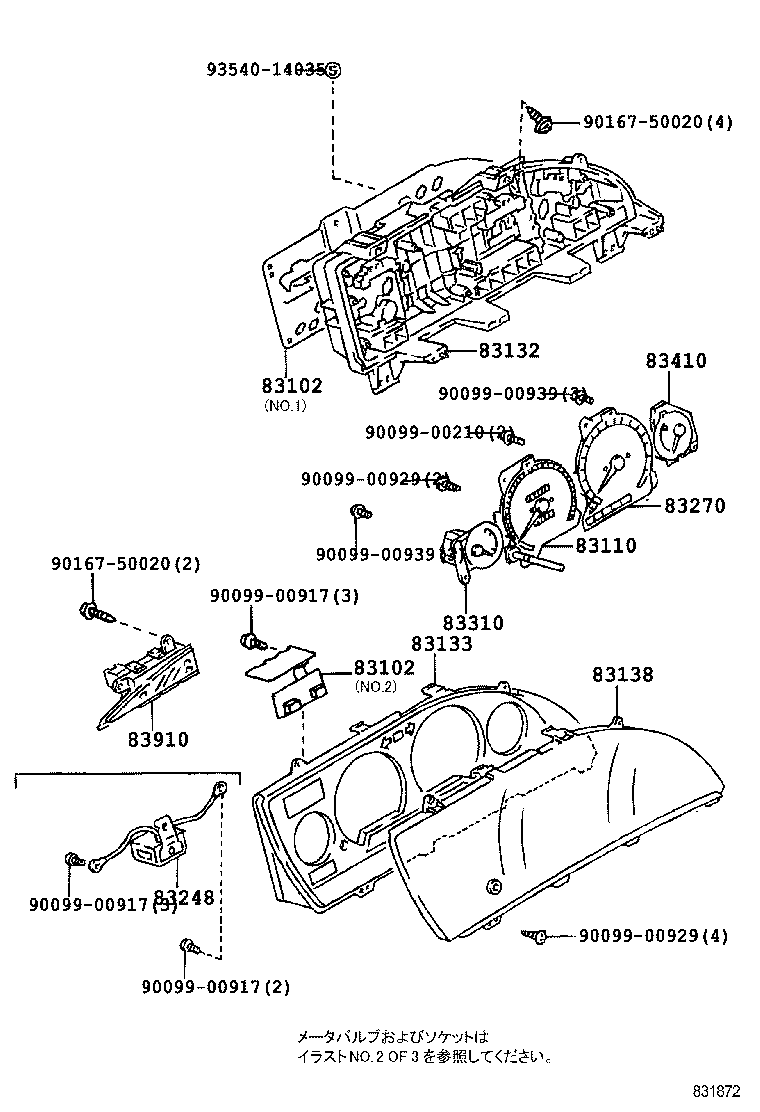

ILLUST NO. 1 OF 3(8705- )FXG,FXV,G,LT,SE,XE
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ,ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E240 |
AE95..5F..(TX,XE);AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE NO.1 |
1 | ||
| 83247-1E480 |
AE95..5F..SE;AE91..FXG,G,SE NO.1 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E240 |
AE95..5F..(TX,XE);AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE NO.1 |
1 | ||
| 83247-1E480 |
AE95..5F..SE;AE91..FXG,G,SE NO.1 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A840 |
AE91,95..FXG,G,SE |
1 | ||
| 83110-1A800 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A190 |
AE91,95,CE9#,EE9#..CTD,DX,FXD,FXL,GL,L,STD,TX,XE |
1 | ||
| 83132-1A250 |
AE91,95,CE90,95..(FXG,FXV,G,LT,SE)..(CBR,DSL,EFI) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A770 |
AE95..5F..SE;AE91..(FXG,FXV,G,LT,SE)..(CBR,EFI) |
1 | ||
| 83133-1A710 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-12890 |
AE91,95,CE9#,EE9#..FXL,GL,TX,XE ｱﾘ(ｱﾅﾛｸﾞ ｸﾛﾂｸ) |
1 | ||
| 83138-1A010 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-12060 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 86640-12100 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1E030 |
AE91,95..FXG,G,SE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A270 |
AE91,95,EE9#..(3FC,4F,5F)..(DX,FXD,FXL,GL,STD,TX,XE) |
1 | ||
| 83243-1A230 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A650 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12400 |
AE91,95,CE90..FXG,G,SE |
1 | ||
| 83910-12390 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90167-50020 | ||||
| 93540-14035 | ||||

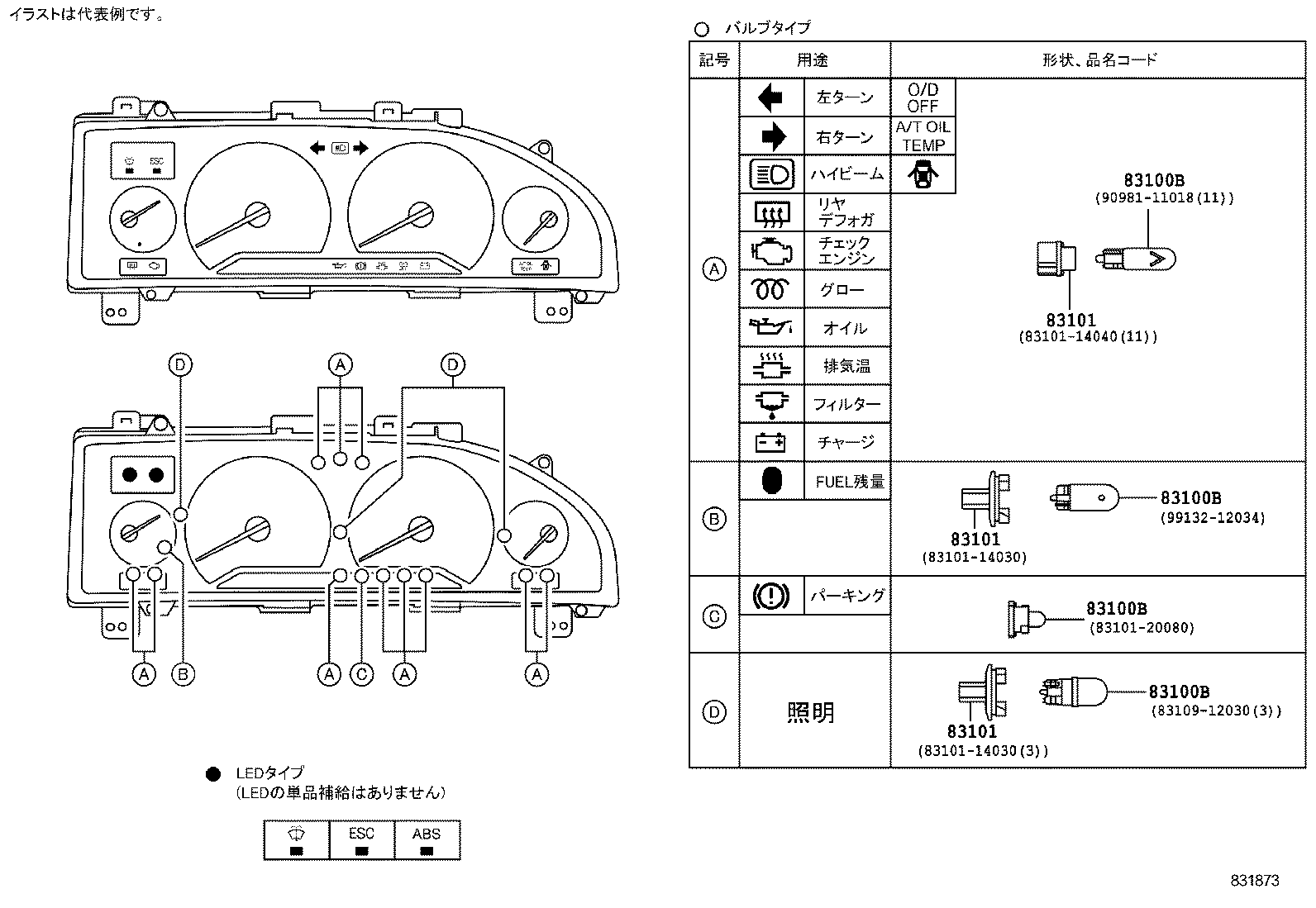

ILLUST NO. 2 OF 3(8705- )FXG,FXV,G,LT,SE,XE
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ,ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
AE91,95,CE90,95..FXG,FXV,G,LT,SE 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
AE9#,CE9#,EE9# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-12030 |
AE9#,CE9#,EE9# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
1 | ||
| 99132-12034 |
AE9#,CE9#,EE9# 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE9#,CE9#,EE9# 12V 3.4W BULB |
1 | ||
| 83101-14040 |
AE9#,CE9#,EE9# 14V 1.4W BULB |
1 | ||

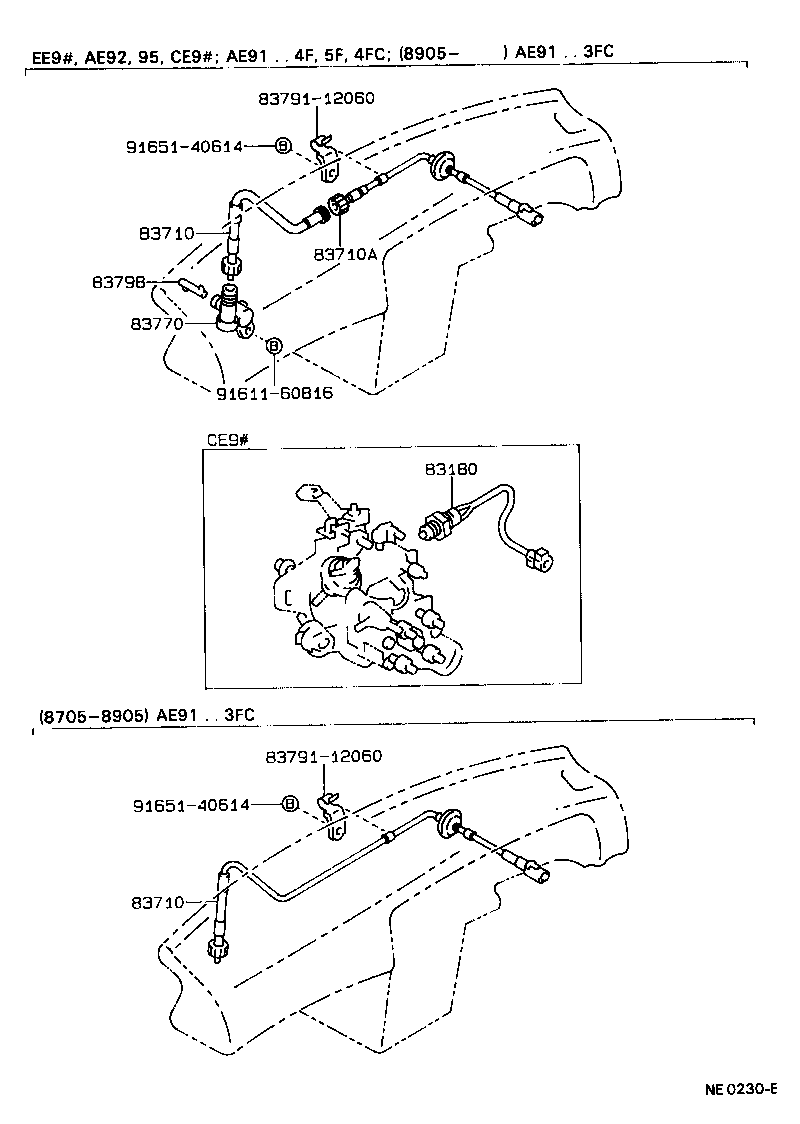

ILLUST NO. 3 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12410 |
AE91..3FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12410 |
AE91..3FC |
1 | ||
| Common parts | ||||
| 83791-12060 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
