AE91-AGHNU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

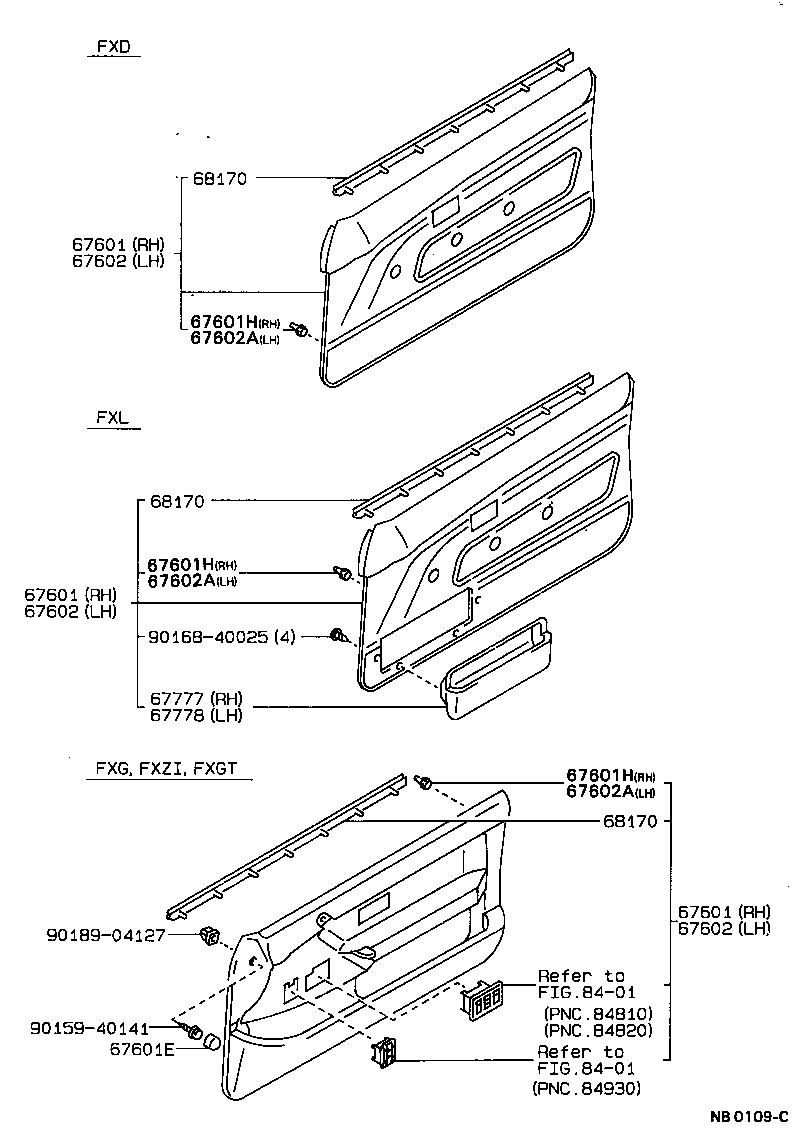

ILLUST NO. 2 OF 2(8705-8905)3D

Click highlighted areas on diagram

diagram 67601 67601 67601 67601E 67601H 67601H 67601H 67602 67602 67602 67602A 67602A 67602A 67777 67778 68170 68170 68170 8401 8401 9015940141 9016840025 9018904127
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1A36003

AE91,EE90..3D..FXL

ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1#

 1
67650-1A62003

AE91,EE90..3D..FXL

SHADOW GRAY,TRIM1#

 1
67650-1A36005

AE91,EE90..3D..FXL

ｶﾝﾚｲﾁ ｼﾖｳ,DARK BEIGE,TRIM4#

 1
67650-1A62005

AE91,EE90..3D..FXL

DARK BEIGE,TRIM4#

 1
67650-1A36005

AE91,EE90..3D..FXL

DARK BEIGE,TRIM4#

 1
67650-1A36003

AE91,EE90..3D..FXL

SHADOW GRAY,TRIM1#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1A36003

AE91,EE90..3D..FXL

ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1#

 1
67650-1A62003

AE91,EE90..3D..FXL

SHADOW GRAY,TRIM1#

 1
67650-1A36005

AE91,EE90..3D..FXL

ｶﾝﾚｲﾁ ｼﾖｳ,DARK BEIGE,TRIM4#

 1
67650-1A62005

AE91,EE90..3D..FXL

DARK BEIGE,TRIM4#

 1
67650-1A36005

AE91,EE90..3D..FXL

DARK BEIGE,TRIM4#

 1
67650-1A36003

AE91,EE90..3D..FXL

SHADOW GRAY,TRIM1#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-1A36003

AE91,EE90..3D..FXL

ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1#

 1
67650-1A62003

AE91,EE90..3D..FXL

SHADOW GRAY,TRIM1#

 1
67650-1A36005

AE91,EE90..3D..FXL

ｶﾝﾚｲﾁ ｼﾖｳ,DARK BEIGE,TRIM4#

 1
67650-1A62005

AE91,EE90..3D..FXL

DARK BEIGE,TRIM4#

 1
67650-1A36005

AE91,EE90..3D..FXL

DARK BEIGE,TRIM4#

 1
67650-1A36003

AE91,EE90..3D..FXL

SHADOW GRAY,TRIM1#

 1
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-1000213

AE9#,CE90,95..FXG,FXGT,FXZI,FXZS,G,GT,SE

SHADOW GRAY,TRIM1#

 2
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

 11
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

 11
67601H - RETAINER, DOOR TRIM, RH
67771-12040

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

 11
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1E72005

AE91,EE90..3D..(FXD,FXL)

ｶﾝﾚｲﾁ ｼﾖｳ,DARK BEIGE,TRIM4#

 1
67620-1E79003

AE91,EE90..3D..(FXD,FXL)

SHADOW GRAY,TRIM1#

 1
67620-1E79005

AE91,EE90..3D..(FXD,FXL)

DARK BEIGE,TRIM4#

 1
67620-1E72003

AE91,EE90..3D..(FXD,FXL)

ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1#

 1
67620-1E72003

AE91,EE90..3D..(FXD,FXL)

SHADOW GRAY,TRIM1#

 1
67620-1E72005

AE91,EE90..3D..(FXD,FXL)

DARK BEIGE,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1E72005

AE91,EE90..3D..(FXD,FXL)

ｶﾝﾚｲﾁ ｼﾖｳ,DARK BEIGE,TRIM4#

 1
67620-1E79003

AE91,EE90..3D..(FXD,FXL)

SHADOW GRAY,TRIM1#

 1
67620-1E79005

AE91,EE90..3D..(FXD,FXL)

DARK BEIGE,TRIM4#

 1
67620-1E72003

AE91,EE90..3D..(FXD,FXL)

ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1#

 1
67620-1E72003

AE91,EE90..3D..(FXD,FXL)

SHADOW GRAY,TRIM1#

 1
67620-1E72005

AE91,EE90..3D..(FXD,FXL)

DARK BEIGE,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1E72005

AE91,EE90..3D..(FXD,FXL)

ｶﾝﾚｲﾁ ｼﾖｳ,DARK BEIGE,TRIM4#

 1
67620-1E79003

AE91,EE90..3D..(FXD,FXL)

SHADOW GRAY,TRIM1#

 1
67620-1E79005

AE91,EE90..3D..(FXD,FXL)

DARK BEIGE,TRIM4#

 1
67620-1E72003

AE91,EE90..3D..(FXD,FXL)

ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1#

 1
67620-1E72003

AE91,EE90..3D..(FXD,FXL)

SHADOW GRAY,TRIM1#

 1
67620-1E72005

AE91,EE90..3D..(FXD,FXL)

DARK BEIGE,TRIM4#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

 11
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

 11
67602A - RETAINER, DOOR TRIM, LH
67771-12040

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

 11
67777 - POCKET, FRONT DOOR TRIM, RH
67777-1207005

AE91,95,CE90,97,EE90,97..FXL,GL,TX,XE

DARK BEIGE,TRIM4#

 1
67777-1207003

AE9#,CE90,95,97,EE90,97..FXGTV,FXL,FXV,FXVS,GL,LT,TX,XE

SHADOW GRAY,TRIM1#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12210

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

右側

 1
68172-12140

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

左側

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12210

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

右側

 1
68172-12140

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

左側

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12210

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

右側

 1
68172-12140

AE91,92,EE90..3D..(FXD,FXGTV,FXL,FXV,FXVS)

左側

 1
Common parts
90159-40141
90168-40025
90189-04127
Linked diagrams
8401

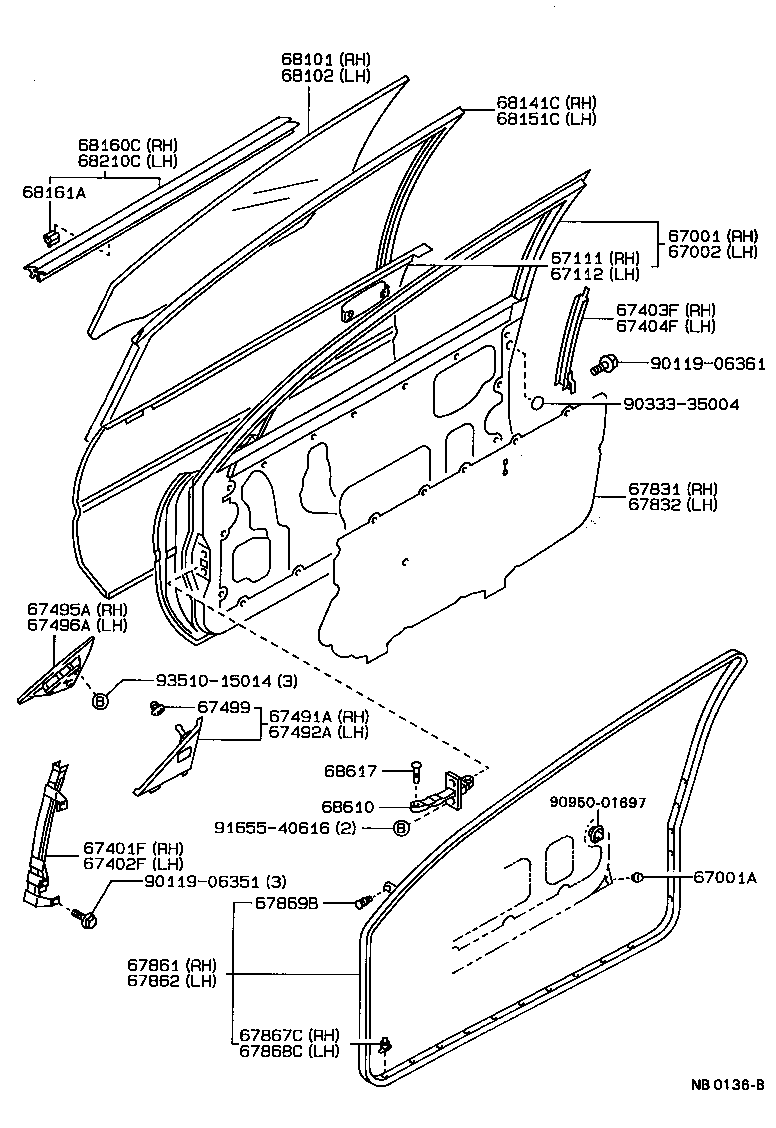

ILLUST NO. 1 OF 2(8705- )3D

Click highlighted areas on diagram

diagram 67001 67001A 67002 67111 67112 67401F 67402F 67403F 67404F 67491A 67492A 67495A 67496A 67499 67831 67832 67861 67862 67867C 67868C 67869B 68101 68102 68141C 68151C 68160C 68161A 68210C 68610 68617 9011906351 9011906361 9033335004 9095001697 9165540616 9351015014
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-1A320

AE91,EE90..3D..(FXD,FXL)

 1
67001-1A321

AE91,92,EE90..3D

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09059

AE91,92,EE90..3D

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-1A300

AE91,EE90..3D..(FXD,FXL)

 1
67002-1A301

AE91,92,EE90..3D

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-12480

AE91,92,EE90..3D

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-12470

AE91,92,EE90..3D

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-12280

AE91,92,EE90..3D

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-12300

AE91,92,EE90..3D

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12110

AE91,92,EE90..3D

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12110

AE91,92,EE90..3D

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-12190

AE91,92,EE90..3D

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-12190

AE91,92,EE90..3D

 1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-12140

AE91,92,EE90..3D

 1
67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-12140

AE91,92,EE90..3D

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-12030

AE95,CE90;AE91,92,CE96,97,EE9#..DX,FXD,FXG,FXGT,FXL,FXZI,G,GL,GT,SE,STD,XE

 2
67499-32010

CE90;AE9#,CE96,97,EE9#..DX,FXD,FXG,FXGT,FXL,FXZI,G,GL,GT,SE,STD,XE

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67832-12260

AE92..4FC..FXGT;AE91,EE90..3D..CBR

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-12260

AE91,92,EE90..3D

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-12610

AE9#,EE90..3D

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-12610

AE9#,EE90..3D

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-12020

AE91,92,EE90..3D

 21
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-12050

AE91,92,EE90..3D

 21
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-12020

AE9#,CE9#,EE9#

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-12670

AE91,92,EE90..3D..(FXG,FXGT,FXL,FXZI)

*TEM,ﾌﾞﾛﾝｽﾞ,厚さ=3.5

 1
68111-12660

AE91,92,EE90..3D..(FXG,FXGT,FXL,FXZI)

*TT,厚さ=3.5

 1
68101-12530

AE91,CE90,96,97,EE9#..CTD,DX,L,STD

*TEM,厚さ=3.5

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-12660

AE91,92,EE90..3D..(FXG,FXGT,FXL,FXZI)

*TT,厚さ=3.5

 1
68102-12530

AE91,CE90,96,97,EE9#..CTD,DX,L,STD

*TEM,厚さ=3.5

 1
68112-12670

AE91,92,EE90..3D..(FXG,FXGT,FXL,FXZI)

*TEM,ﾌﾞﾛﾝｽﾞ,厚さ=3.5

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-12360

AE91,92,EE90..3D

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-12080

AE91,92,EE90..3D

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-12170

AE91,CE90,96,97,EE9#..CTD,DX,GL,L,STD

 1
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68211-12160

AE91,CE90,96,97,EE9#..CTD,DX,GL,L,STD

 12
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-12120

AE91,CE90,96,97,EE9#..CTD,DX,GL,L,STD

 1
68610 - CHECK ASSY, FRONT DOOR
68610-12050

AE91..5D..EFIS;AE9#,CE9#,EE9#..DX,FXD,FXG,FXGT,FXL,FXZI,G,GL,GT,SE,STD,TX,XE

 2
68617 - PIN, FRONT DOOR CHECK
68617-22020

AE9#,CE9#,EE9#

 2
Common parts
90119-06351
90119-06361
90333-35004
90950-01697
91655-40616
93510-15014
