AE91-AGHNU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

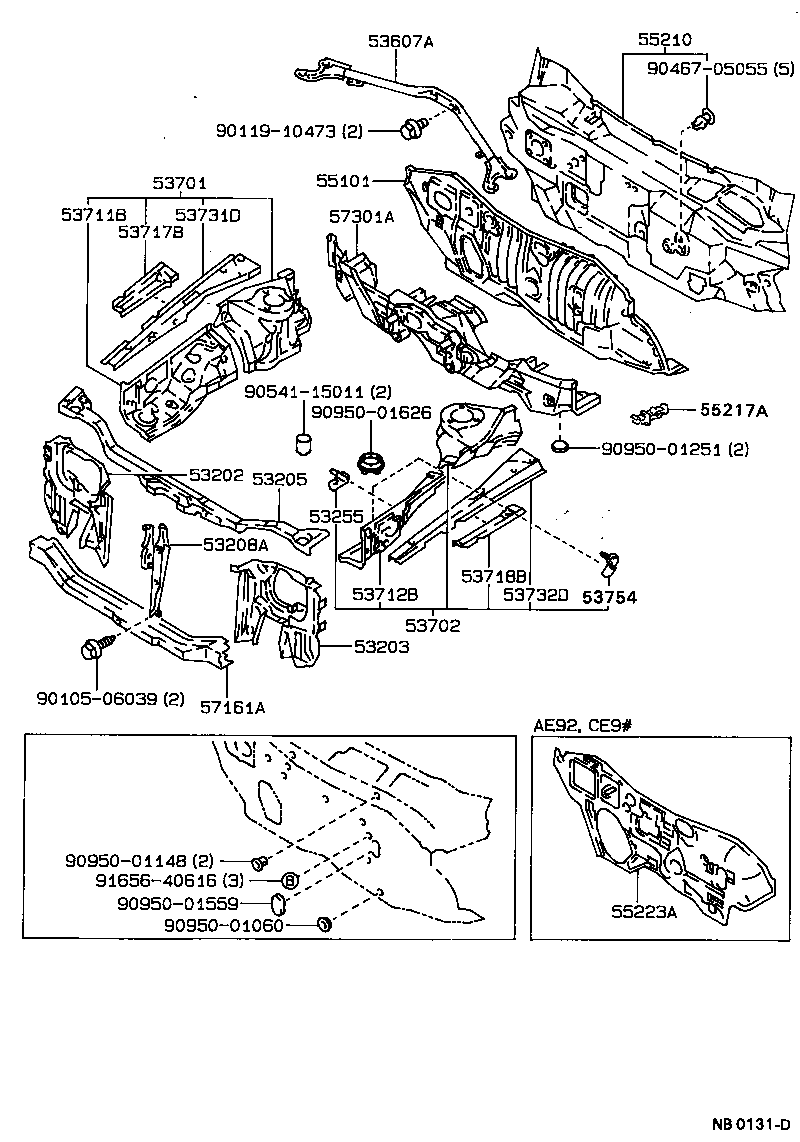

Click highlighted areas on diagram

diagram 53202 53203 53205 53208A 53255 53607A 53701 53702 53711B 53712B 53717B 53718B 53731D 53732D 53754 55101 55210 55217A 55223A 57161A 57301A 9010506039 9011910473 9046705055 9054115011 9095001060 9095001148 9095001251 9095001559 9095001626 9165640616
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-12290

AE9#,CE9#,EE9#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-12250

AE9#,CE9#,EE9#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-12928

AE91,95,CE9#,EE9#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-12360

AE91,92,EE90..3D,5D

 1
53255 - BRACKET, RELAY BOX MOUNTING
53255-12010

AE9#,CE9#,EE9#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-1A010

AE9#,CE9#,EE9#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-1A030

AE9#,CE9#,EE9#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-12210

AE9#,CE9#,EE9#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-12170

AE9#,CE9#,EE9#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-12130

AE9#,CE9#,EE9#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-12110

AE9#,CE9#,EE9#

 1
53754 - BRACKET, RELAY BOX MOUNTING, NO.2
53754-12010

AE9#,CE9#,EE9#

 1
55101 - PANEL SUB-ASSY, DASH
55101-1A090

AE91,CE90,96,97,EE90,96,98..ATM..(CTD,DX,FXL,GL,L,LT,TX,XE)

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-12350

AE9#,CE9#,EE9#

 1
57161A - MEMBER, FRONT CROSS, FRONT W/REAR
57161-12911

AE9#,CE9#,EE9#

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-12100

AE9#,CE9#,EE9#

 1
Common parts
90105-06039
90119-10473
90467-05055
90541-15011
90950-01060
90950-01148
90950-01251
90950-01559
90950-01626
91656-40616
