AE91-AEPEU (1987)
Toyota Corolla
ILLUST NO. 2 OF 2(8705- )4D,5D,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A01005 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A34002 |
AE91,95,CE90..SE..(CBR,DSL) MAROON,TRIM3# |
1 | ||
| 67630-1A01002 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67630-1A01003 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A34003 |
AE91,95,CE90..SE..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A010D0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67630-1A010E0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A34005 |
AE91,95,CE90..SE..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A01005 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A34002 |
AE91,95,CE90..SE..(CBR,DSL) MAROON,TRIM3# |
1 | ||
| 67630-1A01002 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67630-1A01003 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A34003 |
AE91,95,CE90..SE..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A010D0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67630-1A010E0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A34005 |
AE91,95,CE90..SE..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A01005 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A34002 |
AE91,95,CE90..SE..(CBR,DSL) MAROON,TRIM3# |
1 | ||
| 67630-1A01002 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67630-1A01003 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A34003 |
AE91,95,CE90..SE..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A010D0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67630-1A010E0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A34005 |
AE91,95,CE90..SE..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE91..SE..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 67771-12040 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) |
7 | ||
| 67771-89104 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,WHITE |
1 | ||
| 67771-12050 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,ﾚｯﾄﾞ |
6 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE91..SE..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 67771-12040 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) |
7 | ||
| 67771-89104 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,WHITE |
1 | ||
| 67771-12050 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,ﾚｯﾄﾞ |
6 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE91..SE..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 67771-12040 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) |
7 | ||
| 67771-89104 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,WHITE |
1 | ||
| 67771-12050 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,ﾚｯﾄﾞ |
6 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A01002 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67640-1A01005 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A01003 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A33003 |
AE91,95,CE90..SE..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A33005 |
AE91,95,CE90..SE..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A33002 |
AE91,95,CE90..SE..(CBR,DSL) MAROON,TRIM3# |
1 | ||
| 67640-1A010E0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A010D0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A01002 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67640-1A01005 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A01003 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A33003 |
AE91,95,CE90..SE..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A33005 |
AE91,95,CE90..SE..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A33002 |
AE91,95,CE90..SE..(CBR,DSL) MAROON,TRIM3# |
1 | ||
| 67640-1A010E0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A010D0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A01002 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67640-1A01005 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A01003 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A33003 |
AE91,95,CE90..SE..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A33005 |
AE91,95,CE90..SE..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A33002 |
AE91,95,CE90..SE..(CBR,DSL) MAROON,TRIM3# |
1 | ||
| 67640-1A010E0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A010D0 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-89104 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,WHITE |
1 | ||
| 67771-12040 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) |
7 | ||
| 67771-12050 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91..SE..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-89104 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,WHITE |
1 | ||
| 67771-12040 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) |
7 | ||
| 67771-12050 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91..SE..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-89104 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,WHITE |
1 | ||
| 67771-12040 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) |
7 | ||
| 67771-12050 |
AE91,CE90..SE..(CBR,DSL) SE ﾘﾐﾃﾂﾄﾞ,ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91..SE..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12140 |
AE9#,CE90,95..(4D,5D,WG)..(FXG,FXZI,FXZS,G,GT,SE) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12140 |
AE9#,CE90,95..(4D,5D,WG)..(FXG,FXZI,FXZS,G,GT,SE) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12140 |
AE9#,CE90,95..(4D,5D,WG)..(FXG,FXZI,FXZS,G,GT,SE) |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-3201005 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201002 |
AE91,95,CE90..SE MAROON,TRIM3# |
1 | ||
| 69751-32010E0 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010D0 |
AE91,95,CE90..SE MAROON,TRIM3# |
1 | ||
| 69751-3201013 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040E0 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-3201005 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201002 |
AE91,95,CE90..SE MAROON,TRIM3# |
1 | ||
| 69751-32010E0 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010D0 |
AE91,95,CE90..SE MAROON,TRIM3# |
1 | ||
| 69751-3201013 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040E0 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-3201005 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201002 |
AE91,95,CE90..SE MAROON,TRIM3# |
1 | ||
| 69751-32010E0 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010D0 |
AE91,95,CE90..SE MAROON,TRIM3# |
1 | ||
| 69751-3201013 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040E0 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201002 |
AE91,95,CE90..SE MAROON,TRIM3# |
1 | ||
| 69751-32010D0 |
AE91,95,CE90..SE MAROON,TRIM3# |
1 | ||
| 69751-3201013 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-3201005 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010E0 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-12040E0 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201002 |
AE91,95,CE90..SE MAROON,TRIM3# |
1 | ||
| 69751-32010D0 |
AE91,95,CE90..SE MAROON,TRIM3# |
1 | ||
| 69751-3201013 |
AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-3201005 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010E0 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| 69751-12040E0 |
AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE) DARK BEIGE,TRIM4# |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

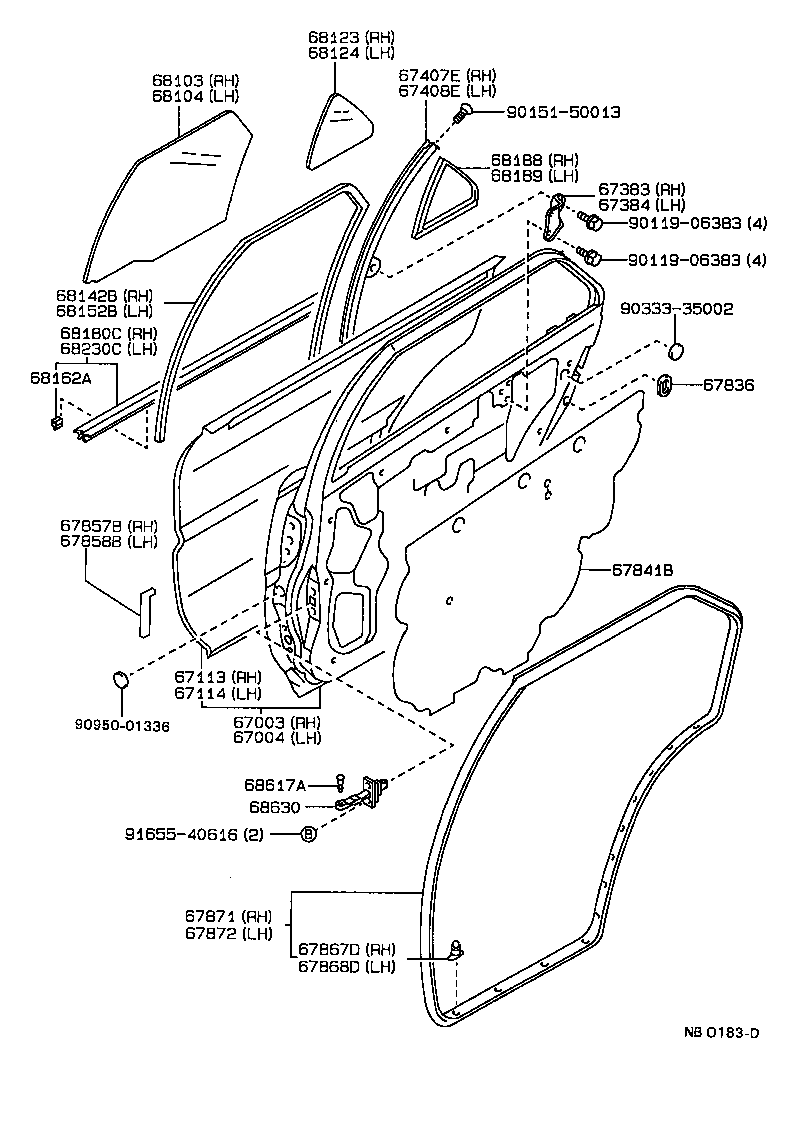

ILLUST NO. 1 OF 2(8705- )4D,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12500 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12500 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12140 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12140 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67383 - BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH | ||||
| 67383-12030 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67384 - BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH | ||||
| 67384-12030 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12140 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12140 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12030 |
AE9#,CE90,95,97,EE90,97..4D,5D,WG |
2 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-12220 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE9#,CE90,EE90..4D,5D |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE9#,CE90,EE90..4D |
17 | ||
| 67868-12030 |
AE9#,CE90,EE90..4D |
17 | ||
| 67868-12030 |
AE9#,CE90,EE90..4D,5D |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12290 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12290 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12200 |
AE95..SE;AE91,92,CE90,EE90..GT,SE,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68113-12200 |
AE9#,CE90..GT,SE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68113-12190 |
AE9#,CE90,95,EE90..GT,SE,TX,XE *TT,厚さ=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12200 |
AE95..SE;AE91,92,CE90,EE90..GT,SE,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-12200 |
AE9#,CE90..GT,SE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-12190 |
AE9#,CE90,95,EE90..GT,SE,TX,XE *TT,厚さ=3.5 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-12400 |
AE95..SE;AE91,92,CE90,EE90..GT,SE,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68123-12400 |
AE9#,CE90..GT,SE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68123-12390 |
AE9#,CE90,95,EE90..GT,SE,TX,XE *TT,厚さ=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-12400 |
AE95..SE;AE91,92,CE90,EE90..GT,SE,XE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124-12390 |
AE9#,CE90,95,EE90..GT,SE,TX,XE *TT,厚さ=3.5 |
1 | ||
| 68124-12400 |
AE9#,CE90..GT,SE *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-12090 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-12010 |
AE91,95,CE90,EE90..4D..(CBR,DSL) |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12200 |
AE91,95,CE90,EE90..(SE,TX,XE)..(CBR,DSL) |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12190 |
AE91,95,CE90,EE90..(SE,TX,XE)..(CBR,DSL) |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-22020 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12040 |
AE9#,CE9#,EE9#..4D,5D,V,WG |
2 | ||
| Common parts | ||||
| 90119-06383 | ||||
| 90151-50013 | ||||
| 90333-35002 | ||||
| 90950-01336 | ||||
| 91655-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
