AE91-AEMEU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE91,92,CE90,EE90..4D

Click highlighted areas on diagram

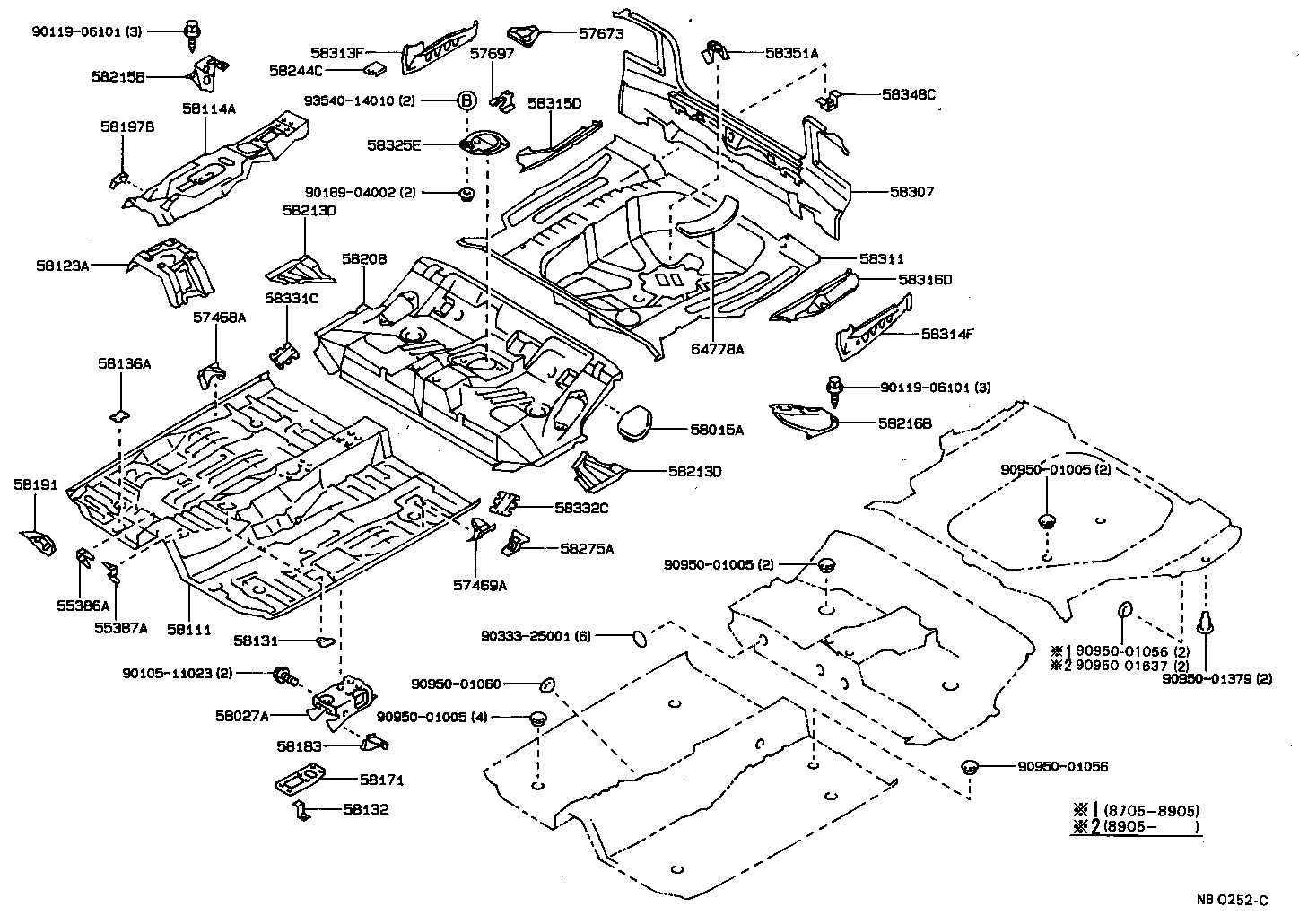

diagram 55386A 55387A 57468A 57469A 57673 57697 58015A 58027A 58111 58114A 58123A 58131 58132 58136A 58171 58183 58191 58197B 58208 58213D 58213D 58215B 58216B 58244C 58275A 58307 58311 58313F 58314F 58315D 58316D 58325E 58331C 58332C 58348C 58351A 64778A 9010511023 9011906101 9011906101 9018904002 9033325001 9095001005 9095001005 9095001005 9095001056 9095001056 9095001060 9095001379 9095001637 9354014010
Part # Description Qty Price
55386A - BRACKET, COMPUTER MOUNTING, NO.1
55386-12040

AE91,92,CE90,96,97,EE9#

 1
55387A - BRACKET, COMPUTER MOUNTING, NO.2
55387-12020

AE91,92,CE90,96,97,EE9#

 1
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-12030

AE91,92,CE90,96,97,EE9#

 1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-12030

AE91,92,CE90,96,97,EE9#

 1
57697 - RETAINER, REAR SEAT CUSHION
57697-12020

AE9#,CE90,EE90

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-12020

AE91,92,CE90,EE90

 2
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-12030

AE91,CE9#,EE90,96,97

 1
58027-12030

AE91,92,CE9#,EE9#

 1
58111 - PAN, FRONT FLOOR
58111-12200

AE91,92,CE90,96,97,EE9#

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-12050

AE91,92,CE90,96,97,EE9#

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-12040

AE91,92,CE90,96,97,EE9#

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-12020

AE91,92,CE9#,EE9#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-12080

AE91,92,CE90,96,97,EE9#

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58183-12090

AE91,92,CE90,96,97,EE9#

右側

 1
58184-12110

AE91,92,CE90,96,97,EE9#

左側

 1
58191 - FOOTREST, FRONT FLOOR
58191-12100

CE90..SE;AE9#,CE95..(4FC,5F)..(FXG,FXGT,FXGTV,FXVS,FXZI,FXZS,G,GT,SE,TX,XE)

 1
58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58197-12010

AE91,92,CE9#,EE9#

 2
58208 - PAN, CENTER FLOOR
58211-12180

AE91,CE90,EE90..4D

ｱﾘ(ｺﾃｲ ｼ-ﾄ)

 1
58213D - REINFORCEMENT, CENTER FLOOR PANEL
58214-12010

AE91,92,CE90,EE90

左側

 1
58213-12020

AE91,92,CE90,EE90

右側

 1
58213D - REINFORCEMENT, CENTER FLOOR PANEL
58214-12010

AE91,92,CE90,EE90

左側

 1
58213-12020

AE91,92,CE90,EE90

右側

 1
58215B - BRACKET, REAR SEAT MOUNTING, RH
58215-16010

AE91,92,CE90,EE90

 1
58216B - BRACKET, REAR SEAT MOUNTING, LH
58216-16010

AE91,92,CE90,EE90

 1
58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH
58244-16030

AE91,92,CE90,EE90

 4
58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR
58275-12020

AE91,CE90,EE90..4D

 2
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-1A160

AE91,92,CE90,EE90..4D

 1
58311 - PAN, REAR FLOOR
58311-12120

AE91,92,CE90,EE90..4D,WG

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-12210

AE91,92,CE90,EE90..4D

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-12210

AE91,92,CE90,EE90..4D

 1
58315D - EXTENSION, REAR FLOOR PAN, RH
58315-12030

AE91,92,CE90,EE90..4D

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-12030

AE91,92,CE90,EE90..4D

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-12020

AE91,92,CE90,96,97,EE9#

 1
58331C - COVER, REAR FLOOR SIDE SERVICE HOLE, RH
58331-12010

AE91,92,CE90,EE90..DX,FXD,FXGTV,FXL,FXV,FXVS,G,GT,SE,TX,XE

 1
58332C - COVER, REAR FLOOR SIDE SERVICE HOLE, LH
58332-12010

AE91,92,CE90,EE90..DX,FXD,FXGTV,FXL,FXV,FXVS,G,GT,SE,TX,XE

 1
58348C - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58348-12010

AE91,92,EE90..4D,WG

 1
58351A - BRACKET, SPARE WHEEL CARRIER
58351-12020

AE91,92,CE90,EE90..4D,WG

 1
64778A - PROTECTOR, SPARE WHEEL
64778-12050

AE9#,CE90,95,EE90..4D,WG

 2
Common parts
90105-11023
90119-06101
90189-04002
90333-25001
90950-01005
90950-01056
90950-01060
90950-01379
90950-01637
93540-14010
