AE91-AEMEU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705-8905)4D

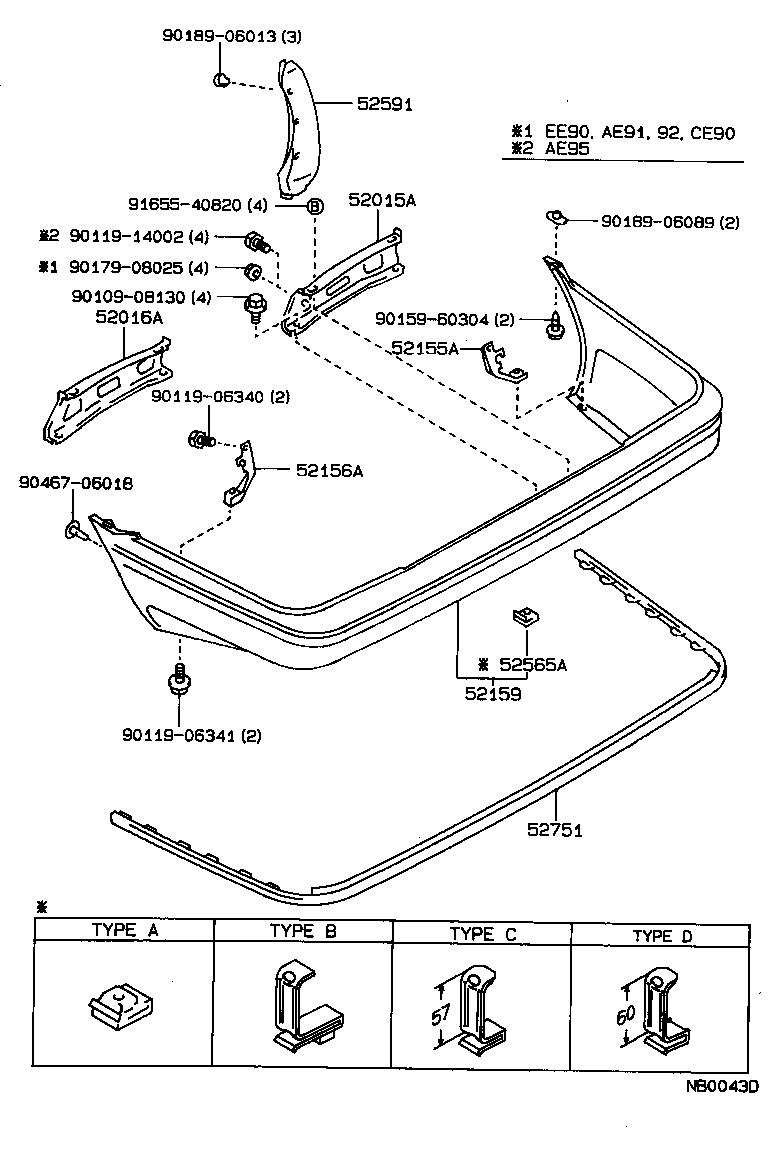

Click highlighted areas on diagram

diagram 52015A 52016A 52155A 52156A 52159 52565A 52591 52751 9010908130 9011906340 9011906341 9011914002 9015960304 9017908025 9018906013 9018906089 9046706018 9165540820
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52181-12280

AE91,92,CE90,EE90..4D

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52182-12230

AE91,92,CE90,EE90..4D

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-12150

AE9#,CE90,EE90..4D

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-12140

AE91,92,CE90,EE90..4D

 1
52159 - COVER, REAR BUMPER
52159-1272015

AE91,95,CE90..SE

BEIGE M,25E

 1
52159-1272002

AE9#,CE90,EE90..GT,SE,XE

SUPER RED 2,3E5

 1
52159-1272005

AE91,95,CE90,EE90..SE,XE

M BEIGE M,4H6

 1
52159-1272003

AE9#,CE90,EE90..GT,SE,XE

GRAY M,168

 1
52159-1272008

AE9#,CE90,EE90..GT,SE,XE

SUPER WHITE 2,040

 1
52159-1272015

AE91,95,CE90..SE

BEIGE M,25E

 1
52159-1272012

AE91,95,CE90,EE90..SE,XE

RED MICA,3H4

 1
52159-1A31008

AE91,95,CE90..SE

SE ｽ-ﾊﾟ- ﾘﾐﾃﾂﾄﾞ,SUPER WHITE 2,SUPER WHITE 2,040

 1
52159-12830

AE9#,CE90,EE90..4D

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

AE9#,CE90,EE90..4D

ﾀｲﾌﾟ A

 2
52565-12100

AE9#,CE90,EE90..4D

ﾀｲﾌﾟ B

 2
52565-12110

AE91,EE90..4D

ﾀｲﾌﾟ C

 1
52565-12040

AE9#,CE90,EE90..4D

ﾀｲﾌﾟ A

 6
52565-12160

AE9#,CE90,EE90..4D

ﾀｲﾌﾟ D

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12050

AE9#,CE90,EE90..4D

 1
52751 - MOULDING, REAR BUMPER
52751-12120

AE9#,CE90,EE90..4D

 1
Common parts
90109-08130
90119-06340
90119-06341
90119-14002
90159-60304
90179-08025
90189-06013
90189-06089
90467-06018
91655-40820
