AE91-AEMEU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705-8908)4AF,5AF

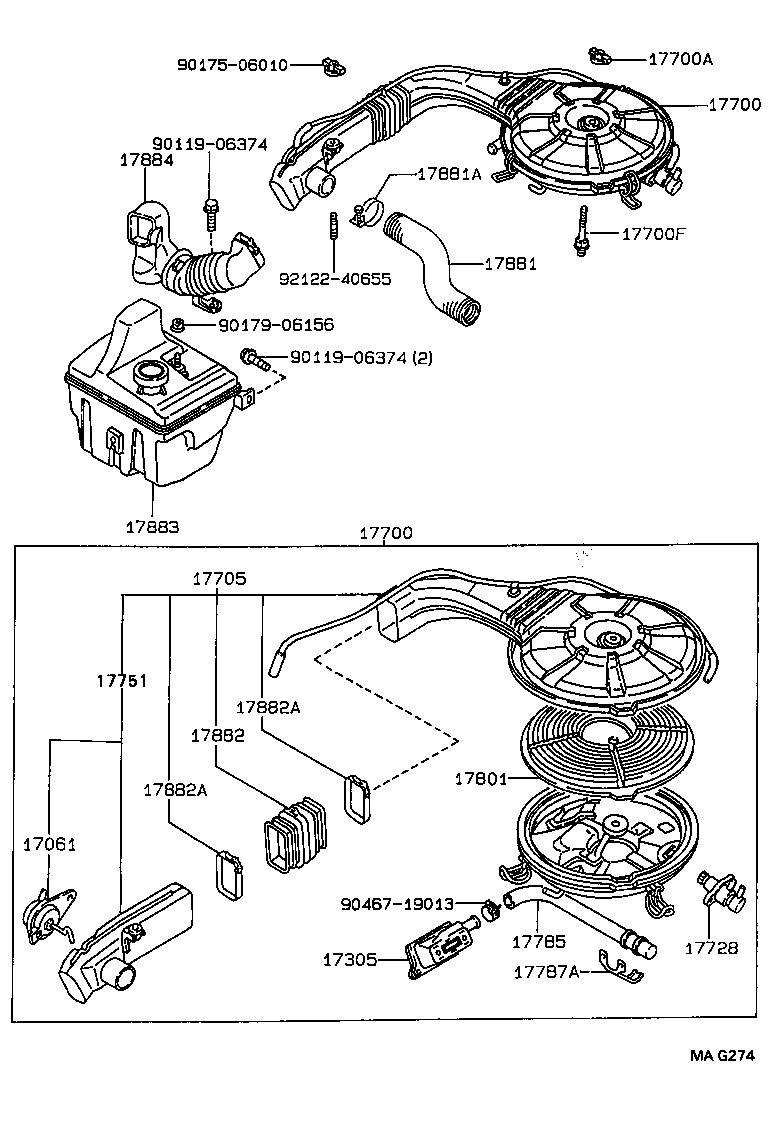

Click highlighted areas on diagram

diagram 17061 17305 17700 17700 17700A 17700F 17705 17728 17751 17785 17787A 17801 17881 17881A 17882 17882A 17882A 17883 17884 9011906374 9011906374 9017506010 9017906156 9046719013 9212240655
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-15040

4AF,5AF..AE91,95

 1
17305 - VALVE SUB-ASSY, REED
17350-15100

4AF,5AF..AE91,95

 1
17700 - CLEANER ASSY, AIR
17700-15240

4AF,5AF..AE91,95

 1
17700 - CLEANER ASSY, AIR
17700-15240

4AF,5AF..AE91,95

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06010

4AF,5AF..AE91,95

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06018

4AF,5AF..AE91,95

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-15150

4AF,5AF..AE91,95

 1
17728 - VALVE, THERMOSTATIC
17728-15080

4AF,5AF..AE91,95

 1
17751 - INLET, AIR CLEANER, NO.1
17751-15010

4AF,5AF..AE91,95

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15060

4AF,5AF..AE91,95

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-15120

5AF..AE91

 1
17881-15150

4AF,5AF..AE91,95

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

4AF,5AF..AE91,95

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-15140

4AF,5AF..AE91,95

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
17786-15010

4AF,5AF..AE91,95

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
17786-15010

4AF,5AF..AE91,95

 2
17883 - HOSE, AIR CLEANER, NO.3
17883-16030

4AF,5AF..AE91,95

 1
17884 - HOSE, AIR CLEANER, NO.4
17880-16010

4AF,5AF..AE91,95

 1
Common parts
90119-06374
90175-06010
90179-06156
90467-19013
92122-40655
