AE91-AEMEU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

Click highlighted areas on diagram

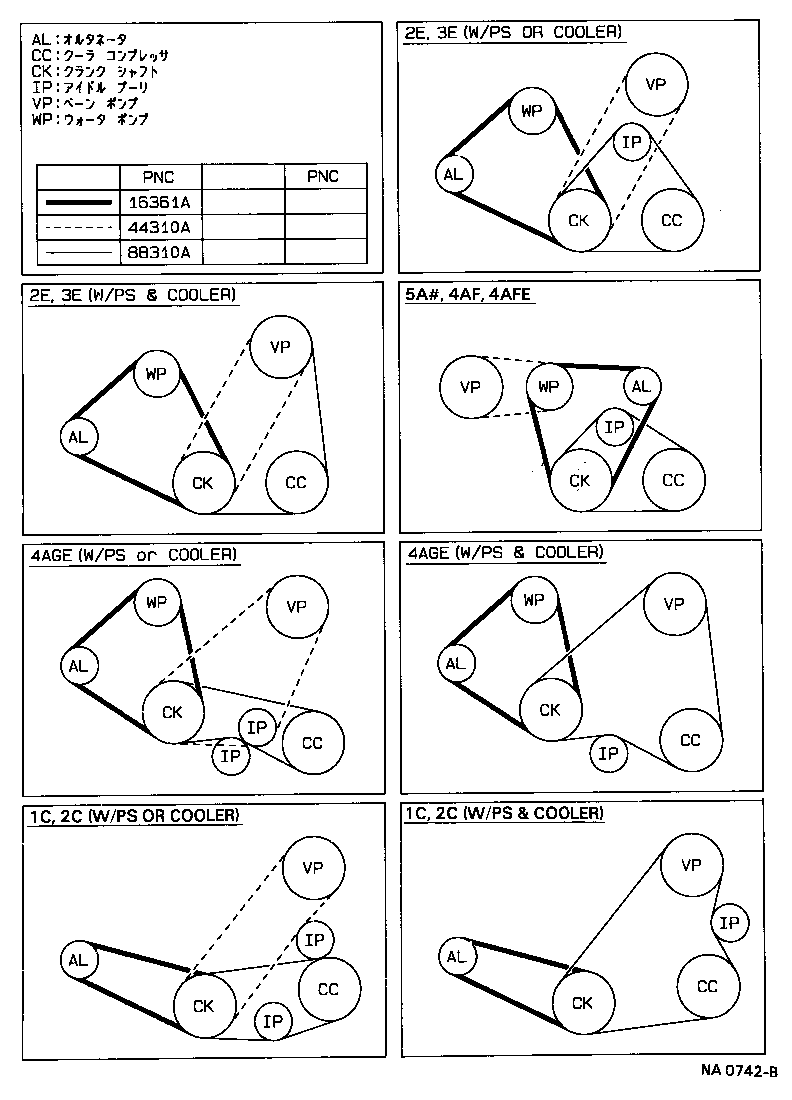

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-00970

4AF,5AF#..AE91,95

 1
99365-00970

5AFE..AE91..5F;4AF,5AF..AE91,95

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50630

AE95;AE91..TX..EFI;AE91..FXG,FXL,FXV,FXVS,FXZI,FXZS,G,LT,SE,XE

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02200

AE91..SE

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
90916-02200

AE91,95..FXG,FXZI,G,SE

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
99364-50840

AE91,95..FXG,FXZI,G,SE

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
99364-50840

AE91,95..FXG,FXL,FXZI,G,SE,TX,XE

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
