AE91-AEMEU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

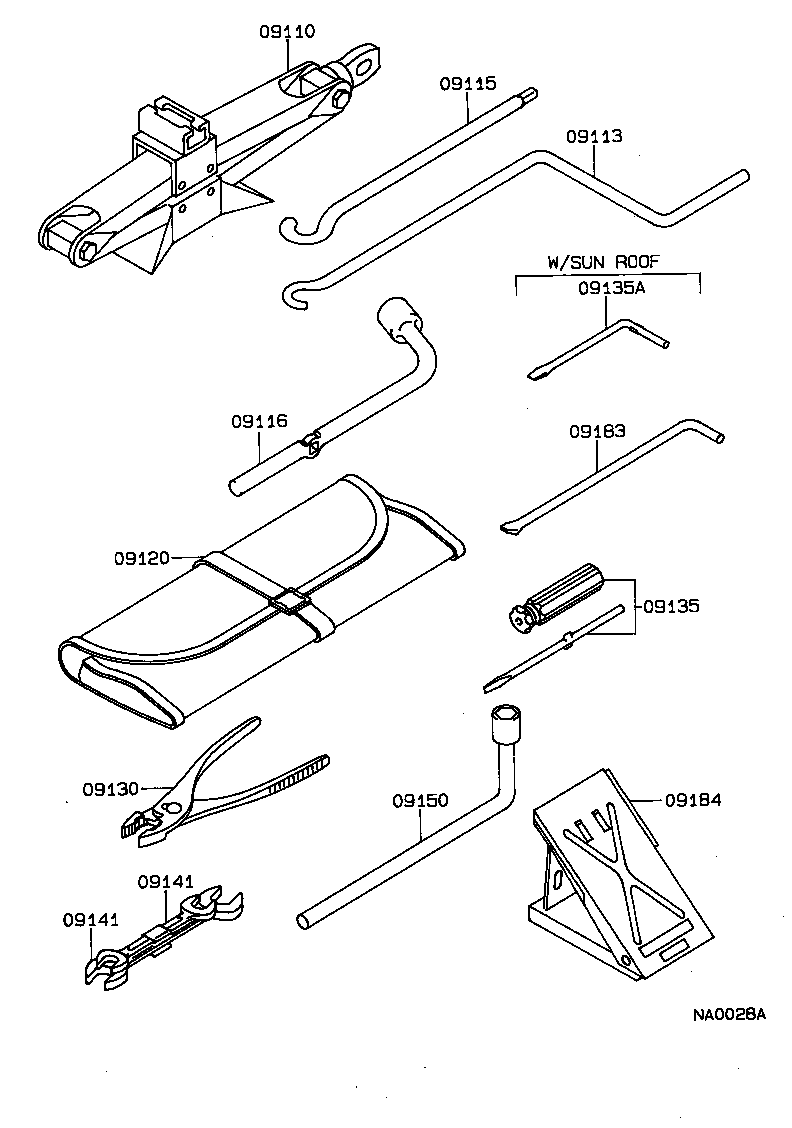

Click highlighted areas on diagram

diagram 09110 09113 09115 09116 09120 09130 09135 09135A 09141 09141 09150 09183 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-12100

AE9#,CE90,95,EE90..3D,4D,5D

 1
09113 - HANDLE, JACK
09113-20030

AE91,92,CE90,EE90..3D,4D,5D

 1
09120 - BAG, TOOL
09120-10030

AE9#,CE90,EE90

 1
09130 - PLIERS
99913-11500

AE9#,CE9#,EE9#

 1
09135 - DRIVER, SCREW
99915-10700

AE9#,CE9#,EE9#

 1
09135A - BIT, SCREW DRIVER
09135-00012

AE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE

 1
09141 - SPANNER
99914-11214

AE9#,CE9#,EE9#

12 X 14

 1
99914-10810

AE9#,CE9#,EE9#

8 X 10

 1
09141 - SPANNER
99914-11214

AE9#,CE9#,EE9#

12 X 14

 1
99914-10810

AE9#,CE9#,EE9#

8 X 10

 1
09150 - WRENCH, HUB NUT BOX
09150-26010

CE97..5F..(DX,GL);AE91,92,CE90,EE90,97..DX,FXD,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,GT,LT,SE,TX,XE

 1
09183 - WRENCH, WHEEL CAP
09183-00010

AE9#,CE9#,EE9#

 1
09184 - STOPPER, WHEEL
09184-00010

AE9#,CE9#,EE9#

 1
