AE91-AEMEK (1988)

Toyota Corolla

Production May 1988 - Jun 1991
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

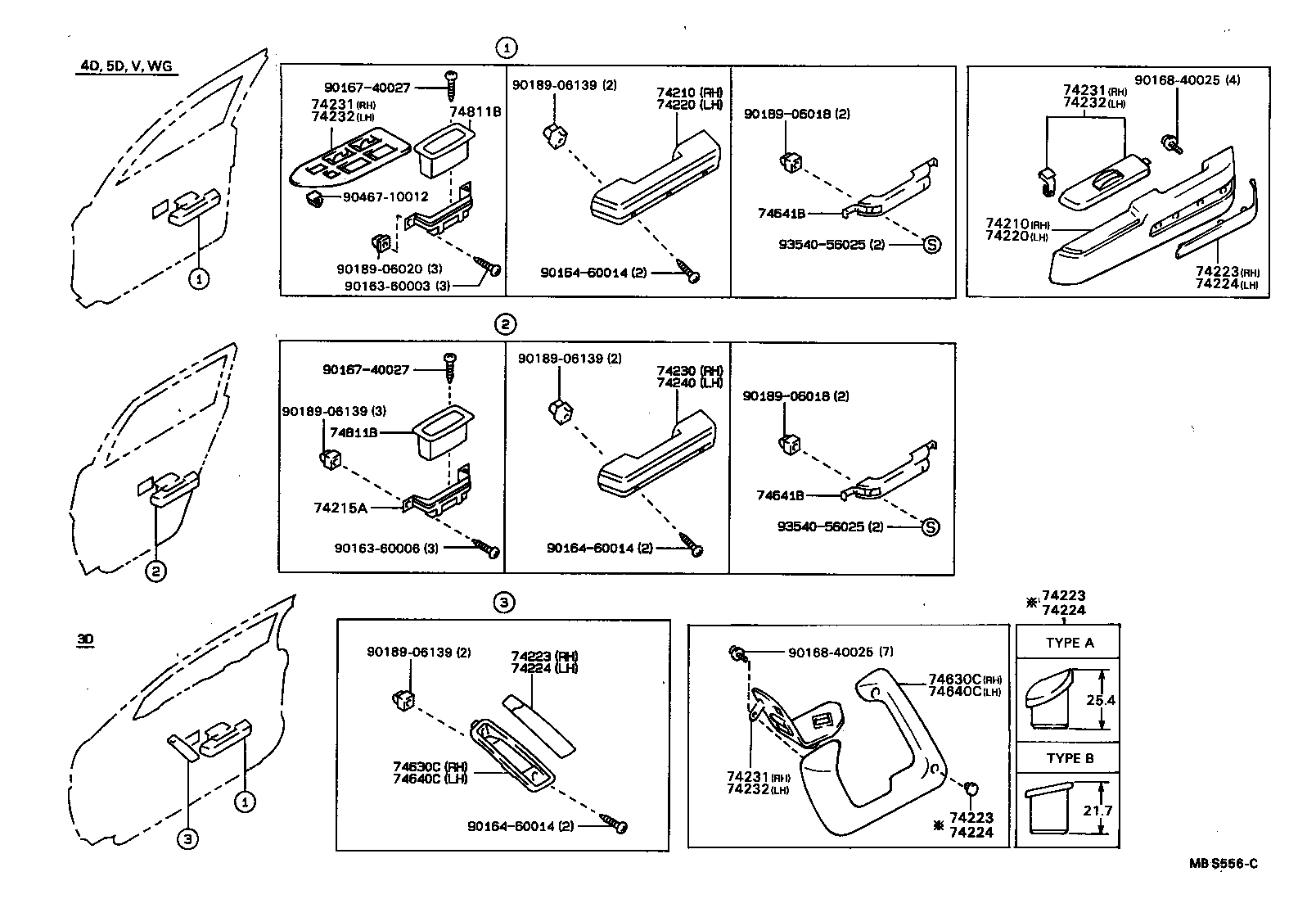

ILLUST NO. 1 OF 2(8905- )

Click highlighted areas on diagram

diagram 74210 74210 74215A 74220 74220 74223 74223 74223 74223 74224 74224 74224 74224 74230 74231 74231 74231 74232 74232 74232 74240 74630C 74630C 74640C 74640C 74641B 74641B 74811B 74811B 9016360003 9016360006 9016460014 9016460014 9016460014 9016740027 9016740027 9016840025 9016840025 9018906018 9018906018 9018906020 9018906139 9018906139 9018906139 9018906139 9046710012 9354056025 9354056025
Part # Description Qty Price
74215A - BASE, DOOR ARMREST RH
74215-12040

AE91,CE90..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ,左側

 2
74215-12020

AE91,CE90..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ,右側

 2
74215-12020

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,右側

 2
74215-12040

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,左側

 2
74215-12020

AE91..5D..EFIS;AE92,95,CE90,95..GT,SE;AE91..(4D,5D)..(4FC,5F)..EFI;AE91..(4D,5D,WG)..(4FC,5F)..CBR

 4
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-1206004

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
74231-1206004

AE91..SE..EFI

DARK BLUE,TRIM8#

 1
74231-1206003

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
74231-1206002

AE91..SE..EFI

MAROON,TRIM3#

 1
74231-1206002

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3#

 1
74231-1206003

AE91..SE..EFI

SHADOW GRAY,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-1206004

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
74231-1206004

AE91..SE..EFI

DARK BLUE,TRIM8#

 1
74231-1206003

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
74231-1206002

AE91..SE..EFI

MAROON,TRIM3#

 1
74231-1206002

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3#

 1
74231-1206003

AE91..SE..EFI

SHADOW GRAY,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-1206004

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
74231-1206004

AE91..SE..EFI

DARK BLUE,TRIM8#

 1
74231-1206003

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
74231-1206002

AE91..SE..EFI

MAROON,TRIM3#

 1
74231-1206002

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3#

 1
74231-1206003

AE91..SE..EFI

SHADOW GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-1205002

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3#

 1
74232-1205004

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
74232-1205002

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ) OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3#

 1
74232-1205003

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
74232-1205003

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ) OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1#

 1
74232-1205004

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ) OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,DARK BLUE,TRIM8#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-1205002

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3#

 1
74232-1205004

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
74232-1205002

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ) OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3#

 1
74232-1205003

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
74232-1205003

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ) OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1#

 1
74232-1205004

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ) OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,DARK BLUE,TRIM8#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-1205002

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),MAROON,TRIM3#

 1
74232-1205004

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),DARK BLUE,TRIM8#

 1
74232-1205002

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ) OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,MAROON,TRIM3#

 1
74232-1205003

AE91,95,CE90,95..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1#

 1
74232-1205003

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ) OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1#

 1
74232-1205004

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ﾃﾞﾝｼﾞ ﾛﾂｸ) OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,DARK BLUE,TRIM8#

 1
74811B - HANDLE, DOOR PULL
74811-1204003

AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)

SHADOW GRAY,TRIM1#

 4
74811-1204005

AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE)

DARK BEIGE,TRIM4#

 4
74811-1204002

AE91,95,CE90,95..SE

MAROON,TRIM3#

 4
74811B - HANDLE, DOOR PULL
74811-1204003

AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)

SHADOW GRAY,TRIM1#

 4
74811-1204005

AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE)

DARK BEIGE,TRIM4#

 4
74811-1204002

AE91,95,CE90,95..SE

MAROON,TRIM3#

 4
Common parts
90163-60003
90163-60006
90164-60014
90167-40027
90168-40025
90189-06018
90189-06020
90189-06139
90467-10012
93540-56025

ILLUST NO. 1 OF 2(8705-8905)

Click highlighted areas on diagram

diagram 74210 74215A 74215A 74220 74223 74224 74230 74240 74630C 74640C 74641B 74641B 74811B 74811B 74811B 74811B 9016360003 9016360003 9016460014 9016460014 9016460014 9016740027 9016740027 9018906018 9018906018 9018906018 9018906018 9018906139 9018906139 9018906139 9018906139 9018906139 9354056025 9354056025 9354056025 9354056025
Part # Description Qty Price
74215A - BASE, DOOR ARMREST RH
74215-12040

AE91,CE90..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ,左側

 2
74215-12020

AE91,CE90..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ,右側

 2
74215-12020

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,右側

 2
74215-12040

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,左側

 2
74215-12020

AE91..5D..EFIS;AE92,95,CE90,95..GT,SE;AE91..(4D,5D)..(4FC,5F)..EFI;AE91..(4D,5D,WG)..(4FC,5F)..CBR

 4
74215A - BASE, DOOR ARMREST RH
74215-12040

AE91,CE90..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ,左側

 2
74215-12020

AE91,CE90..SE..(DSL,EFI)

SE ﾘﾐﾃﾂﾄﾞ,右側

 2
74215-12020

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,右側

 2
74215-12040

AE91..SE..EFI

SE ﾘﾐﾃﾂﾄﾞ OR SE ｽ-ﾊﾟ-ﾘﾐﾃﾂﾄﾞ,左側

 2
74215-12020

AE91..5D..EFIS;AE92,95,CE90,95..GT,SE;AE91..(4D,5D)..(4FC,5F)..EFI;AE91..(4D,5D,WG)..(4FC,5F)..CBR

 4
74811B - HANDLE, DOOR PULL
74811-1204003

AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)

SHADOW GRAY,TRIM1#

 4
74811-1204005

AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE)

DARK BEIGE,TRIM4#

 4
74811-1204002

AE91,95,CE90,95..SE

MAROON,TRIM3#

 4
74811B - HANDLE, DOOR PULL
74811-1204003

AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)

SHADOW GRAY,TRIM1#

 4
74811-1204005

AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE)

DARK BEIGE,TRIM4#

 4
74811-1204002

AE91,95,CE90,95..SE

MAROON,TRIM3#

 4
74811B - HANDLE, DOOR PULL
74811-1204003

AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)

SHADOW GRAY,TRIM1#

 4
74811-1204005

AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE)

DARK BEIGE,TRIM4#

 4
74811-1204002

AE91,95,CE90,95..SE

MAROON,TRIM3#

 4
74811B - HANDLE, DOOR PULL
74811-1204003

AE9#,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)

SHADOW GRAY,TRIM1#

 4
74811-1204005

AE91,95,CE90..(4D,5D)..(FXG,FXZI,SE)

DARK BEIGE,TRIM4#

 4
74811-1204002

AE91,95,CE90,95..SE

MAROON,TRIM3#

 4
Common parts
90163-60003
90164-60014
90167-40027
90189-06018
90189-06139
93540-56025
