AE91-AEKNU (1987)
Toyota Corolla
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2003003 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE GRAY,TRIM1#,ﾀｲﾌﾟ C |
1 | ||
| 55539-1207005 |
AE91,CE90,EE90..FXG,FXL,FXZI,SE,XE DARK BEIGE,TRIM4#,ﾀｲﾌﾟ A |
1 | ||
| 55539-1207003 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 55539-2003005 |
AE91,CE90,EE90..FXG,FXL,FXZI,SE,XE DARK BEIGE,TRIM4#,ﾀｲﾌﾟ C |
1 | ||
| 55539-1207002 |
AE91,CE90,EE90..SE,XE MAROON,TRIM3#,ﾀｲﾌﾟ A |
1 | ||
| 55539-2003012 |
AE91,CE90,EE90..SE,XE MAROON,TRIM3#,ﾀｲﾌﾟ C |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2003003 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE GRAY,TRIM1#,ﾀｲﾌﾟ C |
1 | ||
| 55539-1207005 |
AE91,CE90,EE90..FXG,FXL,FXZI,SE,XE DARK BEIGE,TRIM4#,ﾀｲﾌﾟ A |
1 | ||
| 55539-1207003 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 55539-2003005 |
AE91,CE90,EE90..FXG,FXL,FXZI,SE,XE DARK BEIGE,TRIM4#,ﾀｲﾌﾟ C |
1 | ||
| 55539-1207002 |
AE91,CE90,EE90..SE,XE MAROON,TRIM3#,ﾀｲﾌﾟ A |
1 | ||
| 55539-2003012 |
AE91,CE90,EE90..SE,XE MAROON,TRIM3#,ﾀｲﾌﾟ C |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2003003 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE GRAY,TRIM1#,ﾀｲﾌﾟ C |
1 | ||
| 55539-1207005 |
AE91,CE90,EE90..FXG,FXL,FXZI,SE,XE DARK BEIGE,TRIM4#,ﾀｲﾌﾟ A |
1 | ||
| 55539-1207003 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 55539-2003005 |
AE91,CE90,EE90..FXG,FXL,FXZI,SE,XE DARK BEIGE,TRIM4#,ﾀｲﾌﾟ C |
1 | ||
| 55539-1207002 |
AE91,CE90,EE90..SE,XE MAROON,TRIM3#,ﾀｲﾌﾟ A |
1 | ||
| 55539-2003012 |
AE91,CE90,EE90..SE,XE MAROON,TRIM3#,ﾀｲﾌﾟ C |
1 | ||
| 55547B - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2002003 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 55547-2002012 |
AE91,95,CE90,EE90..XE MAROON,TRIM3# |
1 | ||
| 55547-2002005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXL,TX,XE DARK BEIGE,TRIM4# |
1 | ||
| 55547B - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2002003 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 55547-2002012 |
AE91,95,CE90,EE90..XE MAROON,TRIM3# |
1 | ||
| 55547-2002005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXL,TX,XE DARK BEIGE,TRIM4# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1209005 |
CE96,97,EE96,97,98..MTM..(DX,GL);AE91,CE90,EE90..MTM..(FXD,FXG,FXL,FXZI,SE,TX,XE) DARK BEIGE,TRIM4# |
1 | ||
| 58808-1209002 |
AE91,CE90,EE90..MTM..(SE,XE) MAROON,TRIM3# |
1 | ||
| 58808-1209003 |
AE91,92,CE90,96,97,EE9#..MTM..(CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE) SHADOW GRAY,TRIM1# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-1240005 |
CE96,97,EE96,97,98..DX,GL;AE91,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE DARK BEIGE,TRIM4# |
1 | ||
| 58811-1240002 |
AE91,CE90,EE90..SE,XE MAROON,TRIM3# |
1 | ||
| 58811-1240003 |
AE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1215005 |
AE91,CE90,EE90..FXG,FXL,FXZI,SE,XE DARK BEIGE,TRIM4# |
1 | ||
| 58901-1215003 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE SHADOW GRAY,TRIM1# |
1 | ||
| 58901-1215002 |
AE91,CE90,EE90..SE,XE MAROON,TRIM3# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1215005 |
AE91,CE90,EE90..FXG,FXL,FXZI,SE,XE DARK BEIGE,TRIM4# |
1 | ||
| 58901-1215003 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE SHADOW GRAY,TRIM1# |
1 | ||
| 58901-1215002 |
AE91,CE90,EE90..SE,XE MAROON,TRIM3# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1215005 |
AE91,CE90,EE90..FXG,FXL,FXZI,SE,XE DARK BEIGE,TRIM4# |
1 | ||
| 58901-1215003 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE SHADOW GRAY,TRIM1# |
1 | ||
| 58901-1215002 |
AE91,CE90,EE90..SE,XE MAROON,TRIM3# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1207003 |
AE91..FXZI;AE91..(FXG,FXL,G,SE,XE)..CBR;AE92,95,CE90,EE90..FXGT,FXL,GT,SE,XE SHADOW GRAY,TRIM1# |
1 | ||
| 58905-1207002 |
AE91,95,CE90,EE90..(SE,XE)..(CBR,DSL) MAROON,TRIM3# |
1 | ||
| 58905-1207005 |
AE91..FXZI;AE91,95,CE90,EE90..(FXG,FXL,SE,XE)..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1207003 |
AE91..FXZI;AE91..(FXG,FXL,G,SE,XE)..CBR;AE92,95,CE90,EE90..FXGT,FXL,GT,SE,XE SHADOW GRAY,TRIM1# |
1 | ||
| 58905-1207002 |
AE91,95,CE90,EE90..(SE,XE)..(CBR,DSL) MAROON,TRIM3# |
1 | ||
| 58905-1207005 |
AE91..FXZI;AE91,95,CE90,EE90..(FXG,FXL,SE,XE)..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30060 |
AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 58964-20020 |
AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 58964-30030 |
AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30060 |
AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 58964-20020 |
AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 58964-30030 |
AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
AE91..FXZI;AE91..(FXG,FXL,G,SE,XE)..CBR;AE92,95,CE90,EE90..FXGT,FXL,GT,SE,XE |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
AE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12060 |
AE91,92,CE90,96,97,EE9# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12050 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12050 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12050 |
AE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE |
1 | ||
| Common parts | ||||
| 90167-50003 | ||||
| 90167-50020 | ||||
| 90254-03002 | ||||
| 91661-40612 | ||||
| 93567-54512 | ||||
| 96160-00500 | ||||

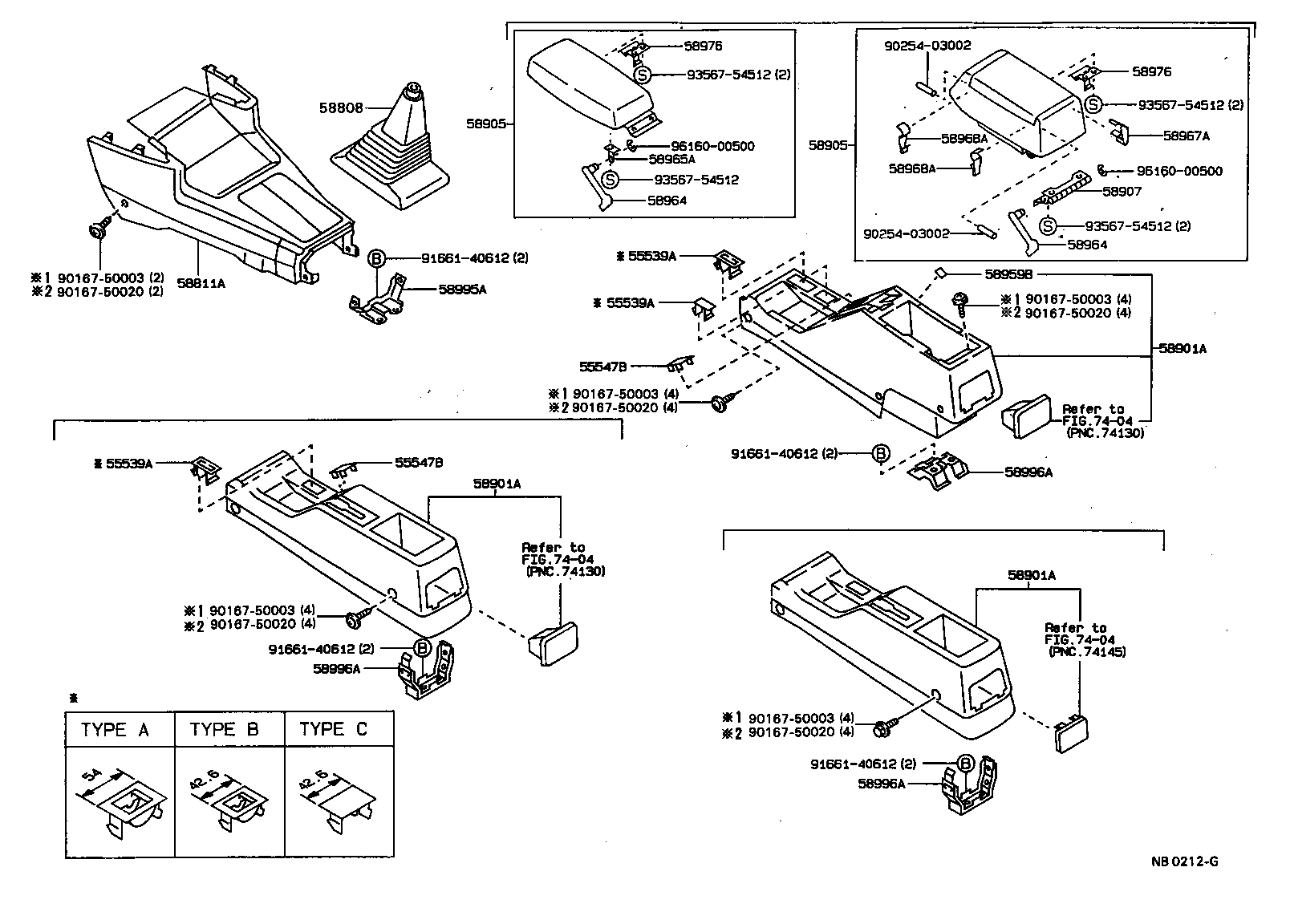

| Linked diagrams | ||||
| 7404 | ||||
