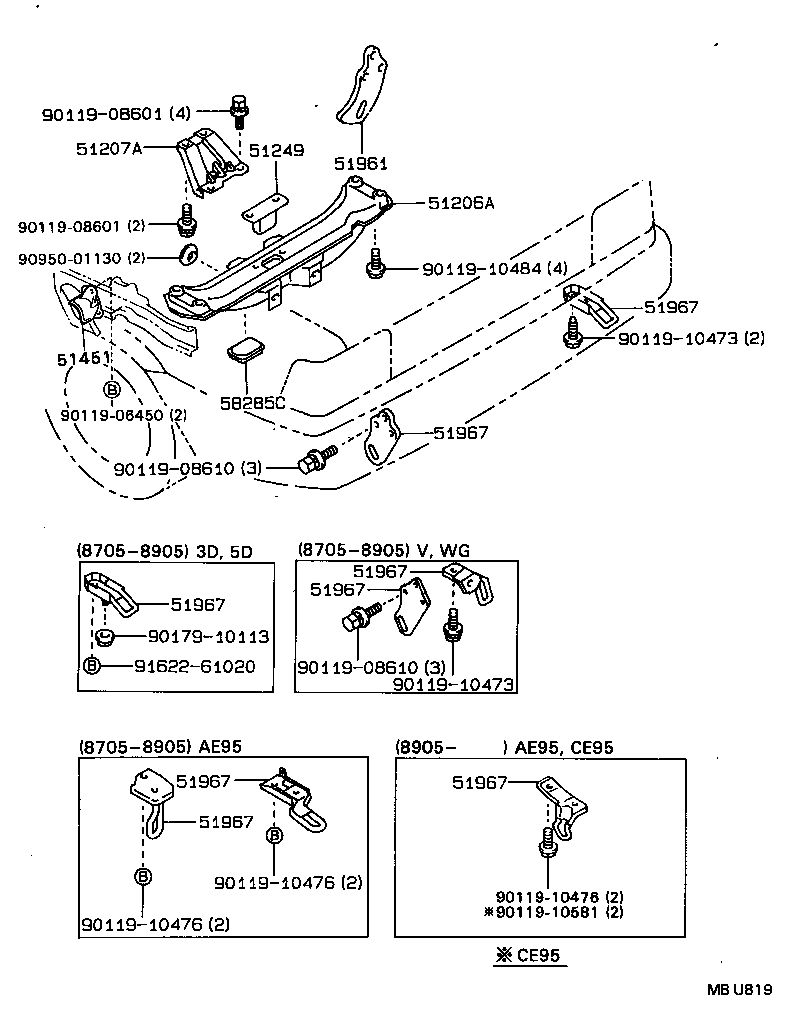

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

diagram 51206A 51207A 51249 51451 51961 51967 51967 51967 51967 51967 51967 51967 51967 58285C 9011906450 9011908601 9011908601 9011908610 9011908610 9011910473 9011910473 9011910476 9011910476 9011910476 9011910484 9011910581 9017910113 9095001130 9162261020
Part # Description Qty Price
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-12030

AE91,92,CE90,EE90

 1
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-12020

AE91,92,CE90,EE90

 1
51249-12030

AE91,92,CE90,EE90

 1
51961 - HOOK, NO.1
51963-12180

AE9#,CE9#,EE9#

 2
51967 - HOOK, TRANSPORT, REAR
51095-12040

AE91,92,CE90,EE90..4D

右側

 1
51968-12020

AE91,92,CE90,EE90..4D,WG

左側

 1
51967 - HOOK, TRANSPORT, REAR
51095-12040

AE91,92,CE90,EE90..4D

右側

 1
51968-12020

AE91,92,CE90,EE90..4D,WG

左側

 1
51967 - HOOK, TRANSPORT, REAR
51095-12040

AE91,92,CE90,EE90..4D

右側

 1
51968-12020

AE91,92,CE90,EE90..4D,WG

左側

 1
51967 - HOOK, TRANSPORT, REAR
51095-12040

AE91,92,CE90,EE90..4D

右側

 1
51968-12020

AE91,92,CE90,EE90..4D,WG

左側

 1
51967 - HOOK, TRANSPORT, REAR
51095-12040

AE91,92,CE90,EE90..4D

右側

 1
51968-12020

AE91,92,CE90,EE90..4D,WG

左側

 1
51967 - HOOK, TRANSPORT, REAR
51095-12040

AE91,92,CE90,EE90..4D

右側

 1
51968-12020

AE91,92,CE90,EE90..4D,WG

左側

 1
51967 - HOOK, TRANSPORT, REAR
51095-12040

AE91,92,CE90,EE90..4D

右側

 1
51968-12020

AE91,92,CE90,EE90..4D,WG

左側

 1
51967 - HOOK, TRANSPORT, REAR
51095-12040

AE91,92,CE90,EE90..4D

右側

 1
51968-12020

AE91,92,CE90,EE90..4D,WG

左側

 1
58285C - COVER, REAR FLOOR HOLE
58285-12020

AE91,92,CE90,EE90

 2
Common parts
90119-06450
90119-08601
90119-08610
90119-10473
90119-10476
90119-10484
90119-10581
90179-10113
90950-01130
91622-61020

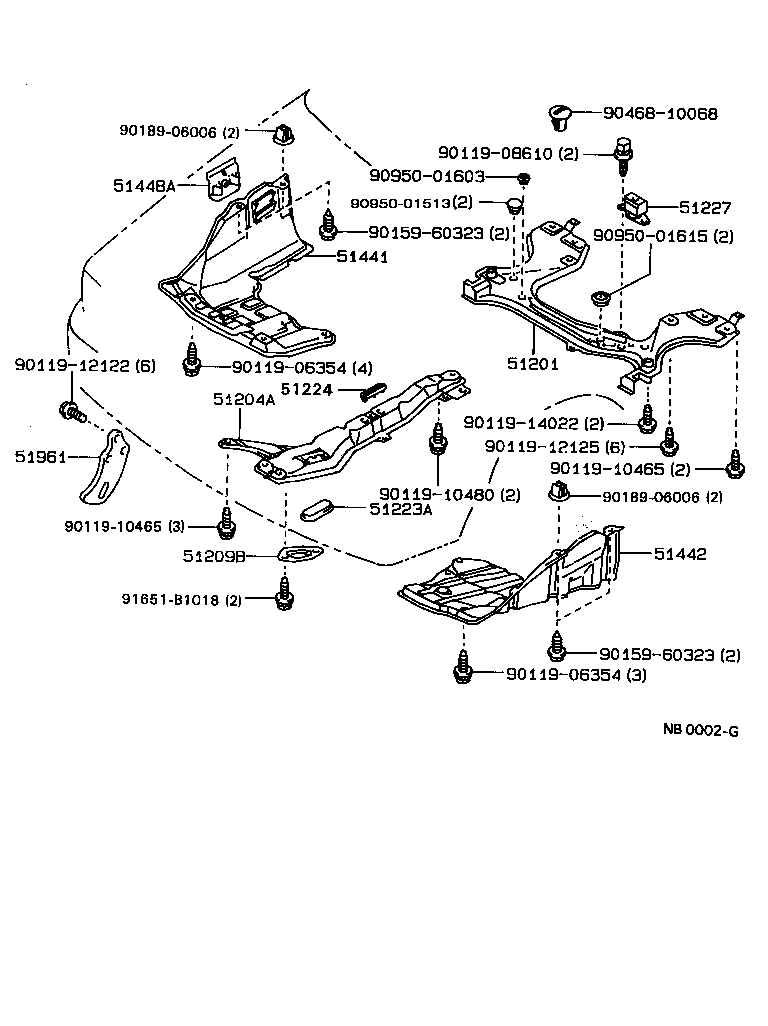

ILLUST NO. 1 OF 2(8705- )

Click highlighted areas on diagram

diagram 51201 51204A 51209B 51223A 51224 51227 51441 51442 51448A 51961 9011906354 9011906354 9011908610 9011910465 9011910465 9011910480 9011912122 9011912125 9011914022 9015960323 9015960323 9018906006 9018906006 9046810068 9095001513 9095001603 9095001615 91651B1018
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12281

AE91,92,CE9#,EE9#

 1
51201-12280

AE9#,CE9#,EE9#

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12060

AE91,92,CE90,96,97,EE9#

 1
51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51209-20010

AE9#,CE9#,EE9#

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-20020

AE91,92,CE90,96,97,EE9#

 2
51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-12030

AE91,92,CE90,EE90

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-12120

AE9#,CE9#,EE9#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-12050

AE9#,CE9#,EE9#..MTM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

AE9#,CE9#,EE9#

 1
51961 - HOOK, NO.1
51963-12180

AE9#,CE9#,EE9#

 2
Common parts
90119-06354
90119-08610
90119-10465
90119-10480
90119-12122
90119-12125
90119-14022
90159-60323
90189-06006
90468-10068
90950-01513
90950-01603
90950-01615
91651-B1018
