AE91-AEKBU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D,4D,5D

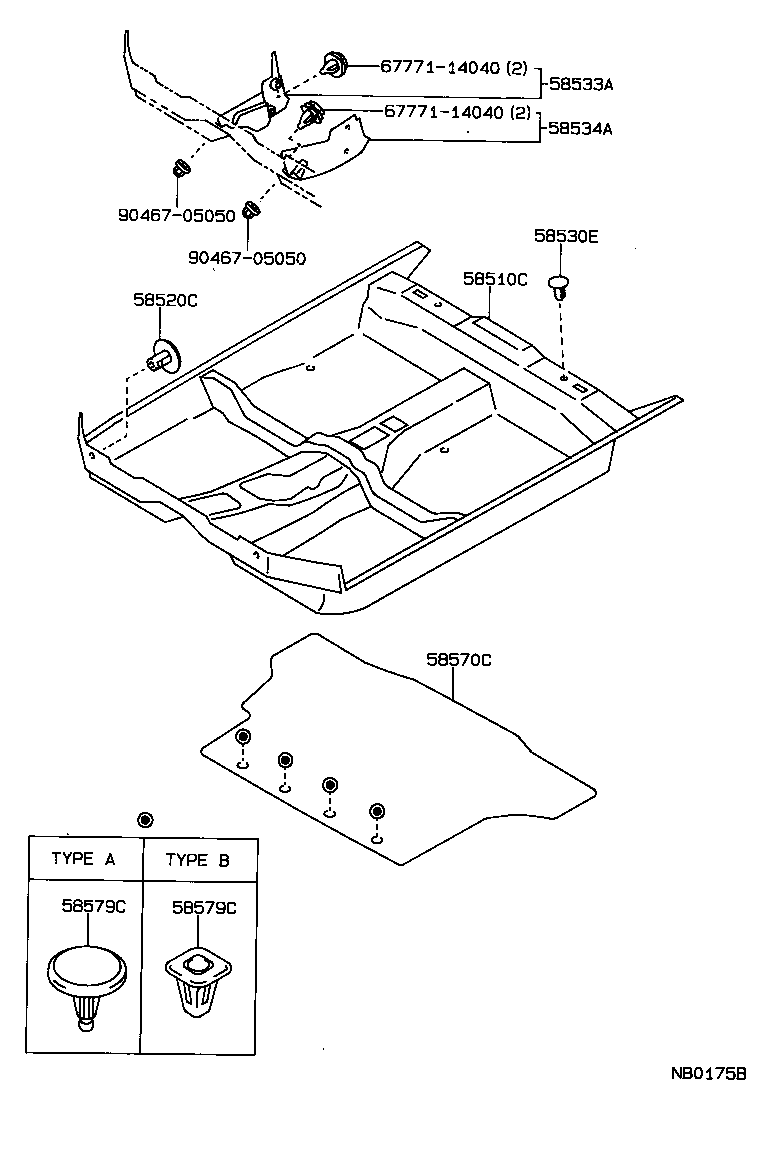

Click highlighted areas on diagram

diagram 58510C 58520C 58530E 58533A 58534A 58570C 58579C 58579C 6777114040 6777114040 9046705050 9046705050
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1A21003

AE91,CE90,EE90..(4D,5D,WG)..(DX,FXL,LT,TX,XE)

SHADOW GRAY,TRIM1#

 1
58510-1A23003

AE91,CE90,EE90..(4D,5D,WG)..(DX,FXL,LT,TX,XE)

ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0906801

AE91,92,CE90,EE90..DX,FXGT,GT

BLACK,TRIM1#

 2
90467-0906801

AE91,92,CE90,EE90..DX,FXGT,GT

BLACK,TRIM1#

 2
58530E - CLIP(FOR FRONT FLOOR REAR CARPET)
90467-0604901

AE91,92,CE90,EE90..DX,FXGT,GT

BLACK,TRIM1#

 2
90467-0604903

AE9#,CE90,EE90

GRAY,TRIM1#

 2
58533A - COVER, FLOOR CARPET, CENTER RH
58533-12020

AE91,92,CE90,96,97,EE9#

 1
58534A - MAT, TRANSMISSION COVER
58534-12010

AE9#,CE9#,EE9#

 1
Common parts
67771-14040
90467-05050
