AE91-AEKBU (1987)
Toyota Corolla
ILLUST NO. 1 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-1276001 |
CE90..DX;AE91,EE90..DX,TX 13X5J,SILVER,040 ,164 ,168 ,3E5 ,4H6 ,8D7,ﾀｲﾌﾟ A |
4 | ||
| 42611-1276001 |
AE91,CE90,EE90..DX 13X5J,SILVER,040 ,164 ,168 ,3E5 ,4H6 ,4H7 ,8D7,ﾀｲﾌﾟ A |
4 | ||
| 42611-1276003 |
AE91,CE90,EE90..(3FC,4F,5F)..DX 13X5J,SILVER,040 ,164 ,168 ,3E5 ,4H6 ,4H7 ,8B5,ﾀｲﾌﾟ A |
4 | ||
| 42611-1276001 |
AE91,CE90,EE90..(3FC,4F,5F)..DX 13X5J,SILVER,040 ,164 ,168 ,3E5 ,4H6 ,4H7,ﾀｲﾌﾟ A |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-16200 |
AE91,92,CE90,EE90 14X4T,TYPE H |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
CE97,EE97..GL;AE9#,CE90,EE90..DX,FXD,FXGT,FXL,FXZI,GT,SE,TX,XE |
16 | ||
| 90942-01007 |
CE97,EE97..GL;CE90..DX,SE,TX;AE9#,EE90..DX,FXD,FXGT,FXL,FXZI,GT,SE,TX,XE |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03017 |
AE9#,CE9#,EE9# 20G,厚さ=8 |
1 | ||
| 90942-03022 |
AE9#,CE9#,EE9# 40G,厚さ=9.5 |
1 | ||
| 90942-03027 |
AE9#,CE9#,EE9# 60G,厚さ=9.5 |
1 | ||
| 90942-03100 |
AE9#,CE9#,EE9# 35G |
1 | ||
| 90942-03099 |
AE9#,CE9#,EE9# 25G |
1 | ||
| 90942-03041 |
AE9#,CE9#,EE9# 10G,厚さ=7.5 |
1 | ||
| 90942-03031 |
AE9#,CE9#,EE9# 80G,厚さ=9.5 |
1 | ||
| 90942-03102 |
AE9#,CE9#,EE9# 55G |
1 | ||
| 90942-03098 |
AE9#,CE9#,EE9# 15G |
1 | ||
| 90942-03025 |
AE9#,CE9#,EE9# 50G,厚さ=9.5 |
1 | ||
| 90942-03029 |
AE9#,CE9#,EE9# 70G,厚さ=9.5 |
1 | ||
| 90942-03108 |
AE9#,CE9#,EE9# 65G |
1 | ||
| 90942-03020 |
AE9#,CE9#,EE9# 30G,厚さ=10 |
1 | ||
| 90942-03109 |
AE9#,CE9#,EE9# 75G |
1 | ||
| 90942-03101 |
AE9#,CE9#,EE9# 45G |
1 | ||
| 90942-03161 |
AE9#,CE9#,EE9# 5G |
1 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
AE9#,CE9#,EE9# TYPE B |
5 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
AE9#,CE9#,EE9# TYPE B |
5 | ||
ILLUST NO. 2 OF 3(8705- )
| Part # | Description | Qty | Price |
|---|

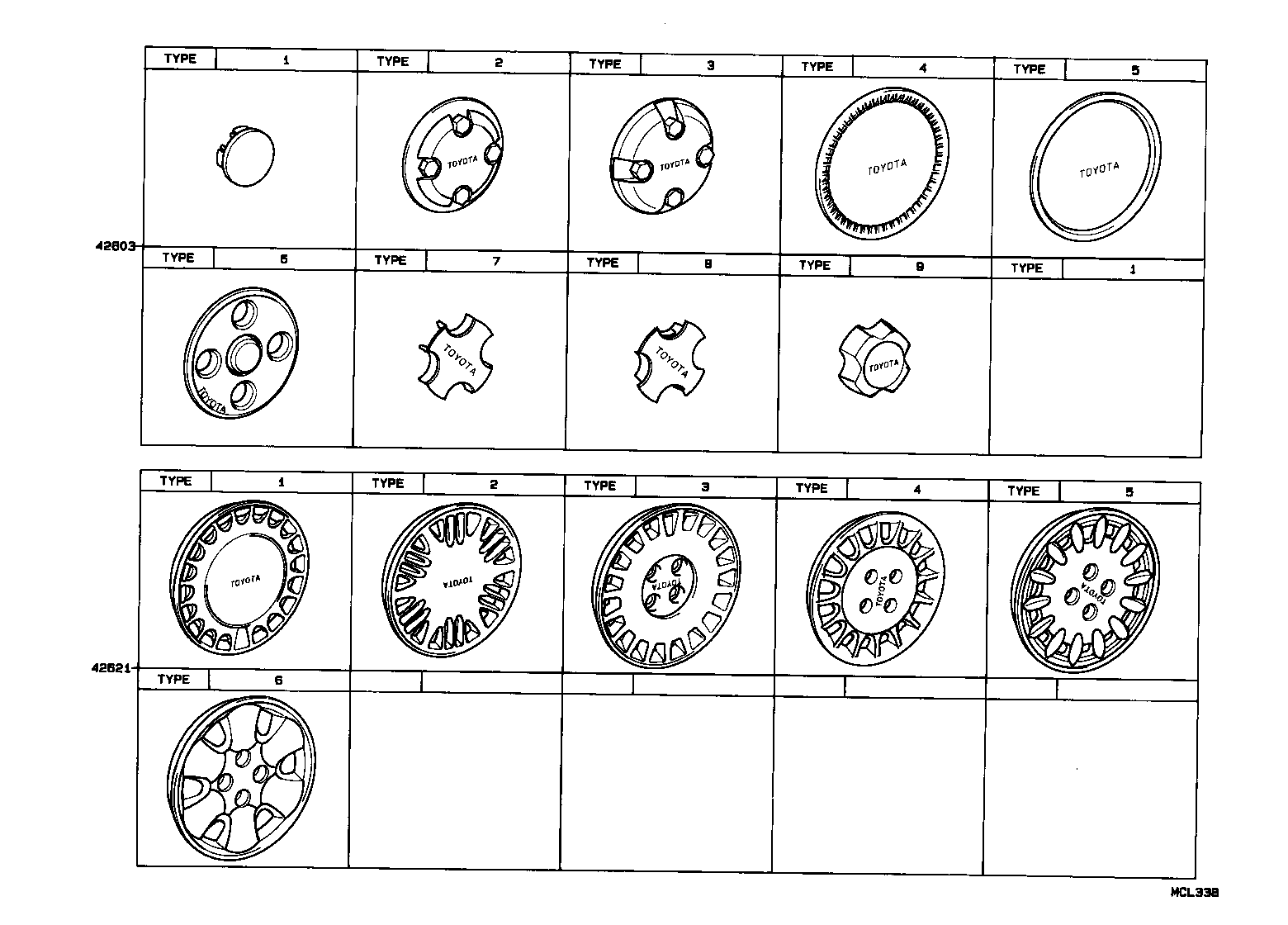

ILLUST NO. 3 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-12230 |
EE97..GL;CE90..5F..DX;AE91,EE90..DX,FXD,TX *STE |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-12210 |
AE91,95,CE90 SE ｻﾙ-ﾝ ﾘﾐﾃﾂﾄﾞ;TYPE 2 |
4 | ||
