AE91-AEKBU (1987)
Toyota Corolla

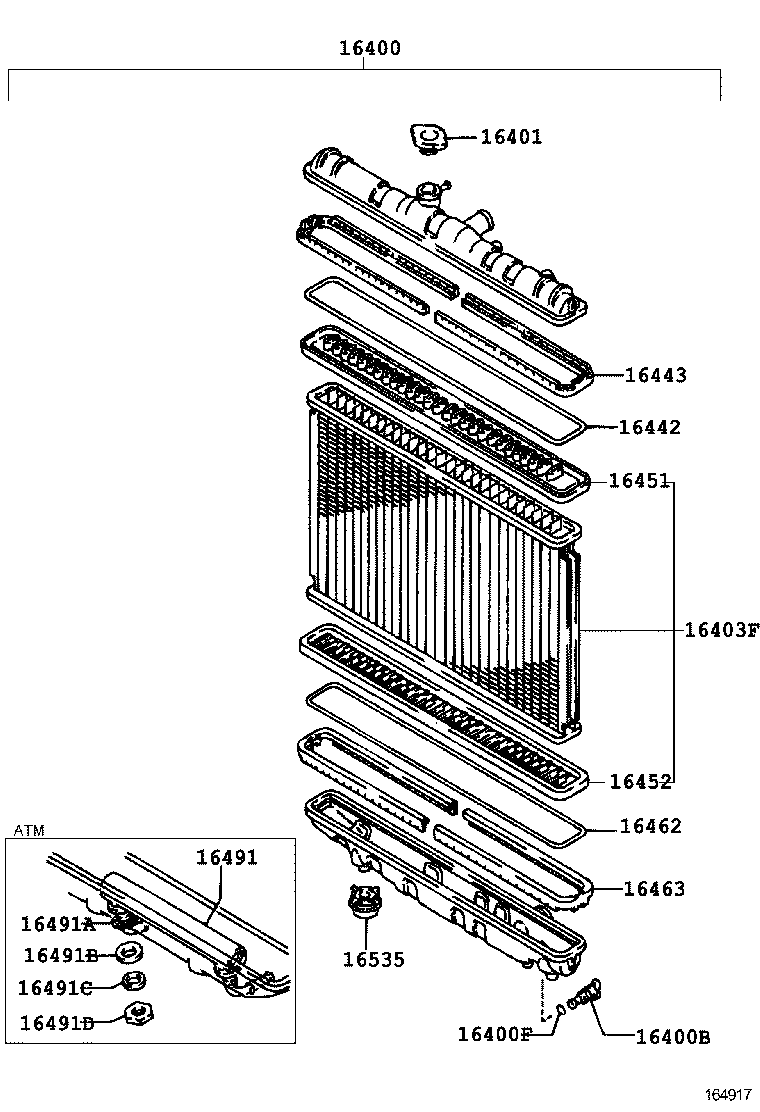

ILLUST NO. 2 OF 2(8705- )4AGE,4AF#,5AF#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-15370 |
5AF..AE91..4D..MTM |
1 | ||
| 16400-15370 |
5AF..AE91..4D..MTM |
1 | ||
| 16400-15370 |
5AF..AE91..4D..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 23322-54010 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 23322-54010 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16417-15210 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16417-15210 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16417-15210 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16418-24200 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16418-24200 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 96711-19007 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 96711-19007 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 96711-19007 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-15210 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16401-15210 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16401-15210 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16401-63010 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16401-63010 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16401-63010 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-15370 |
5AF..AE91..(4D,WG)..MTM;5AFE..AE91..MTM..(DX,FXL,G,LT,SE,TX,XE) TOYO |
1 | ||
| 16403-15370 |
5AF..AE91..(4D,WG)..MTM;5AFE..AE91..MTM..(DX,FXL,G,LT,SE,TX,XE) TOYO |
1 | ||
| 16403-15370 |
5AF..AE91..(4D,WG)..MTM;5AFE..AE91..MTM..(DX,FXL,G,LT,SE,TX,XE) TOYO |
1 | ||
| 16403-11030 |
5AF..AE91..(4D,WG)..MTM;5AFE..AE91..MTM..(DX,FXL,G,LT,SE,TX,XE) NIPPONDENSO |
1 | ||
| 16403-11030 |
5AF..AE91..(4D,WG)..MTM;5AFE..AE91..MTM..(DX,FXL,G,LT,SE,TX,XE) NIPPONDENSO |
1 | ||
| 16403-11030 |
5AF..AE91..(4D,WG)..MTM;5AFE..AE91..MTM..(DX,FXL,G,LT,SE,TX,XE) NIPPONDENSO |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-63030 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16442-63030 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16442-63030 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16442-70080 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16442-70080 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16442-70080 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15370 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
2 | ||
| 16443-15370 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
2 | ||
| 16443-15370 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
2 | ||
| 16443-15321 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
2 | ||
| 16443-15321 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
2 | ||
| 16443-15321 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-70080 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16451-70080 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16451-70080 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16451-63030 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16451-63030 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16451-63030 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-63030 |
5AFE..AE91..4FC;5AF..AE91..4D,WG;5AFE..AE91..5F..SE;5AF..AE91..ATM..(FXG,FXL) NIPPONDENSO |
1 | ||
| 16452-63030 |
5AFE..AE91..4FC;5AF..AE91..4D,WG;5AFE..AE91..5F..SE;5AF..AE91..ATM..(FXG,FXL) NIPPONDENSO |
1 | ||
| 16452-63030 |
5AFE..AE91..4FC;5AF..AE91..4D,WG;5AFE..AE91..5F..SE;5AF..AE91..ATM..(FXG,FXL) NIPPONDENSO |
1 | ||
| 16452-15370 |
5AFE..AE91..4FC;5AF..AE91..4D,WG;5AFE..AE91..5F..SE;5AF..AE91..ATM..(FXG,FXL) TOYO |
1 | ||
| 16452-15370 |
5AFE..AE91..4FC;5AF..AE91..4D,WG;5AFE..AE91..5F..SE;5AF..AE91..ATM..(FXG,FXL) TOYO |
1 | ||
| 16452-15370 |
5AFE..AE91..4FC;5AF..AE91..4D,WG;5AFE..AE91..5F..SE;5AF..AE91..ATM..(FXG,FXL) TOYO |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-15370 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16462-15370 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16462-15370 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
1 | ||
| 16462-63030 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16462-63030 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16462-63030 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
2 | ||
| 16463-15320 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
2 | ||
| 16463-15320 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC NIPPONDENSO |
2 | ||
| 16463-15370 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
2 | ||
| 16463-15370 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
2 | ||
| 16463-15370 |
5AF..AE91..4D,WG;5AFE..AE91..(4D,WG)..5F;5AF..AE91..ATM..(FXG,FXL);5AFE,5AFHE..AE91..3FC,4F,4FC TOYO |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-15020 |
5AF#..AE91 |
2 | ||
| 16535-15020 |
5AF#..AE91 |
2 | ||
| 16535-15020 |
5AF#..AE91 |
2 | ||

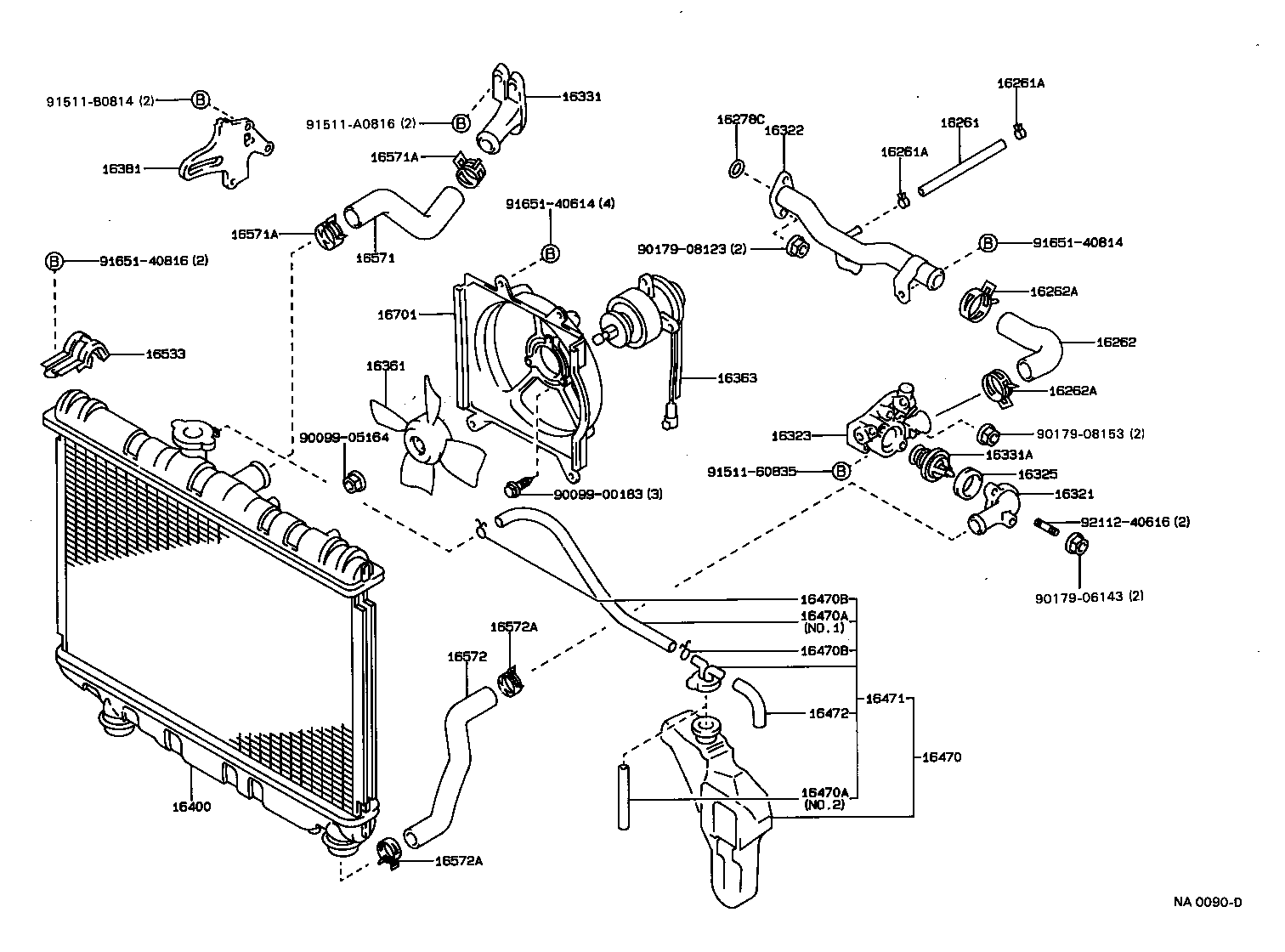

ILLUST NO. 1 OF 2(8705-8908)4AF,5AF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 99555-10200 |
4AF,5AF..AE91,95 *H,L=200 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
4AF,5AF#..AE91,95 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
4AF,5AF#..AE91,95 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-15030 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-36001 |
4AF#,5AF#..AE91,95 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-36001 |
4AF#,5AF#..AE91,95 |
2 | ||
| 16278C - RING, O(FOR WATER BY-PASS PIPE NO.2) | ||||
| 96711-24035 |
4A#,5AF#..AE9# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-15020 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-15020 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15060 |
4AF,5AF..AE91,95 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4A#,5AF#..AE9# |
1 | ||
| 16325-63010 |
4A#,5AF#..AE9# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15080 |
4AF,5AF..AE91,95..MTM;4AFE,5AFHE,5AFE..AE91,95 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4AF,5AF#..AE91,95 *WAX 82−95 |
1 | ||
| 90916-03046 |
4AF,5AF..AE91,95 *WAX 82−95 |
1 | ||
| 16361 - FAN | ||||
| 16361-15080 |
5AF..AE91..4D..ATM;4AGE,5AF#..AE91,92..MTM |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-16030 |
5AF..AE91..4D..ATM;4AGE,5AF#..AE91,92..MTM |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15060 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15370 |
5AF..AE91..4D..MTM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15040 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4A#,5AF#..AE9# 長さ=600,NO.2 |
1 | ||
| 90445-12117 |
4AF,5AF#..AE91,95 *H,L=460,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4A#,5AF#..AE9# 長さ=600,NO.2 |
1 | ||
| 90445-12117 |
4AF,5AF#..AE91,95 *H,L=460,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15050 |
4AF#,5AF#..AE91,95 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
4AGE,4AF#,5AF#..AE9# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-15090 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15150 |
5AF#..AE91 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15190 |
4AF..AE95..5F;5AFE..AE91..3D,4D;5AF..AE91..3D,4D,5D |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AGE,4AF#,5AF#..AE9# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15220 |
5AF..AE91..4D..ATM;4AGE,5AF#..AE91,92..MTM |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90179-06143 | ||||
| 90179-08123 | ||||
| 90179-08153 | ||||
| 91511-60835 | ||||
| 91511-A0816 | ||||
| 91511-B0814 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 92112-40616 | ||||
