AE91-AEKBU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4AF#,5AF#

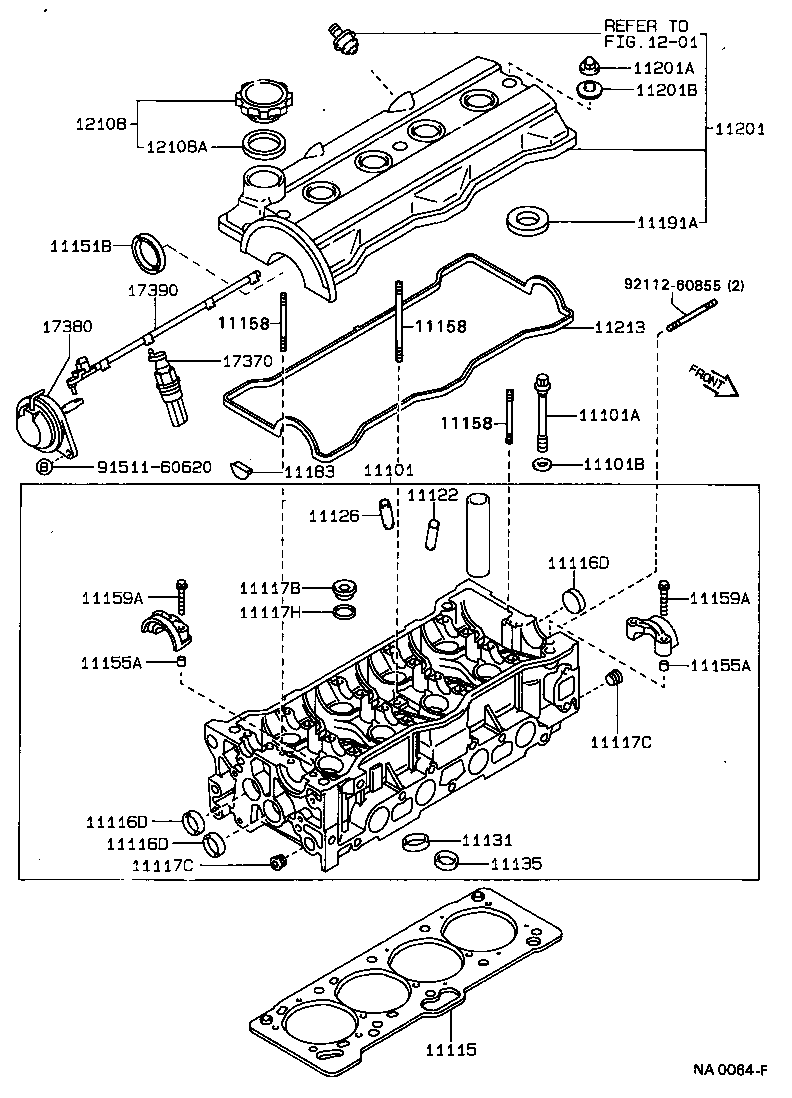

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11116D 11116D 11116D 11117B 11117C 11117C 11117H 11122 11126 11131 11135 11151B 11155A 11155A 11158 11158 11158 11159A 11159A 11183 11191A 11201 11201A 11201B 11213 1201 12108 12108A 17370 17380 17390 9151160620 9211260855
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-19205

5AF..AE91

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90109-10059

4AGE,4AF#,5AF#..AE9#

EXHAUST

 5
90109-10058

4AGE,4AF#,5AF#..AE9#

INTAKE

 5
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

4AGE,4AF#,5AF#..AE9#

 10
11115 - GASKET, CYLINDER HEAD
11115-15071

5AF#..AE91

 1
11116D - PLUG, TIGHT, NO.4
96411-42800

4AF#,5AF#..AE91,95

 3
11116D - PLUG, TIGHT, NO.4
96411-42800

4AF#,5AF#..AE91,95

 3
11116D - PLUG, TIGHT, NO.4
96411-42800

4AF#,5AF#..AE91,95

 3
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002

4AF#,5AF#..AE91,95

 2
11117C - PLUG, W/HEAD TAPER SCREW, NO.3
90344-53005

4AF,5AF..AE91,95

 2
11117C - PLUG, W/HEAD TAPER SCREW, NO.3
90344-53005

4AF,5AF..AE91,95

 2
11117H - GASKET(FOR WATER HOLE)
90430-20004

4AF#,5AF#..AE91,95

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-15030

4AF#,5AF#..AE91,95

STD

 8
11123-15030

4AF#,5AF#..AE91,95

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-15030

4AF#,5AF#..AE91,95

O/S 0.05

 8
11122-15030

4AF#,5AF#..AE91,95

STD

 8
11131 - SEAT, INTAKE VALVE
11131-15030

5AF..AE91

STD

 8
11132-15030

5AF..AE91

O/S 0.03

 8
11135 - SEAT, EXHAUST VALVE
11135-15030

4AF#,5AF#..AE91,95

STD

 8
11136-15030

4AF#,5AF#..AE91,95

O/S 0.03

 8
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35013

4AF,5AF#..AE91,95

 1
11155A - PIN, RING W/HEAD
90253-09001

4AF#,5AF#..AE91,95

 6
11155A - PIN, RING W/HEAD
90253-09001

4AF#,5AF#..AE91,95

 6
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06073

4AF#,5AF#..AE91,95

長さ=108,L=108

 1
90116-06074

4AF#,5AF#..AE91,95

長さ=80,長さ=80

 2
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06073

4AF#,5AF#..AE91,95

長さ=108,L=108

 1
90116-06074

4AF#,5AF#..AE91,95

長さ=80,長さ=80

 2
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06073

4AF#,5AF#..AE91,95

長さ=108,L=108

 1
90116-06074

4AF#,5AF#..AE91,95

長さ=80,長さ=80

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

4AF#,5AF#..AE91,95

 22
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

4AF#,5AF#..AE91,95

 22
11183 - PLUG, SEMICIRCULAR
11183-15020

4AF#,5AF#..AE91,95

 1
11191A - GASKET(FOR SPARK PLUG TUBE)
11193-15010

4AF#,5AF#..AE91,95

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-15900

4AF,5AF#..AE91,95

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06008

4AF#,5AF#..AE91,95

 3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08020

4AF#,5AF#..AE91,95

 3
11213 - GASKET, CYLINDER HEAD COVER
11213-15050

4AF#,5AF#..AE91,95

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-62010

4AF,5AF#..AE91,95

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

4AGE,4AF#,5AF#..AE9#

 1
17370 - VALVE ASSY, SWIRL CONTROL
17370-15020

5AF..AE91

 4
17380 - ACTUATOR ASSY, SWIRL CONTROL
17380-15030

5AF..AE91

 1
17390 - LINK ASSY, SWIRL CONTROL
17390-15030

5AF..AE91

 1
Common parts
91511-60620
92112-60855
Linked diagrams
1201
