AE91-AEKBK (1989)
Toyota Corolla

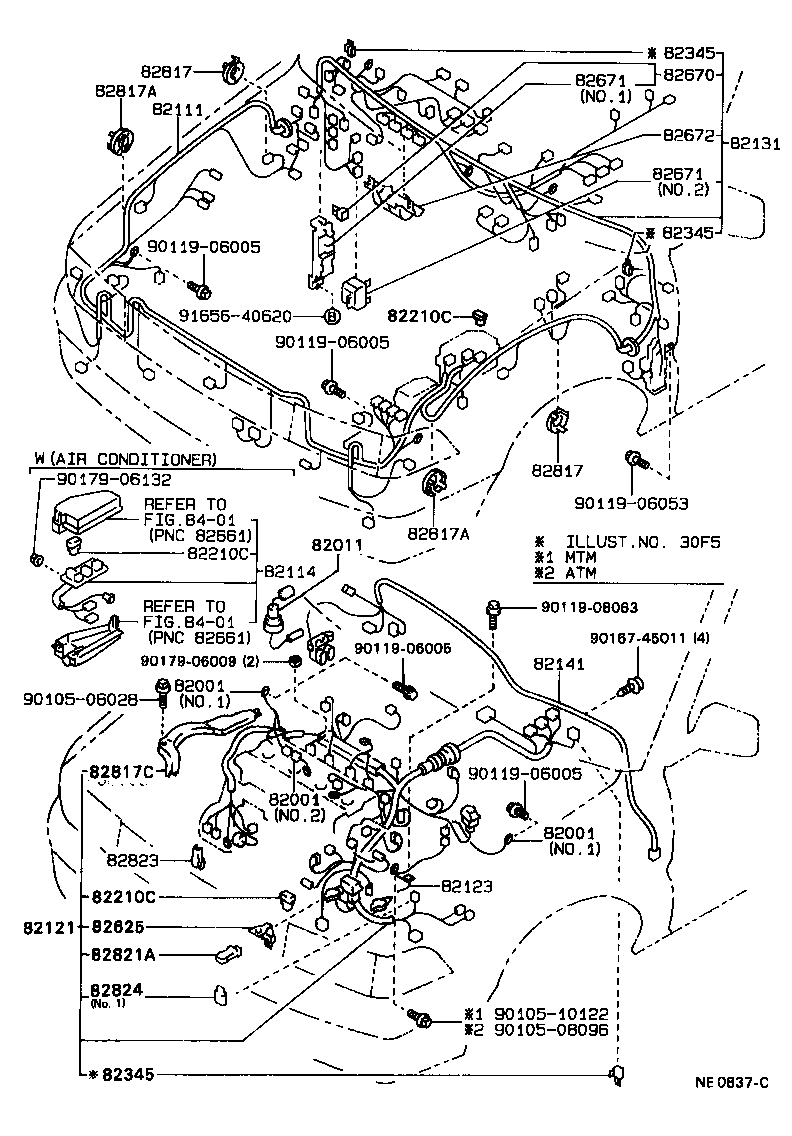

ILLUST NO. 1 OF 5(8905- )AE91,95..EFI,EFIS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1A200 |
AE91,95..DX,TX,XE |
1 | ||
| 82111-1A220 |
AE91,92..EFI |
1 | ||
| 82111-1A550 |
AE91,95..DX,TX,XE |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-12040 |
AE9#,CE9#,EE9# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1E160 |
AE91..MTM..EFI |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12160 |
AE9#,EE9#..4F,4FC,5F |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1A590 |
AE91..4D..(3FC,4F) |
1 | ||
| 82131-1E890 |
AE91..DX,TX |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
AE9#..EFI 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08223 |
AE9#..EFI 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
AE95;AE91,92,CE9#..DSL,EFI 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
AE9# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08253 |
EE90..3FC;AE91,92..EFI,EFIS 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
AE91,92;EE90..3FC 80A,ｵｽ端子,黒 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
AE9#..EFI 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08223 |
AE9#..EFI 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
AE95;AE91,92,CE9#..DSL,EFI 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
AE9# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08253 |
EE90..3FC;AE91,92..EFI,EFIS 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
AE91,92;EE90..3FC 80A,ｵｽ端子,黒 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
AE9#..EFI 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08223 |
AE9#..EFI 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
AE95;AE91,92,CE9#..DSL,EFI 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
AE9# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08253 |
EE90..3FC;AE91,92..EFI,EFIS 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
AE91,92;EE90..3FC 80A,ｵｽ端子,黒 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
AE91,95 NO.8 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
AE91,95 NO.8 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
AE91,95 NO.8 |
1 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-12020 |
AE91..EFI |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12070 |
AE91,CE90,EE90..DX,FXD,FXL,TX,XE NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12070 |
AE91,CE90,EE90..DX,FXD,FXL,TX,XE NO.2 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12081 |
AE9#,CE90,EE90..3D,4D,5D |
1 | ||
| 82672-12080 |
AE9#,CE9#,EE9# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE9#,EE9# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE9#,EE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE9#,EE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE9#,EE9# |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12180 |
AE91..EFI BATTERY TERMINAL |
1 | ||
| 82821-12180 |
AE91,EE90 BATTERY TERMINAL |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AE9#,EE9# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
AE9#,CE9#,EE9# NO.1 |
1 | ||
| Common parts | ||||
| 90105-06028 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08063 | ||||
| 90167-45011 | ||||
| 90179-06009 | ||||
| 90179-06132 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
