AE91-AEHDU (1987)
Toyota Corolla

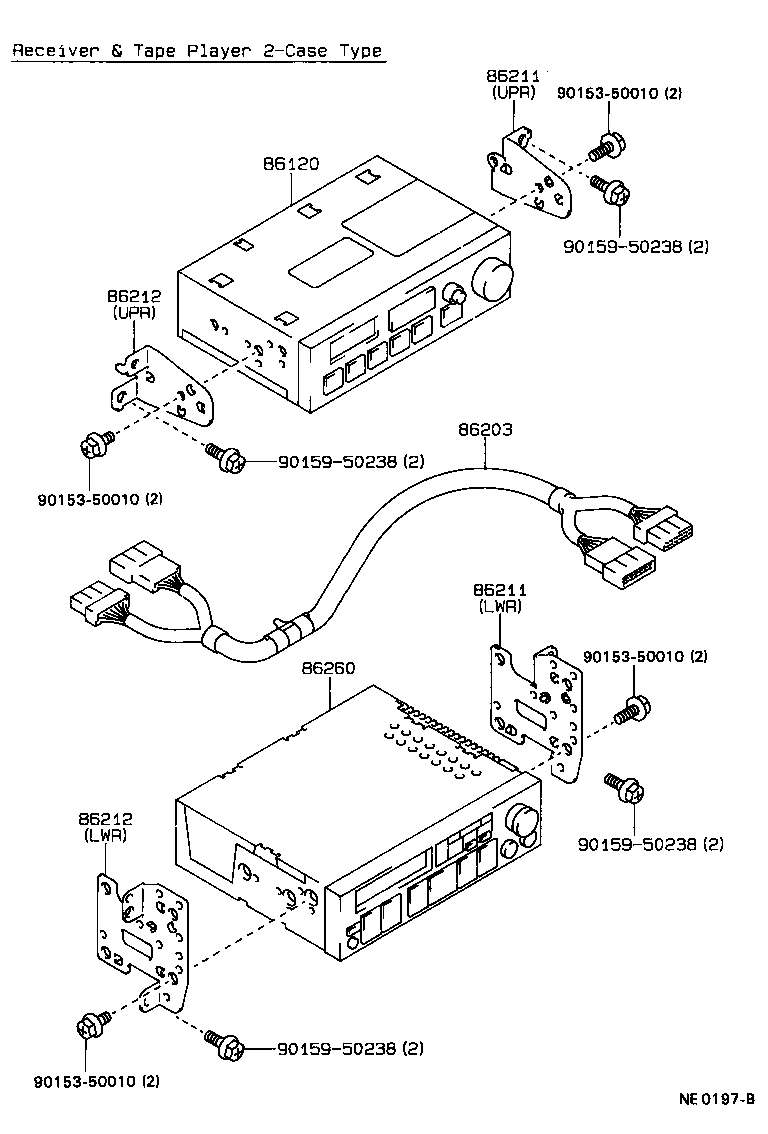

ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-12550 |
AE91,95,CE9#,EE9#..DX,FXD,FXG,FXL,GL,STD,TX,XE FUJITSU TEN,TEN |
1 | ||
| 86120-12440 |
AE91,95,CE90..DX,FXG,FXL,TX,XE AM/FM,ETR |
1 | ||
| 86120-12540 |
AE9#,CE90..3D,4D,5D;EE90..FXD,FXL,TX,XE FUJITSU TEN,*AFM |
1 | ||
| 86120-12590 |
AE91,95,CE9#,EE9#..DX,FXD,FXG,FXL,GL,STD,TX,XE PANASONIC,MATSUSHITA |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-12120 |
AE91,95,CE90,EE90..(FXD,FXG,FXL,SE,TX,XE)..(CBR,DSL) 13P DIN |
1 | ||
| 86203-12130 |
AE9#,CE90..3D,4D,5D;EE90..FXD,FXL,TX,XE ｱﾘ(*AFM),NO.1 |
1 | ||
| 86203-12131 |
AE9#,CE90..3D,4D,5D;EE90..FXD,FXL,TX,XE ｱﾘ(*AFM),NO.1 |
1 | ||
| 86203-12100 |
EE90..3FC..DX;EE90..FXD,FXL,TX,XE;AE91,95,CE90..DX,FXG,FXL,TX,XE ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12220 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 86211-12210 |
AE91,95,CE9#,EE9#..(CTD,DX,FXD,FXG,FXL,FXV,G,GL,L,LT,SE,STD,TX,XE)..(CBR,DSL,EFI) 上側 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12220 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 86211-12210 |
AE91,95,CE9#,EE9#..(CTD,DX,FXD,FXG,FXL,FXV,G,GL,L,LT,SE,STD,TX,XE)..(CBR,DSL,EFI) 上側 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12200 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 86212-12190 |
AE91,95,CE9#,EE9#..(CTD,DX,FXD,FXG,FXL,FXV,G,GL,L,LT,SE,STD,TX,XE)..(CBR,DSL,EFI) 上側 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12200 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 86212-12190 |
AE91,95,CE9#,EE9#..(CTD,DX,FXD,FXG,FXL,FXV,G,GL,L,LT,SE,STD,TX,XE)..(CBR,DSL,EFI) 上側 |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-19105 |
AE91..FXZI;AE92,95,CE9#,EE9#;AE91..(3D,4D,5D)..CBR ｵ-ﾄ ﾘﾊﾞ-ｽ ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ,TEN |
1 | ||
| 86260-19135 |
AE91..FXZI;AE92,95,CE90,EE90;AE91..(3D,4D,5D)..CBR ｲｺﾗｲｻﾞ ﾂｷ ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ,TEN |
1 | ||
| 86260-19155 |
AE91..FXZI;AE92,95,CE90,EE90;AE91..(3D,4D,5D)..CBR ﾌｴ-ﾀﾞ ｺﾝﾄﾛ-ﾙ ﾂｷ ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ,MATSUSHITA |
1 | ||
| 86260-19125 |
AE91..FXZI;AE92,95,CE90,EE90;AE91..(3D,4D,5D)..CBR ﾌｴ-ﾀﾞ ｺﾝﾄﾛ-ﾙ ﾂｷ ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ,TEN |
1 | ||
| 86260-19115 |
EE96..4F;AE9#,CE9#,EE90,97,98..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE FM ﾏﾙﾁ ﾂｷ ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ,TEN |
1 | ||
| 86260-19165 |
AE91..FXZI;AE92,95,CE90,EE90;AE91..(3D,4D,5D)..CBR ｲｺﾗｲｻﾞ ﾂｷ ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ,MATSUSHITA |
1 | ||
| 86260-19145 |
AE91..FXZI;AE92,95,CE9#,EE9#;AE91..(3D,4D,5D)..CBR ｵ-ﾄ ﾘﾊﾞ-ｽ ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ,MATSUSHITA |
1 | ||
| 86260-19175 |
EE96..4F;AE9#,CE9#,EE90,97,98..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE FM ﾏﾙﾁ ﾂｷ ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ,MATSUSHITA |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50238 | ||||
ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-12550 |
AE91,95,CE9#,EE9#..DX,FXD,FXG,FXL,GL,STD,TX,XE FUJITSU TEN,TEN |
1 | ||
| 86120-12440 |
AE91,95,CE90..DX,FXG,FXL,TX,XE AM/FM,ETR |
1 | ||
| 86120-12540 |
AE9#,CE90..3D,4D,5D;EE90..FXD,FXL,TX,XE FUJITSU TEN,*AFM |
1 | ||
| 86120-12590 |
AE91,95,CE9#,EE9#..DX,FXD,FXG,FXL,GL,STD,TX,XE PANASONIC,MATSUSHITA |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-12550 |
AE91,95,CE9#,EE9#..DX,FXD,FXG,FXL,GL,STD,TX,XE FUJITSU TEN,TEN |
1 | ||
| 86120-12440 |
AE91,95,CE90..DX,FXG,FXL,TX,XE AM/FM,ETR |
1 | ||
| 86120-12540 |
AE9#,CE90..3D,4D,5D;EE90..FXD,FXL,TX,XE FUJITSU TEN,*AFM |
1 | ||
| 86120-12590 |
AE91,95,CE9#,EE9#..DX,FXD,FXG,FXL,GL,STD,TX,XE PANASONIC,MATSUSHITA |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-12120 |
AE91,95,CE90,EE90..(FXD,FXG,FXL,SE,TX,XE)..(CBR,DSL) 13P DIN |
1 | ||
| 86203-12130 |
AE9#,CE90..3D,4D,5D;EE90..FXD,FXL,TX,XE ｱﾘ(*AFM),NO.1 |
1 | ||
| 86203-12131 |
AE9#,CE90..3D,4D,5D;EE90..FXD,FXL,TX,XE ｱﾘ(*AFM),NO.1 |
1 | ||
| 86203-12100 |
EE90..3FC..DX;EE90..FXD,FXL,TX,XE;AE91,95,CE90..DX,FXG,FXL,TX,XE ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ) |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-12120 |
AE91,95,CE90,EE90..(FXD,FXG,FXL,SE,TX,XE)..(CBR,DSL) 13P DIN |
1 | ||
| 86203-12130 |
AE9#,CE90..3D,4D,5D;EE90..FXD,FXL,TX,XE ｱﾘ(*AFM),NO.1 |
1 | ||
| 86203-12131 |
AE9#,CE90..3D,4D,5D;EE90..FXD,FXL,TX,XE ｱﾘ(*AFM),NO.1 |
1 | ||
| 86203-12100 |
EE90..3FC..DX;EE90..FXD,FXL,TX,XE;AE91,95,CE90..DX,FXG,FXL,TX,XE ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ) |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-12120 |
AE91,95,CE90,EE90..(FXD,FXG,FXL,SE,TX,XE)..(CBR,DSL) 13P DIN |
1 | ||
| 86203-12130 |
AE9#,CE90..3D,4D,5D;EE90..FXD,FXL,TX,XE ｱﾘ(*AFM),NO.1 |
1 | ||
| 86203-12131 |
AE9#,CE90..3D,4D,5D;EE90..FXD,FXL,TX,XE ｱﾘ(*AFM),NO.1 |
1 | ||
| 86203-12100 |
EE90..3FC..DX;EE90..FXD,FXL,TX,XE;AE91,95,CE90..DX,FXG,FXL,TX,XE ｱﾘ(ﾃ-ﾌﾟ ﾌﾟﾚ-ﾔ) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12220 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 86211-12210 |
AE91,95,CE9#,EE9#..(CTD,DX,FXD,FXG,FXL,FXV,G,GL,L,LT,SE,STD,TX,XE)..(CBR,DSL,EFI) 上側 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12220 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 86211-12210 |
AE91,95,CE9#,EE9#..(CTD,DX,FXD,FXG,FXL,FXV,G,GL,L,LT,SE,STD,TX,XE)..(CBR,DSL,EFI) 上側 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12220 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 86211-12210 |
AE91,95,CE9#,EE9#..(CTD,DX,FXD,FXG,FXL,FXV,G,GL,L,LT,SE,STD,TX,XE)..(CBR,DSL,EFI) 上側 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12200 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 86212-12190 |
AE91,95,CE9#,EE9#..(CTD,DX,FXD,FXG,FXL,FXV,G,GL,L,LT,SE,STD,TX,XE)..(CBR,DSL,EFI) 上側 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12200 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 86212-12190 |
AE91,95,CE9#,EE9#..(CTD,DX,FXD,FXG,FXL,FXV,G,GL,L,LT,SE,STD,TX,XE)..(CBR,DSL,EFI) 上側 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12200 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 86212-12190 |
AE91,95,CE9#,EE9#..(CTD,DX,FXD,FXG,FXL,FXV,G,GL,L,LT,SE,STD,TX,XE)..(CBR,DSL,EFI) 上側 |
1 | ||
| 86270A - DISC PLAYER ASSY | ||||
| 86270-12020 |
AE9#,CE90,EE90..FXD,FXG,FXGT,FXL,FXZI,GT,SE,TX,XE |
1 | ||
| 86270-12021 |
AE9#,CE90,EE90..FXD,FXG,FXGT,FXL,FXZI,GT,SE,TX,XE |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-12040 |
EE90..FXD,FXL,TX,XE;AE91,CE90..DX,FXG,FXL,SE,TX,XE NO.1 |
1 | ||
| 86280-12040 |
AE95,EE90..FXD,FXL,TX,XE;AE91,CE90..(3D,4D,5D)..(CBR,DSL) NO.1 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-12040 |
EE90..FXD,FXL,TX,XE;AE91,CE90..DX,FXG,FXL,SE,TX,XE NO.1 |
1 | ||
| 86280-12040 |
AE95,EE90..FXD,FXL,TX,XE;AE91,CE90..(3D,4D,5D)..(CBR,DSL) NO.1 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50238 | ||||
ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price |
|---|
