AE91-AEHDU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8705-8905)

Click highlighted areas on diagram

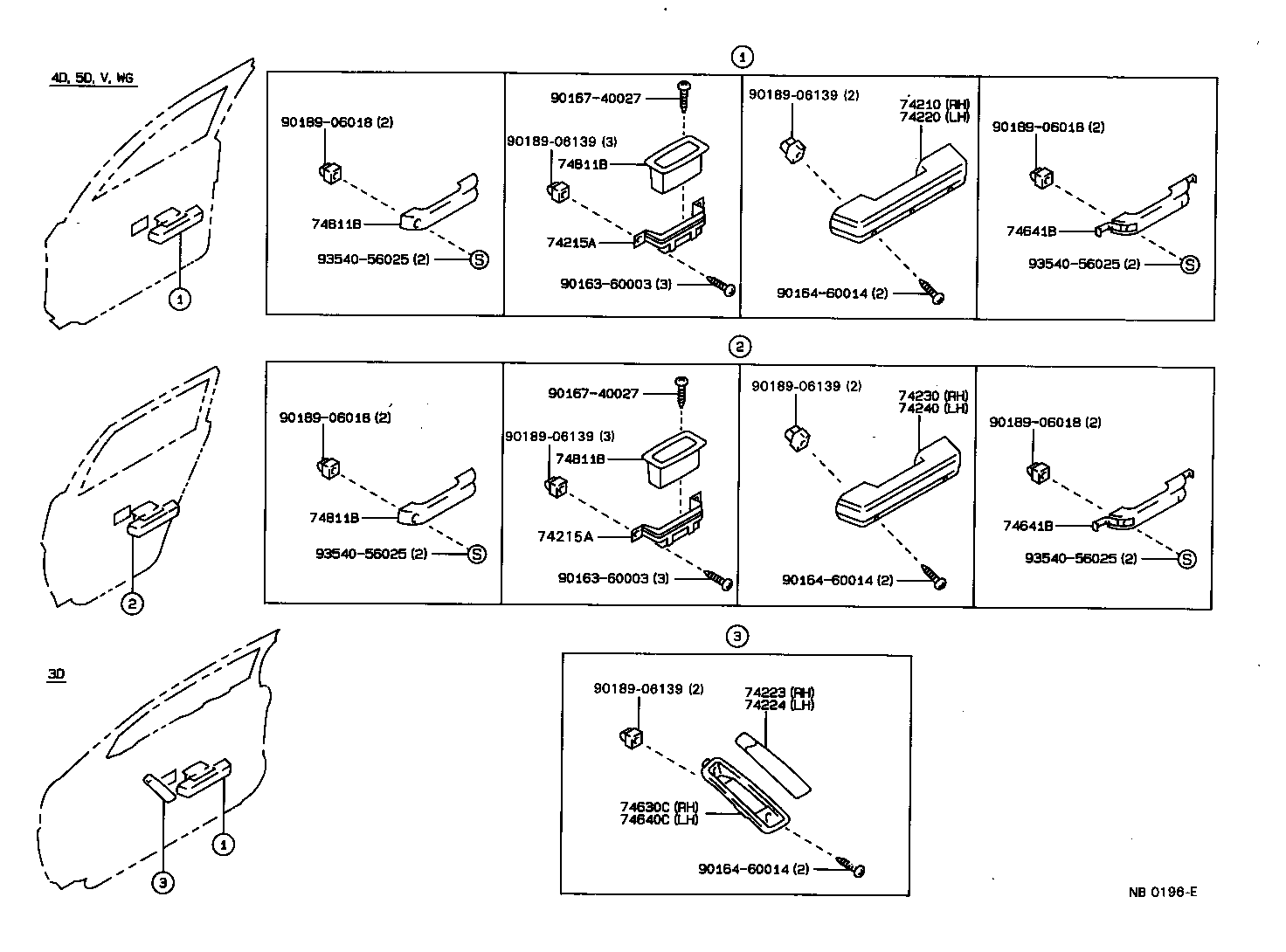

diagram 74210 74215A 74215A 74220 74223 74224 74230 74240 74630C 74640C 74641B 74641B 74811B 74811B 74811B 74811B 9016360003 9016360003 9016460014 9016460014 9016460014 9016740027 9016740027 9018906018 9018906018 9018906018 9018906018 9018906139 9018906139 9018906139 9018906139 9018906139 9354056025 9354056025 9354056025 9354056025
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-1211005

AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX)

DARK BEIGE,TRIM4#

 1
74210-1211003

CE97,EE97..GL;AE91,95,CE90,EE90..(4D,5D)..(DX,FXL,TX)

GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-1211003

CE97,EE97..GL;AE91,95,CE90,EE90..(4D,5D)..(DX,FXL,TX)

GRAY,TRIM1#

 1
74210-1211005

AE91,95,CE90,97,EE90,97..(4D,5D,WG)..(FXL,GL,TX)

DARK BEIGE,TRIM4#

 1
74230 - ARMREST ASSY, REAR, RH
74210-1211005

AE91,95,CE90,EE90..(4D,5D)..(FXL,TX,XE)

DARK BEIGE,TRIM4#

 1
74210-1211003

AE91,95,CE90,EE90..(4D,5D)..(DX,FXL,TX,XE)

GRAY,TRIM1#

 1
74240 - ARMREST ASSY, REAR, LH
74210-1211005

AE91,95,CE90,EE90..(4D,5D)..(FXL,TX,XE)

DARK BEIGE,TRIM4#

 1
74210-1211003

AE91,95,CE90,EE90..(4D,5D)..(DX,FXL,TX,XE)

GRAY,TRIM1#

 1
Common parts
90163-60003
90164-60014
90167-40027
90189-06018
90189-06139
93540-56025

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

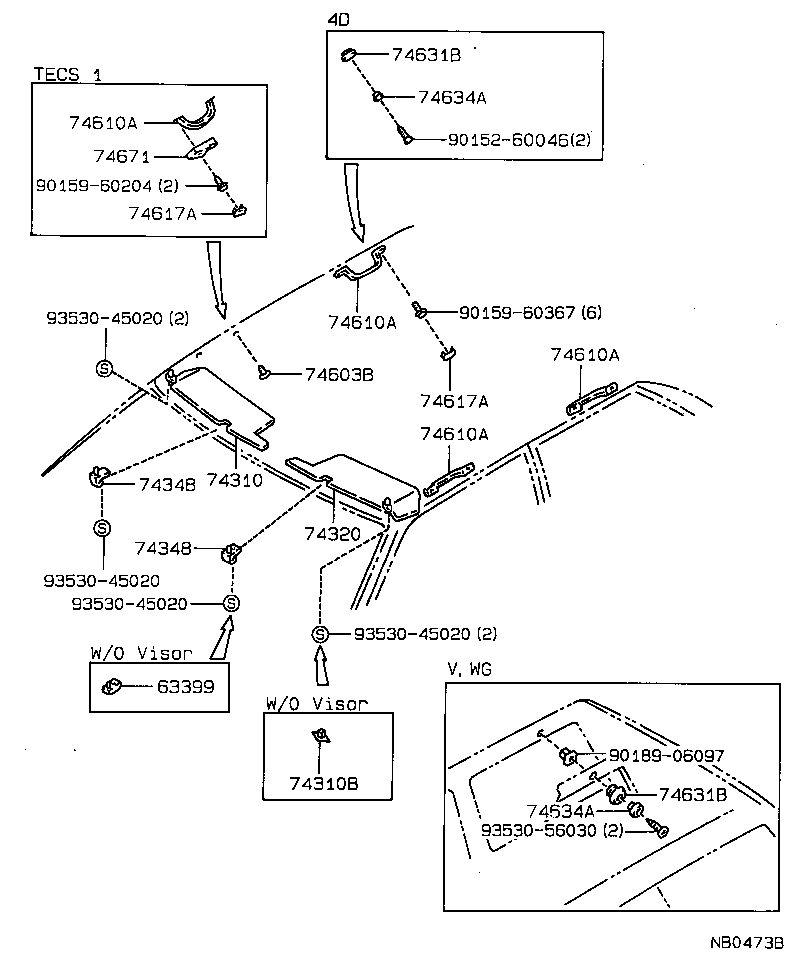

diagram 63399 74310 74310B 74320 74348 74348 74603B 74610A 74610A 74610A 74610A 74617A 74617A 74631B 74631B 74634A 74634A 74671 9015260046 9015960204 9015960367 9018906097 9353045020 9353045020 9353045020 9353045020 9353056030
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-1273005

AE91,EE90..TX

ｱﾘ(ﾊﾞﾆﾃｲ ﾐﾗ-),LIGHT BEIGE,TRIM4#

 1
74310-1288003

EE96..STD;EE96..DX..02S;AE91,95,EE90..DX,FXD,FXL,TX,XE

LIGHT GRAY,TRIM1#

 1
74310-1288005

EE96..DX..02S;AE91,95,EE90..FXD,FXL,TX,XE

LIGHT BEIGE,TRIM4#

 1
74310-1A16005

AE91,EE90..TX

ｱﾘ(ﾊﾞﾆﾃｲ ﾐﾗ-),LIGHT BEIGE,TRIM4#

 1
74310-1273003

AE91,EE90..TX

ｱﾘ(ﾊﾞﾆﾃｲ ﾐﾗ-),LIGHT GRAY,TRIM1#

 1
74310-1A15003

CE96,EE96..STD;CE96,EE96..DX..02S;AE91,95,CE90,EE90..DX,FXD,FXL,TX,XE

LIGHT GRAY,TRIM1#

 1
74310-1A15005

AE91,95,CE90,EE90..FXD,FXL,TX,XE

LIGHT BEIGE,TRIM4#

 1
74310-1A16003

AE91,EE90..TX

ｱﾘ(ﾊﾞﾆﾃｲ ﾐﾗ-),LIGHT GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-1255005

CE97,EE97,98;CE96,EE96..(DX,GL)..05S;AE91,95,CE90,EE90..FXD,FXL,TX,XE

LIGHT BEIGE,TRIM4#

 1
74320-1255003

CE96,EE96..(DX,GL)..05S;AE91,95,CE90,97,EE90,97,98..DX,FXD,FXL,G,GL,TX,XE

LIGHT GRAY,TRIM1#

 1
74320-12550E0

CE97,EE97,98;CE96,EE96..(DX,GL)..05S;AE91,95,CE90,EE90..FXD,FXL,TX,XE

LIGHT BEIGE,TRIM4#

 1
74348 - HOLDER, VISOR
74348-1202003

AE9#,CE90,EE90..3D,4D,5D

LIGHT GRAY,TRIM1#

 2
74348-1202005

AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 2
74348-1202005

CE97,EE97,98;CE96,EE96..(DX,GL)..05S;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 2
74348 - HOLDER, VISOR
74348-1202003

AE9#,CE90,EE90..3D,4D,5D

LIGHT GRAY,TRIM1#

 2
74348-1202005

AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 2
74348-1202005

CE97,EE97,98;CE96,EE96..(DX,GL)..05S;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 2
74603B - CLIP (FOR ASSIST GRIP)
90467-0604825

AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 2
90467-0604833

AE9#,CE90,EE90..3D,4D,5D

LIGHT GRAY,TRIM1#

 2
90467-06048B1

AE92,95,CE90;AE91,EE90..4D,5D;AE91..3D..(FXG,FXZI)

LIGHT GRAY,TRIM1#

 2
90467-06048E0

AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-1601005

CE97,EE97;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 3
74610-1601003

AE9#,CE90,95,97,EE90,97

LIGHT GRAY,TRIM1#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-1601005

CE97,EE97;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 3
74610-1601003

AE9#,CE90,95,97,EE90,97

LIGHT GRAY,TRIM1#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-1601005

CE97,EE97;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 3
74610-1601003

AE9#,CE90,95,97,EE90,97

LIGHT GRAY,TRIM1#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-1601005

CE97,EE97;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 3
74610-1601003

AE9#,CE90,95,97,EE90,97

LIGHT GRAY,TRIM1#

 3
74617A - PLUG, ASSIST GRIP
74617-1601020

CE97,EE97;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 6
74617-1601053

AE9#,CE90,95,97,EE90,97

LIGHT GRAY,TRIM1#

 6
74617A - PLUG, ASSIST GRIP
74617-1601020

CE97,EE97;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE

LIGHT BEIGE,TRIM4#

 6
74617-1601053

AE9#,CE90,95,97,EE90,97

LIGHT GRAY,TRIM1#

 6
Common parts
90152-60046
90159-60204
90159-60367
90189-06097
93530-45020
93530-56030
