AE91-AEHDU (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 5AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4D,5D,V,WG

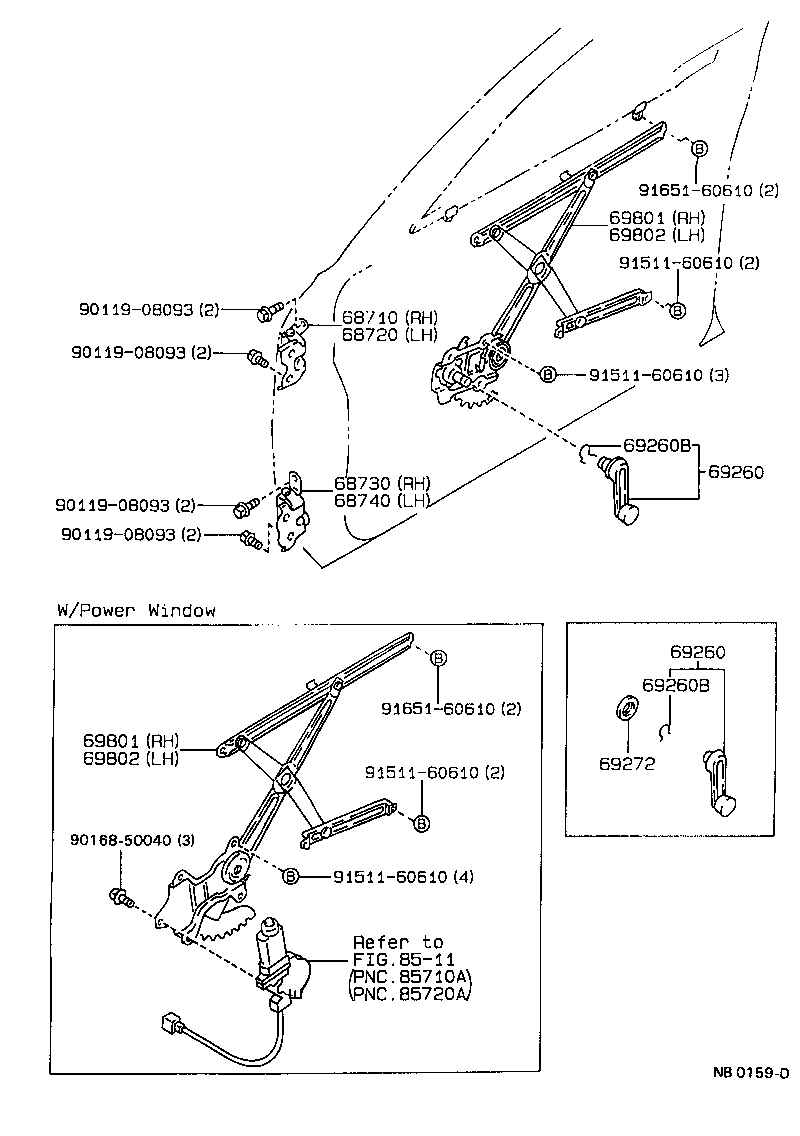

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260 69260B 69260B 69272 69801 69801 69802 69802 8511 9011908093 9011908093 9011908093 9011908093 9016850040 9151160610 9151160610 9151160610 9151160610 9165160610 9165160610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12100

AE9#,CE9#,EE9#..4D,5D,V,WG

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12100

AE9#,CE9#,EE9#..4D,5D,V,WG

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12060

AE9#,CE9#,EE9#..4D,5D,V,WG

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12060

AE9#,CE9#,EE9#..4D,5D,V,WG

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004055

CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXL,TX,XE

DARK BEIGE,TRIM4#

 2
69260-1004043

AE9#,CE9#,EE9#..CTD,DX,FXD,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE

GRAY,TRIM1#

 2
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004055

CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXL,TX,XE

DARK BEIGE,TRIM4#

 2
69260-1004043

AE9#,CE9#,EE9#..CTD,DX,FXD,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE

GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AE9#,CE9#,EE9#..CTD,DX,FXD,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AE9#,CE9#,EE9#..CTD,DX,FXD,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-16010

AE9#,CE9#,EE9#..CTD,DX,FXD,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12290

AE91..4D..CBR

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12290

AE91..4D..CBR

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12290

AE91..4D..CBR

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12290

AE91..4D..CBR

 1
Common parts
90119-08093
90168-50040
91511-60610
91651-60610
Linked diagrams
8511
