AE91-AEHBU (1988)
Toyota Corolla

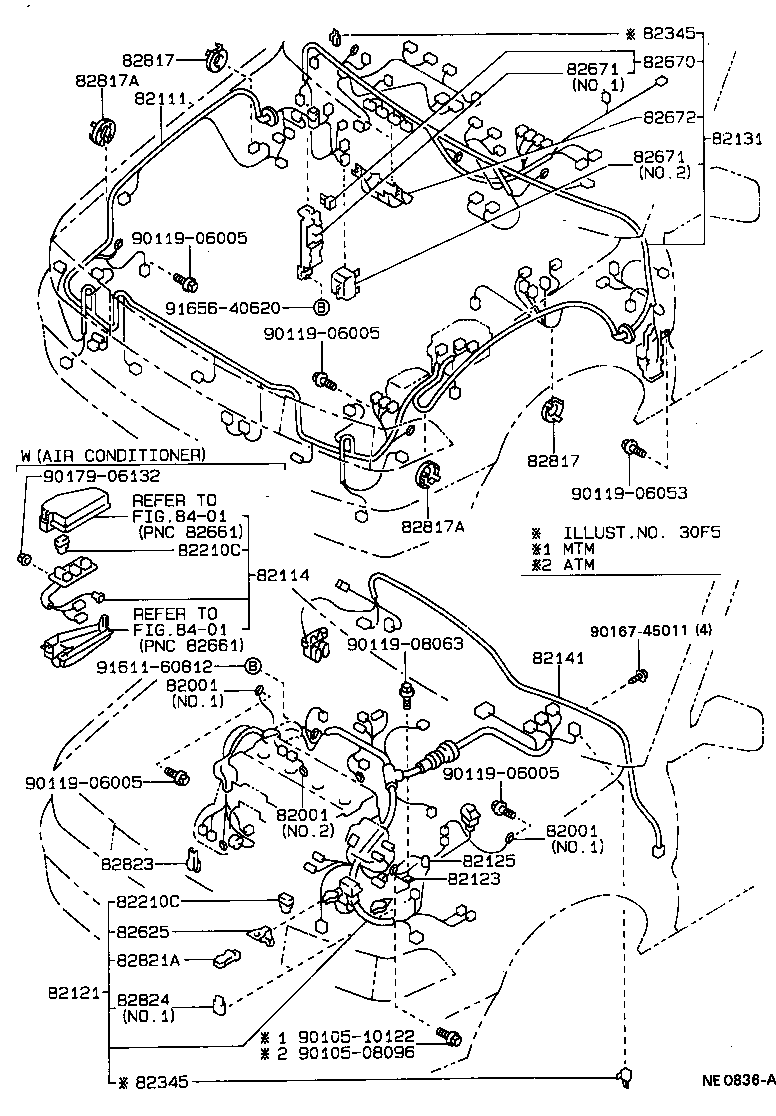

ILLUST NO. 1 OF 5(8705-8905)AE91,95..CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE91 NO.2 |
1 | ||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1A200 |
AE91,95..DX,TX,XE |
1 | ||
| 82111-1A210 |
AE95..XE;AE91..4F..TX;AE91..4D..3FC ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓｺﾝ ﾐﾗ-) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-12040 |
AE9#,CE9#,EE9# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1A150 |
AE91..ATM..CBR |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12140 |
AE91,EE90,96,98..3FC |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1A590 |
AE91..4D..(3FC,4F) |
1 | ||
| 82131-1A593 |
AE91..4D..(3FC,4F) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
AE91,95..ATM..CBR NO.6 |
1 | ||
| 82345-12050 |
EE96..GL;EE96..02S;AE91,95..ATM..CBR;AE92,EE90,97,98..3FC,4F,5F NO.4 |
1 | ||
| 82345-12010 |
AE91..CBR NO.1 |
1 | ||
| 82345-32020 |
AE91,95 NO.8 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
AE91,95..ATM..CBR NO.6 |
1 | ||
| 82345-12050 |
EE96..GL;EE96..02S;AE91,95..ATM..CBR;AE92,EE90,97,98..3FC,4F,5F NO.4 |
1 | ||
| 82345-12010 |
AE91..CBR NO.1 |
1 | ||
| 82345-32020 |
AE91,95 NO.8 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12070 |
AE91,CE90,EE90..DX,FXD,FXL,TX,XE NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12070 |
AE91,CE90,EE90..DX,FXD,FXL,TX,XE NO.2 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12080 |
AE9#,CE9#,EE9# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE9#,EE9# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE9#,EE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE9#,EE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE9#,EE9# |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AE9#,EE9# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
AE9#,CE9#,EE9# NO.1 |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08063 | ||||
| 90167-45011 | ||||
| 90179-06132 | ||||
| 91611-60812 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
