AE91-AEHBU (1988)
Toyota Corolla
Production
May 1988
-
May 1989
Engine
5AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )4AFE,5AF#..ATM

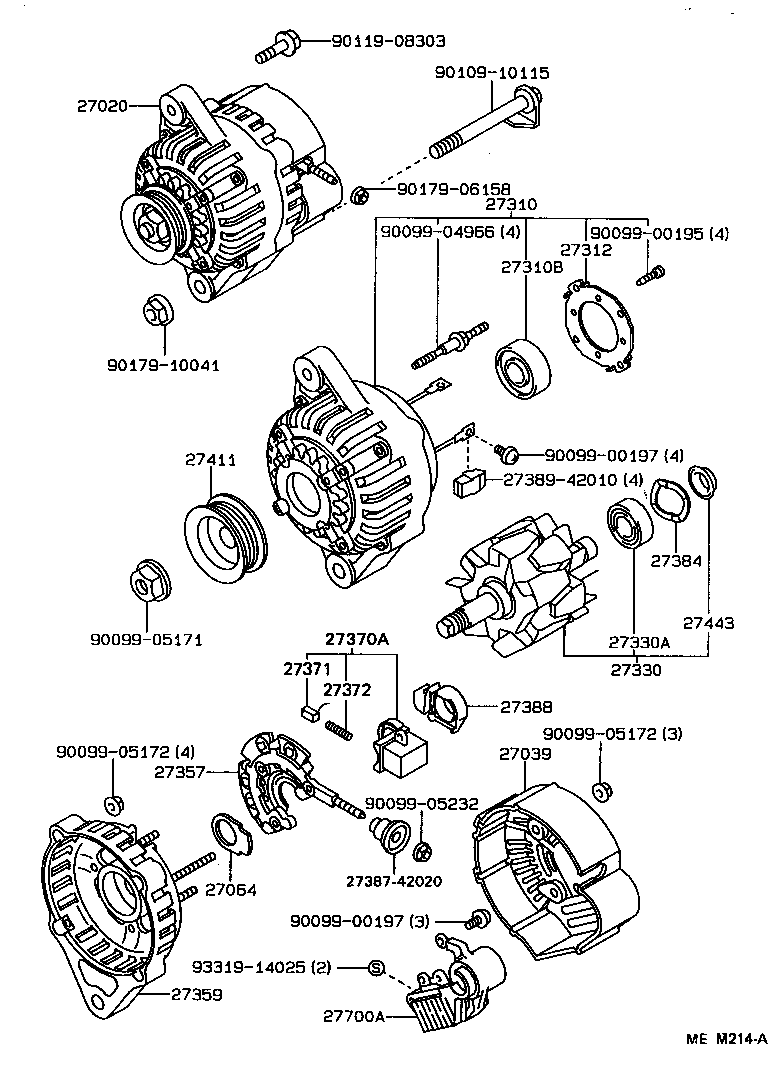

Click highlighted areas on diagram
12V 70A,80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-16160 |
4AF,5AF..AE91,95 12V 60A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
4A#,5AF#..AE9# |
1 | ||
| 27039-72010 |
4AF,5AF..AE91,95;4AGE,5AFE..AE91,92..5F |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-16190 |
4AF,5AF..AE91,95 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
4AF,5AF..AE91,95;4AGE,5AFE..AE91,92..5F |
1 | ||
| 90099-10178 |
4A#,5AF#..AE9# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
4A#,5AF#..AE9# |
1 | ||
| 27312-70200 |
4AF,5AF..AE91,95;4AGE,5AFE..AE91,92..5F |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
5AF..AE91 |
1 | ||
| 27330-72101 |
4AF,5AF..AE91,95;4AGE,5AFE..AE91,92..5F |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4A#,5AF#..AE9# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63060 |
4AF,5AF..AE91,95 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16151 |
4AF,5AF#..AE91,95 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
4AF,5AF#..AE91,95 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
4A#,5AF#,2E,3E..AE9#,EE9# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
4A#,5AF#,2E,3E..AE9#,EE9# |
2 | ||
| 27372-72100 |
4AGE,5AFE..AE91,92..5F;4AF,5AF,2E,3E..AE91,95,EE9# |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16190 |
4AF,5AF..AE91,95 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4AGE,4AF#,5AF#,2E,3E..AE9#,EE9# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
4AF,5AF#..AE91,95 |
1 | ||
| 27700-63021 |
4AF,5AF#..AE91,95 |
1 | ||
| Common parts | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90109-10115 | ||||
| 90119-08303 | ||||
| 90179-06158 | ||||
| 90179-10041 | ||||
| 93319-14025 | ||||
