AE91-AEHBU (1988)

Toyota Corolla

Production May 1988 - May 1989
Engine 5AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705-8908)4AF,5AF

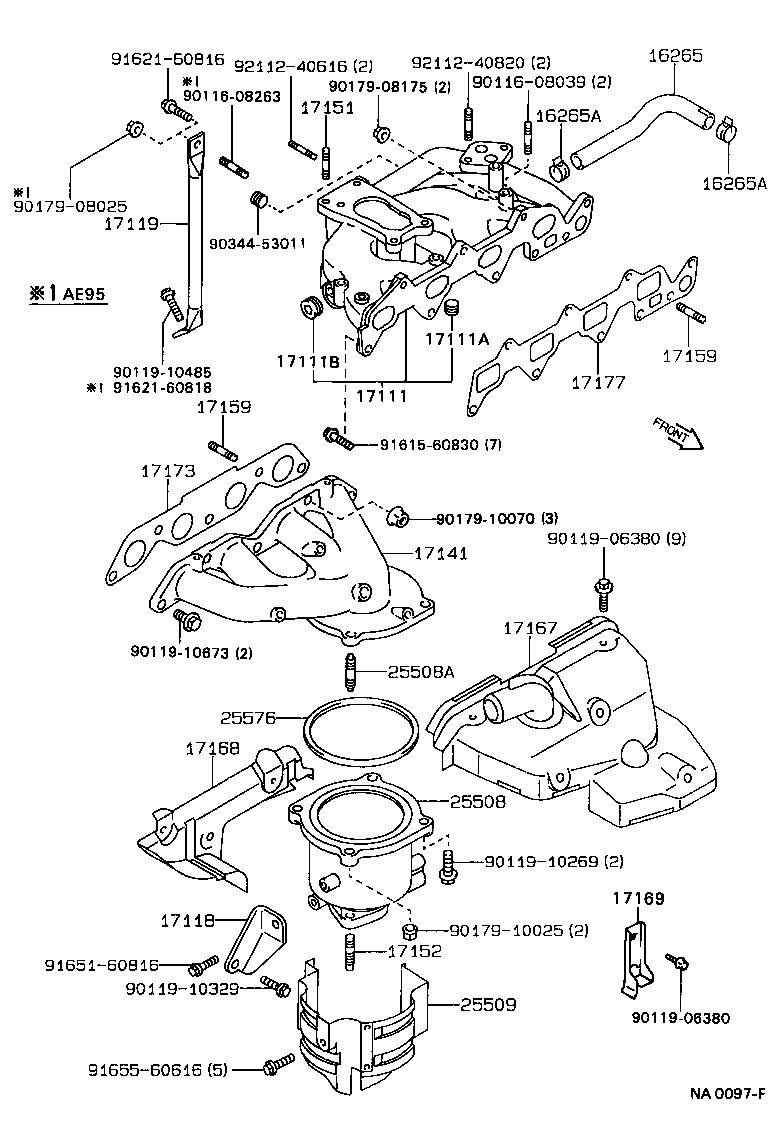

Click highlighted areas on diagram

diagram 16265 16265A 16265A 17111 17111A 17111B 17118 17119 17141 17151 17152 17159 17159 17167 17168 17169 17173 17177 25508 25508A 25509 25576 9011608039 9011608263 9011906380 9011906380 9011910269 9011910329 9011910485 9011910673 9017908025 9017908175 9017910025 9017910070 9034453011 9161560830 9162160816 9162160818 9165160816 9165560616 9211240616 9211240820
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
16265-15020

4AF,5AF..AE91,95

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

4AF,5AF..AE91,95

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

4AF,5AF..AE91,95

 2
17111 - MANIFOLD, INTAKE
17101-15020

4AF,5AF..AE91,95

 1
17111A - PLUG, NO.1
90344-53011

4AF,5AF..AE91,95

 1
17111B - PLUG, NO.2
90344-54003

4AF,5AF..AE91,95

 1
17118 - STAY, MANIFOLD
17118-15070

4AF#,5AF,5AFE..AE91,95

 1
17119 - STAY, MANIFOLD, NO.2
17139-15020

5AF..AE91

 1
17141 - MANIFOLD, EXHAUST
17141-15120

4AF#,5AF,5AFE..AE91,95

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92112-40832

4AF,5AF..AE91,95

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

4AF,5AF#..AE91,95

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

4AF#,5AF#..AE91,95

EXHAUST MANIFOLD

 2
92112-60825

4AFE..AE95..4FC;4AF,5AF#..AE91,95

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

4AF#,5AF#..AE91,95

EXHAUST MANIFOLD

 2
92112-60825

4AFE..AE95..4FC;4AF,5AF#..AE91,95

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-15010

4AF,5AF..AE91,95

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-15010

4AF#,5AF,5AFE..AE91,95

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15010

4AF#,5AF#..AE91,95

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15020

4AF,5AF..AE91,95

 1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-15020

4AF,5AFE,5AF..AE91,95

 1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-10017

4AF,5AF#..AE91,95

 2
25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25509-15020

4AF,5AF#..AE91,95

 1
25576 - GASKET, MANIFOLD CONVERTER
25576-15010

4AF#,5AF,5AFE..AE91,95

 1
Common parts
90116-08039
90116-08263
90119-06380
90119-10269
90119-10329
90119-10485
90119-10673
90179-08025
90179-08175
90179-10025
90179-10070
90344-53011
91615-60830
91621-60816
91621-60818
91651-60816
91655-60616
92112-40616
92112-40820
