AE82-ELPSE (1983)
Toyota Corolla

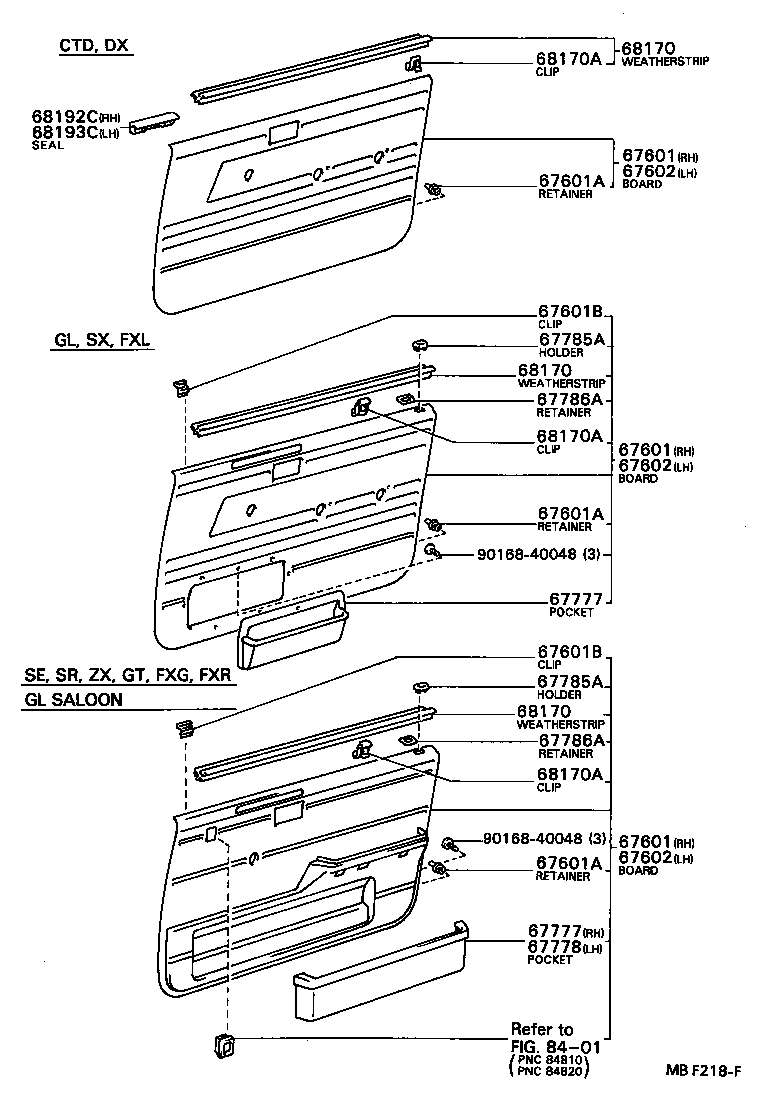

ILLUST NO. 2 OF 2(8305-8505)4D,5D2,5D3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1221004 |
AE81,82..SX BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1221002 |
AE81,82..SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1221003 |
AE81,82..SX GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1245003 |
AE81,82..SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1245002 |
AE81,82..SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1245004 |
AE81,82..SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1252102 |
AE81,82..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1254102 |
AE81,82..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1252104 |
AE81,82..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1254104 |
AE81,82..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1252103 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1254103 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1252106 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1254106 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1221004 |
AE81,82..SX BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1221002 |
AE81,82..SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1221003 |
AE81,82..SX GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1245003 |
AE81,82..SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1245002 |
AE81,82..SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1245004 |
AE81,82..SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1252102 |
AE81,82..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1254102 |
AE81,82..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1252104 |
AE81,82..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1254104 |
AE81,82..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1252103 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1254103 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1252106 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1254106 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1221004 |
AE81,82..SX BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1221002 |
AE81,82..SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1221003 |
AE81,82..SX GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1245003 |
AE81,82..SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1245002 |
AE81,82..SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1245004 |
AE81,82..SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1252102 |
AE81,82..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1254102 |
AE81,82..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1252104 |
AE81,82..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1254104 |
AE81,82..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1252103 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1254103 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1252106 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1254106 |
AE81,82..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
34 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
34 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
34 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 67774-10010 |
AE8#,CE80..GL,SE,SX,ZX |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 67774-10010 |
AE8#,CE80..GL,SE,SX,ZX |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A17002 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A17004 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A17003 |
AE8#,CE80..GL,SX GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A30004 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A30002 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A30003 |
AE8#,CE80..GL,SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A17102 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A17104 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A30102 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A30104 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A17103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A30103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A17106 |
AE8#..(4D,5D2,5D3)..(FXL,GL,SX) BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1A30106 |
AE8#..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A17002 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A17004 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A17003 |
AE8#,CE80..GL,SX GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A30004 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A30002 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A30003 |
AE8#,CE80..GL,SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A17102 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A17104 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A30102 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A30104 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A17103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A30103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A17106 |
AE8#..(4D,5D2,5D3)..(FXL,GL,SX) BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1A30106 |
AE8#..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A17002 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A17004 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A17003 |
AE8#,CE80..GL,SX GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A30004 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A30002 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A30003 |
AE8#,CE80..GL,SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A17102 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A17104 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A30102 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A30104 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A17103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A30103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A17106 |
AE8#..(4D,5D2,5D3)..(FXL,GL,SX) BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1A30106 |
AE8#..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1202003 |
AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,SX,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 67777-1202004 |
AE81,82,CE80..SE,SR,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 67777-1203002 |
AE81,82,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67777-1202002 |
AE81,82,CE80..SE,SR,ZX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1202003 |
AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,SX,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 67777-1202004 |
AE81,82,CE80..SE,SR,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 67777-1203002 |
AE81,82,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67777-1202002 |
AE81,82,CE80..SE,SR,ZX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-1202004 |
AE81,82,CE80..SE,SR,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 67777-1202002 |
AE81,82,CE80..SE,SR,ZX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67777-1202003 |
AE81,82,CE80..FXG,FXR,FXT,GT,SE,SR,SX,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-1201001 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) BLACK,BLACK |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-1201001 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) BLACK,BLACK |
2 | ||
| 67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67786-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
2 | ||
| 67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67786-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68171-12080 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68171-12080 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68171-12080 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
12 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
12 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
12 | ||
| Common parts | ||||
| 90168-40048 | ||||
| Linked diagrams | ||||
| 8401 | ||||

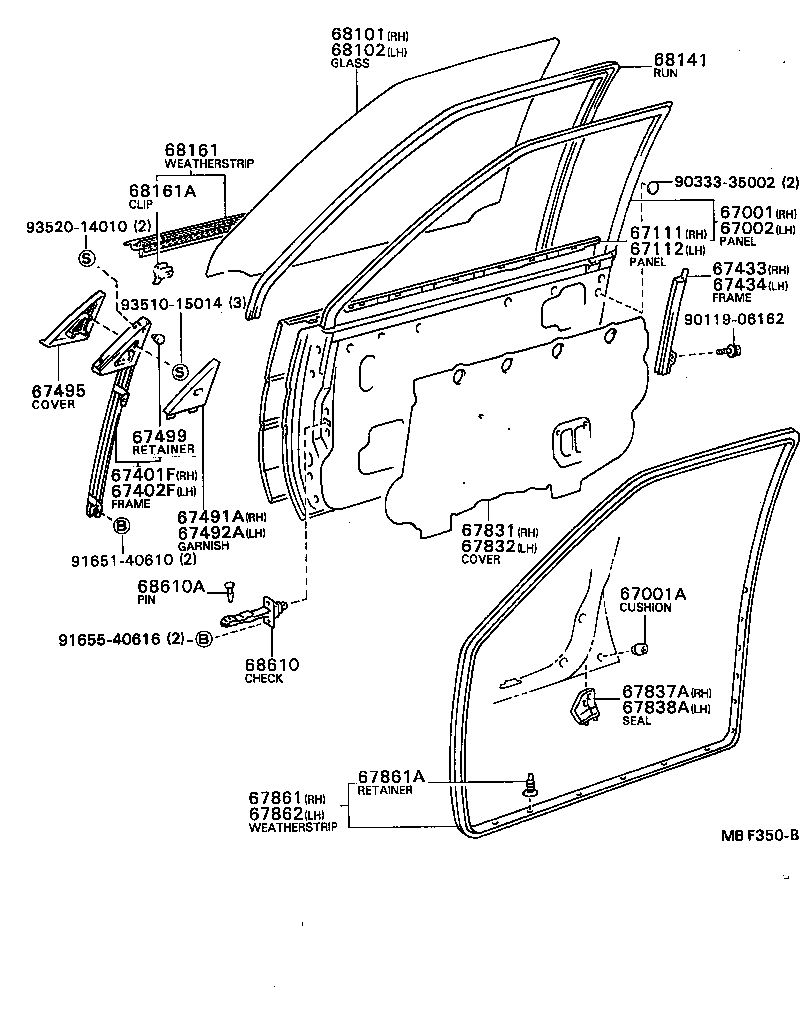

ILLUST NO. 1 OF 2(8305- )4D,5D2,5D3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-12810 |
AE81,82,CE80..SX |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
AE8#,CE80,EE80..4D,5D2,5D3 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-12790 |
AE81,82,CE80..SX |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12380 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12370 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12210 |
AE81,82,CE80..5D3 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12200 |
AE81,82,CE80..5D3 |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67403-12050 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67404-12050 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12100 |
AE8#,CE80..4D,5D2,5D3 W/LEVER HOLE |
1 | ||
| 67491-12120 |
AE81,82,CE80..5D3 W/LEVER HOLE |
1 | ||
| 67491-12110 |
AE81,82,CE80..5D3 W/O LEVER HOLE |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12100 |
AE8#,CE80..4D,5D2,5D3 W/LEVER HOLE |
1 | ||
| 67492-12110 |
AE81,82,CE80..5D3 W/O LEVER HOLE |
1 | ||
| 67492-12120 |
AE81,82,CE80..5D3 W/LEVER HOLE |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67495-12070 |
AE81,82,CE80..5D3 RH |
1 | ||
| 67496-12070 |
AE81,82,CE80..5D3 LH |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-30010 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12290 |
AE80,82,CE80 COLD SPEC |
1 | ||
| 67831-12270 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12140 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 67831-12290 |
AE80,82,CE80 COLD SPEC |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-12030 |
AE80,82,CE80 COLD SPEC |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-12020 |
AE80,82,CE80 COLD SPEC |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12530 |
AE81,82,CE80..5D3 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AE8#,CE80,EE80 |
40 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12510 |
AE81,82,CE80..5D3 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-12570 |
AE81,82,CE80..5D3 *TT,T=3.5 |
1 | ||
| 68111-12580 |
AE81,82,CE80..5D3 *TEM,T=3.5,BRONZE |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-12570 |
AE81,82,CE80..5D3 *TT,T=3.5 |
1 | ||
| 68112-12580 |
AE81,82,CE80..5D3 *TEM,T=3.5,BRONZE |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-12210 |
AE81,82,CE80..5D3 |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12030 |
AE8#,CE80,EE80 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
2 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90333-35002 | ||||
| 91651-40610 | ||||
| 91655-40616 | ||||
| 93510-15014 | ||||
| 93520-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
