AE82-ELPSE (1983)

Toyota Corolla

Production May 1983 - May 1985
Engine 4AELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4AELU

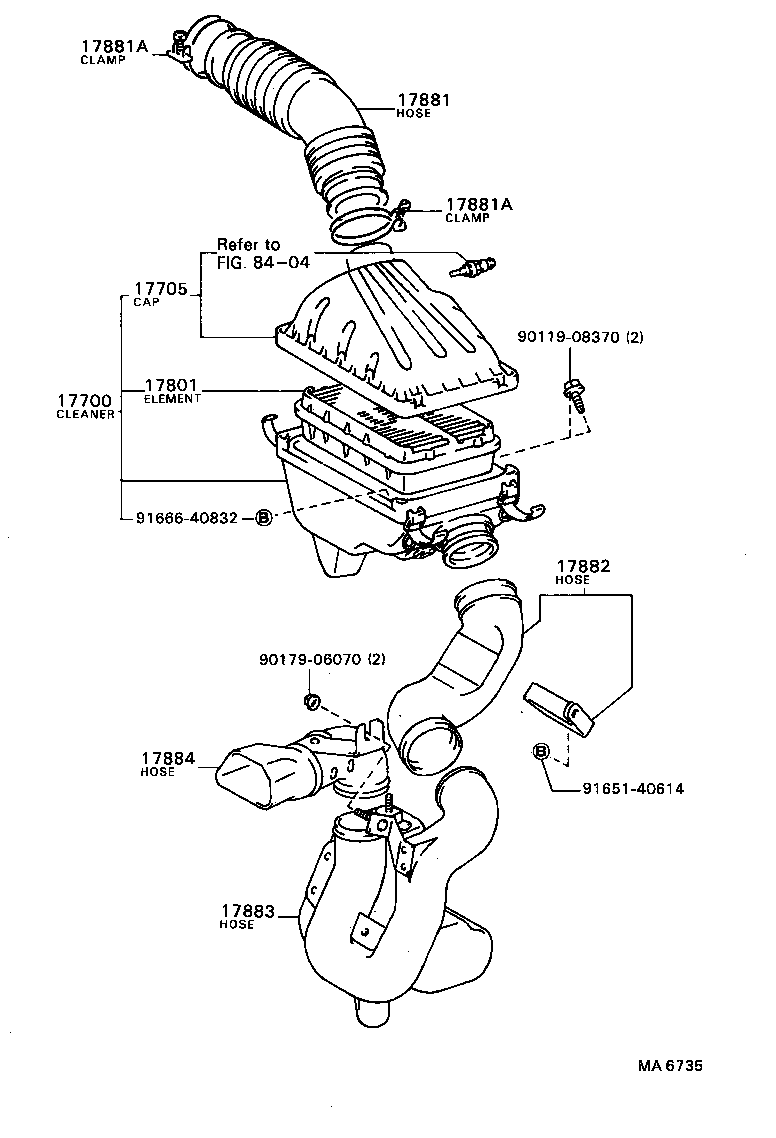

Click highlighted areas on diagram

diagram 17700 17705 17801 17881 17881A 17881A 17882 17883 17884 8404 9011908370 9017906070 9165140614 9166640832
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-16080

4AELU..AE82

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16010

4AELU..AE82

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

4A#..AE82

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-16010

4AELU..AE82

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4AELU..AE82

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4AELU..AE82

 2
17882 - HOSE, AIR CLEANER, NO.2
17881-12050

4AELU..AE82

 1
17883 - HOSE, AIR CLEANER, NO.3
17880-12030

4AELU..AE82

 1
17884 - HOSE, AIR CLEANER, NO.4
17884-12010

4AELU..AE82

 1
Common parts
90119-08370
90179-06070
91651-40614
91666-40832
Linked diagrams
8404
